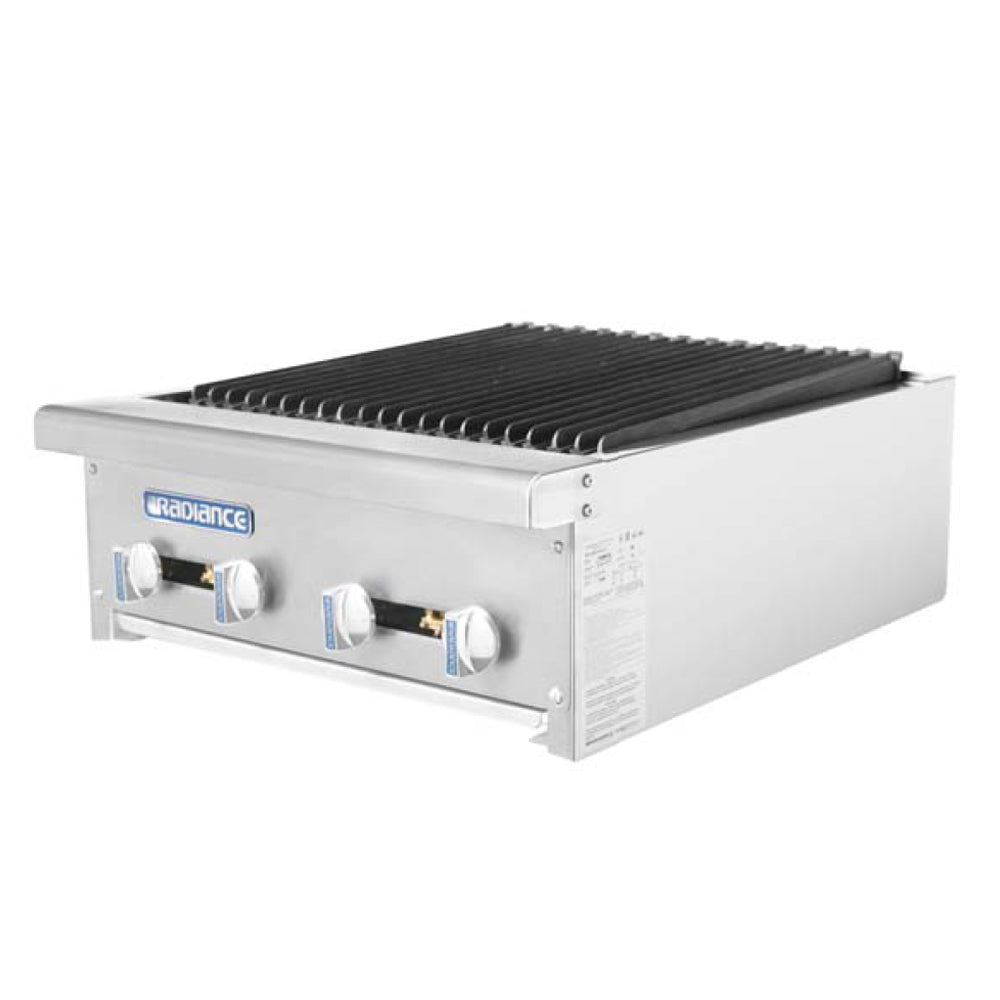

The Radiance TARB-24 countertop charbroiler combines four manually controlled burners with heavy-duty cast-iron radiants and reversible grates. Each stainless steel straight burner supplies 15,000 BTU/hr, for 60,000 BTU/hr across the 24-inch-wide broiler.

In Stock
Shipping calculated at checkout.

Product overview

The Radiance TARB-24 countertop charbroiler combines four manually controlled burners with heavy-duty cast-iron radiants and reversible grates. Each stainless steel straight burner supplies 15,000 BTU/hr, for 60,000 BTU/hr across the 24-inch-wide broiler.

  • 24-inch width: Countertop radiant charbroiler.
  • Four burners: Manual controls and an adjustable standing pilot for each burner.
  • Cast-iron cooking surface: Reversible three-bar grates with grease runners.

Cooking surface and construction

Heavy-duty cast-iron radiants sit above stainless steel straight burners spaced every 6 inches of broiler width. The welded heat box and radiant bracket support the cooking assembly. Reversible three-bar cast-iron grates have grease runners, and a removable full-width grease pan collects drippings.

The 16-gauge stainless steel front plate and wrap are paired with stainless steel sides and a 4-inch front top ledge. A bull-nose stainless steel front extension and heat-resistant PPS (polyphenylene sulfide) on-off knobs finish the front. Stainless steel pilots provide an adjustable standing flame for each burner.

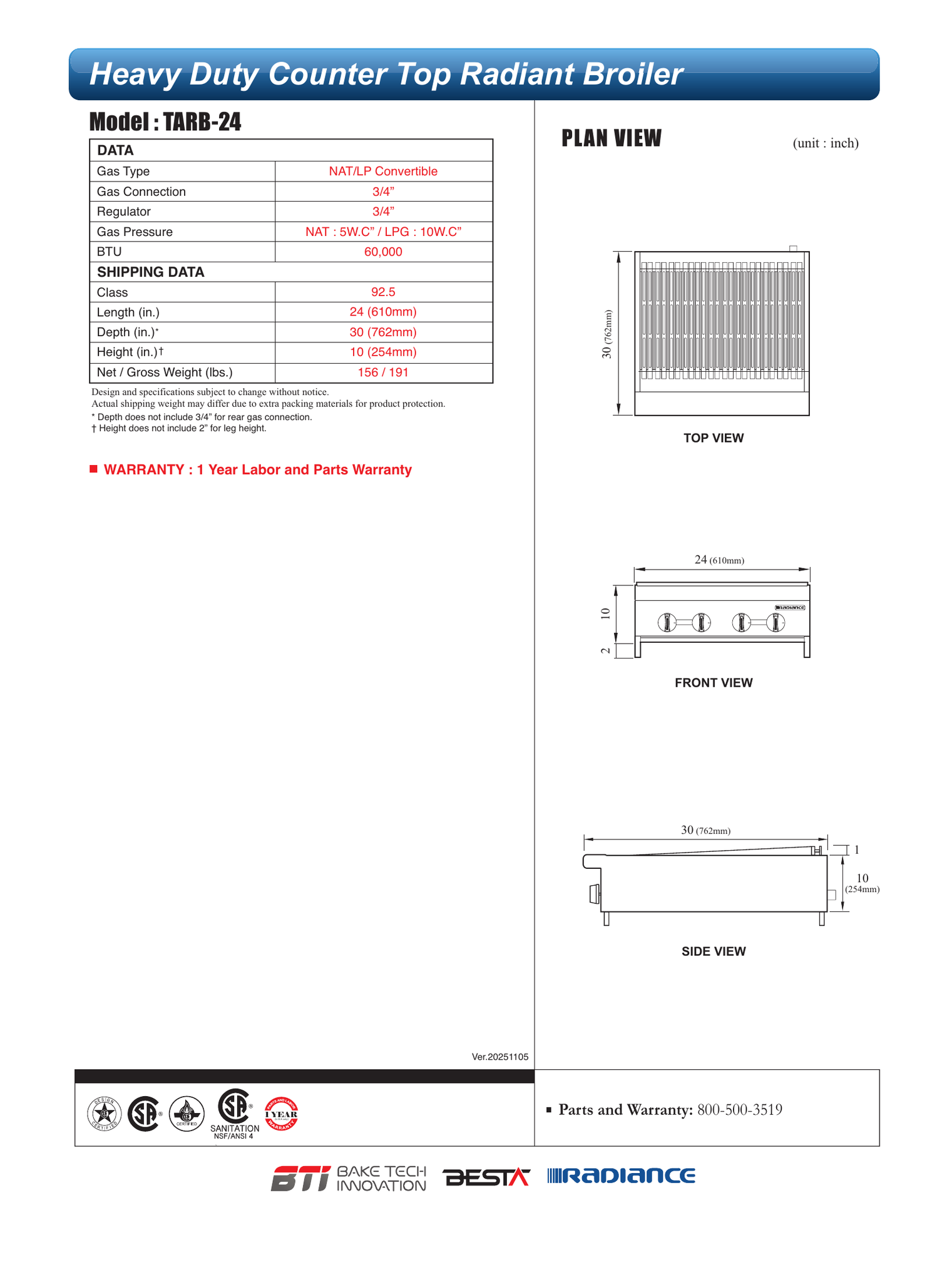

Specifications

Model TARB-24
Burners / total input 4 / 60,000 BTU/hr
Input per burner 15,000 BTU/hr
Width 24 inches
Body depth 30 inches, excluding the ¾-inch rear gas connection
Body height 10 inches, excluding the included 2-inch legs
Gas connection ¾-inch rear connection; gas pressure regulator included
Gas supply Natural gas or LP; match the delivered rating plate
Operating gas pressure Natural gas: 5 inches water column; LP: 10 inches water column
Net / crated weight 156 / 191 lb

Installation and gas connection

Install only on a noncombustible countertop. Maintain 8 inches of clearance at the back and sides from combustible materials. The noncombustible clearance is 0 inches, but combustion air, ventilation and service access must remain unobstructed. Allow for the rear gas connection and leg height when planning the installation.

Have qualified gas-installation personnel install, start up and adjust the broiler to applicable local codes. Match the fuel type and supply to the rating plate; any conversion requires a qualified service professional. Use the supplied regulator and a user-supplied manual shutoff valve upstream of the appliance. Never connect an unregulated gas supply or use a flame to check for leaks.

During gas-system pressure testing above ½ psi, disconnect the appliance and its individual shutoff valve from the piping. At ½ psi or below, isolate the appliance by closing its manual shutoff valve. Follow the installation manual for the complete connection and testing procedure.

Operation and cleaning

Keep flammable materials away from the broiler and maintain ventilation whenever it operates. Follow the manual’s pilot-lighting and shutdown procedure. If a burner fails to light, turn its valve off and wait at least five minutes before attempting the prescribed restart. If gas odor is present, shut the equipment down at the main shutoff valve and contact the gas supplier; do not attempt to relight it.

Let the unit cool and turn off the manual gas shutoff valve before cleaning or maintenance. Check the grease pan frequently, emptying and washing it as needed. Clean grates and radiants with mild dishwashing detergent or baking soda, hot water and a wire brush. Wipe exterior surfaces with mild detergent and hot water, using stainless steel cleaner periodically. Do not use cleaners containing acid, mineral spirits or xylene.

At least weekly, inspect the surrounding area and combustion-air openings for obstructions or combustible materials. Have a qualified service person perform burner maintenance and repairs; do not service the unit while hot or operating.

Included equipment and options

The gas pressure regulator and 2-inch stainless steel legs are included. Optional 4-inch stainless steel legs are available separately; account for the resulting installed height when selecting them.

Warning: This product can expose you to chemicals including Nickel and Chromium Hexavalent Compounds, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

Warranty

The limited warranty for Radiance countertop cooking equipment is one year from original installation or 15 months from shipment, whichever comes first. Coverage applies to the original purchaser, is subject to the manufacturer’s terms and requires authorized service. Review the warranty document for geographic limits, exclusions and service-travel conditions.
