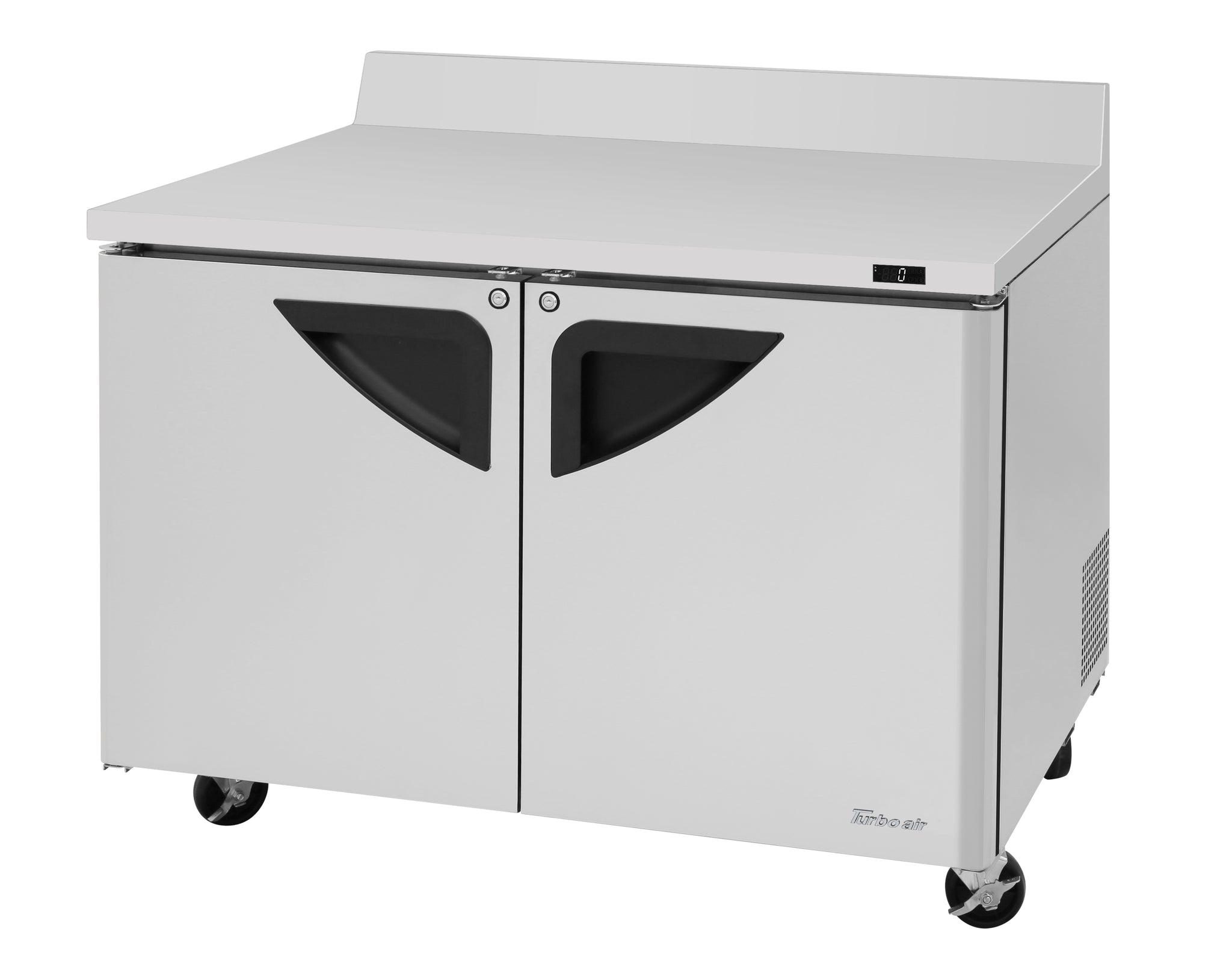

Turbo Air Super Deluxe Worktop Freezer, 2 Section, 2 Doors, 48-1/4"W
TWF-48SD-N
Product overview
The Turbo Air TWF-48SD-N combines a stainless-steel worktop with 12 cu. ft. of frozen-food storage behind 2 solid doors. A digital temperature display helps monitor the cabinet, and interior LED lighting illuminates the contents.
- 12 cu. ft. — Frozen-food storage.
- −10 to 0°F — Freezer holding temperature.
- 2 stainless-steel shelves — Solid-door storage with recessed handles.
Features and specifications
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Digital temperature control & monitor system
Keep food products safe by maintaining constant temperatures. External digital display allows for easy monitoring.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE's Energy Conservation Standards in 2017 and to use EPA's SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Sturdy, clean stainless steel shelving
Shelves are the most important part of cleanliness as they come in direct contact with food. After a while, PVC coated wire shelves may peel, rust and lead to unsanitary conditions. Only the Turbo Air Super Deluxe series uniquely provides stainless steel shelving.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Stainless steel cabinet construction
The Turbo Air Super Deluxe model boasts a stainless steel interior and exterior (galvanized steel back & bottom). It guarantees the utmost in cleanliness and long product life. The Super Deluxe adds a touch of style to the most refined setting.
Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. These features along with self-closing doors make this the ultimate choice in customer convenience. ABS sheet door liners resist water condensation with thermal efficiency.
Magnetic door gaskets
Magnetic door gaskets are of one-piece construction, removable without tools for ease of cleaning and replacement.
LED interior lighting & fan control
Freezer holds -10°F ~ 0°F for the best in frozen food preservation
Standard features:
- Anti-corrosion coated evaporator
- Self-contained system
- Standard 4" dia. swivel casters with locks on the front set
- Door locks listed as standard on the current exact-model cut sheet
Optional accessories:
- 2.5" caster, ½" diameter & 13 TPI: 30265H0100 (non-brake), 30265H0200 (w/ brake)
- 5" caster, ½" diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
- 6" ABS plastic leg: 30221M0200
- 6" stainless steel leg: 30221M0600
- Additional stainless steel shelf: M727800100
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and
Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to www.p65warnings.ca.gov.
- (2) door with recessed handles
- (2) stainless steel shelves
- 4" casters
- Anti-corrosion coated evaporator
- Self-contained
- 12 cu.ft.
- 115v/60/1, NEMA 5-15P
- 2.8 Amps on the current cut sheet and manual; the manufacturer product page lists 3.1 Amps. Confirm the supplied-unit nameplate. 1/3 HP.
- ETL-Sanitation, cETLus
- Published manufacturer warranty: 5-year parts and labor; 7-year compressor, subject to current manufacturer terms, sale-date eligibility, geography and exclusions. Confirm coverage for the supplied unit.
- Model# TWF-48SD-N
Installation and daily use
Install indoors on a firm, level floor away from heat and splashing water. Leave at least five inches behind the cabinet for airflow and keep ventilation openings clear. Lock the front wheels during use. Connect to a dedicated grounded outlet with the plug accessible; do not use extension cords or adapter plugs.
Run the freezer for 24 hours before loading. Keep stored food clear of the rear interior air inlet and do not let loads overhang the shelf edges. After unplugging, wait at least five minutes before restarting. Do not store glass bottles or other breakable glass containers in the freezer, and avoid touching frozen surfaces with wet hands.
Cleaning and service
Disconnect power before cleaning. Use warm soapy water and a nonabrasive cloth; do not spray the cabinet. Empty the drain pan periodically and place its hose back in the pan. The self-cleaning condenser brushes away dust but may not remove grease; arrange a professional nitrogen blowout once or twice a year.
R-290 refrigerant is flammable. Keep the refrigerant circuit intact and use trained service personnel for repairs. Do not use mechanical tools to accelerate defrosting or unapproved electrical appliances inside the cabinet. Follow the installation and operation manual for servicing and disposal.
