48" 8-Burner Hot Plate

TAHP48-8

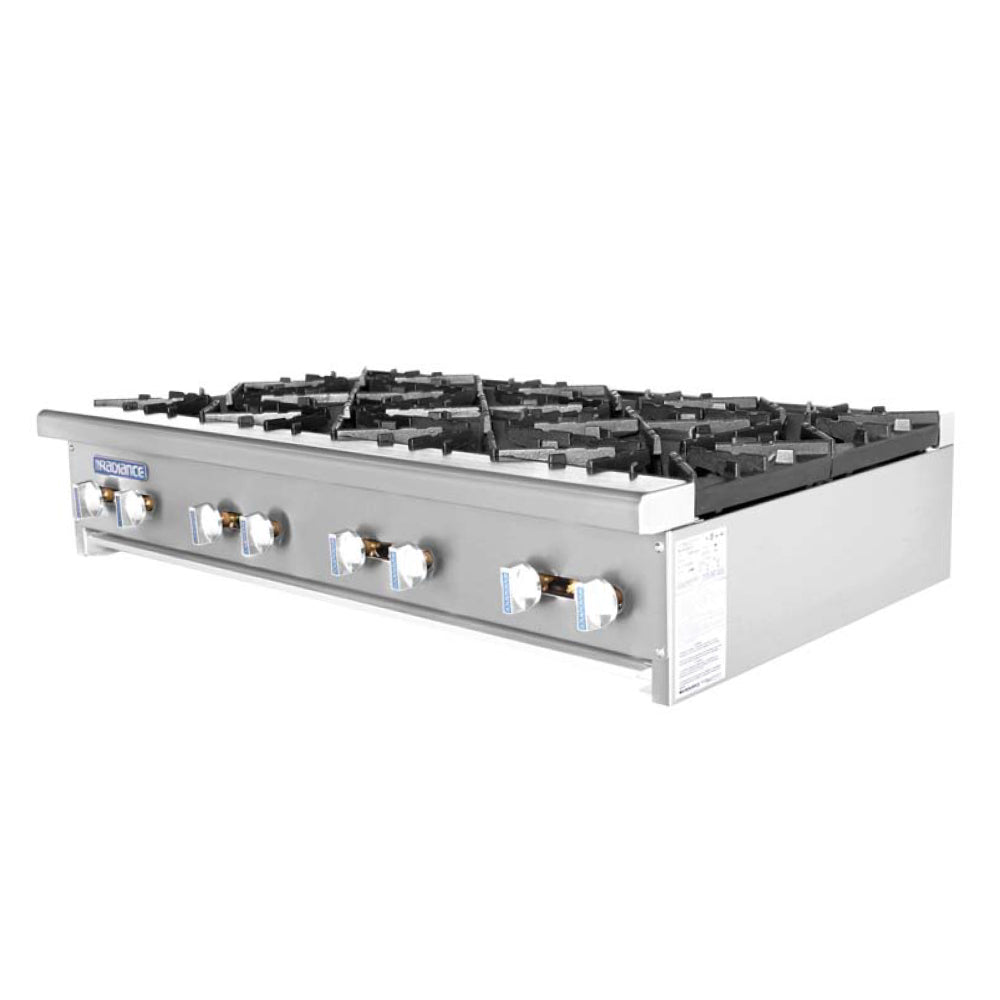

Radiance TAHP-48-8 countertop gas hot plate with 8 burners, manual knobs and cast-iron grates
TAHP48-8 original manufacturer technical drawing page with installation dimensions and plan views.

Turbo Air Radiance TAHP-48-8 48-inch countertop gas hotplate with 8 manually controlled burners and 256,000 BTU/hr total input. Removable cast-iron grates, lift-off burners and full-width grease pan. Includes a gas regulator and 2-inch stainless-steel legs. Requires qualified gas installation on a noncombustible countertop.

In Stock
Shipping calculated at checkout.

Product overview

Turbo Air Radiance Hotplate 48"W, manual controls, removable grease pan, 16 ga. stainless steel front plate and wrap, heavy duty removable cast-iron, grooved top design, stainless steel pilots, bullnose stainless steel front extension, heat resistant on-off knob, 2" stainless steel standard legs, regulator included, 256,000 BTU, CSA

  • 8 independently controlled burners: 256,000 BTU/hr total gas input.
  • 48-inch width: Countertop format with included 2-inch legs.
  • Removable cooking components: Lift-off two-piece burners and 12 × 12-inch cast-iron grates.

Cooking surface

The grooved grates let pots slide between cooking positions without lifting. Each burner has an adjustable standing pilot. A 4-inch stainless-steel front ledge provides space along the cooking line, while the full-width grease pan removes for cleaning.

Specifications

Manufacturer model TAHP-48-8
Burners / input 8 burners; 32,000 BTU/hr each
Body dimensions (W × D × H) 48 × 30 × 10 inches
Dimension allowances Depth excludes the ¾-inch rear gas connection; height excludes the included 2-inch legs.
Gas connection / included regulator ¾ inch; rear connection
Gas compatibility Natural gas / LP convertible; qualified setup must match the delivered rating plate.
Operating pressure Natural gas: 5 inches W.C.; LP: 10 inches W.C.

Installation

Install on a noncombustible countertop. Allow 12 inches at the back and sides next to combustible construction; no rear or side clearance is required next to noncombustible construction. Keep ventilation and service access unobstructed. A qualified gas installer must confirm the fuel configuration, regulated supply and local requirements. The upstream manual shutoff valve is supplied by the user. Keep flammable liquids and vapors away; the installer must leak-test gas connections without a flame.

Cleaning and maintenance

Let the unit cool and close the manual gas shutoff before cleaning. Inspect the grease pan frequently and empty it as needed. Clean exterior surfaces and grates regularly with mild detergent and hot water. Avoid cleaners containing acid, mineral spirits or xylene. Check combustion and ventilation airflow at least weekly; use qualified service for burner maintenance.

Warranty

U.S. limited parts-and-labor coverage runs one year from original installation or 15 months from manufacturer shipment, whichever comes first. Original-purchaser, authorized-service, geographic and travel restrictions apply.

Compare Radiance hotplates

TAHP-36-6: 36-inch, six-burner · TAHP-48-8: 48-inch, eight-burner

Product documents

Model specification sheet · Installation, care and warranty manual
