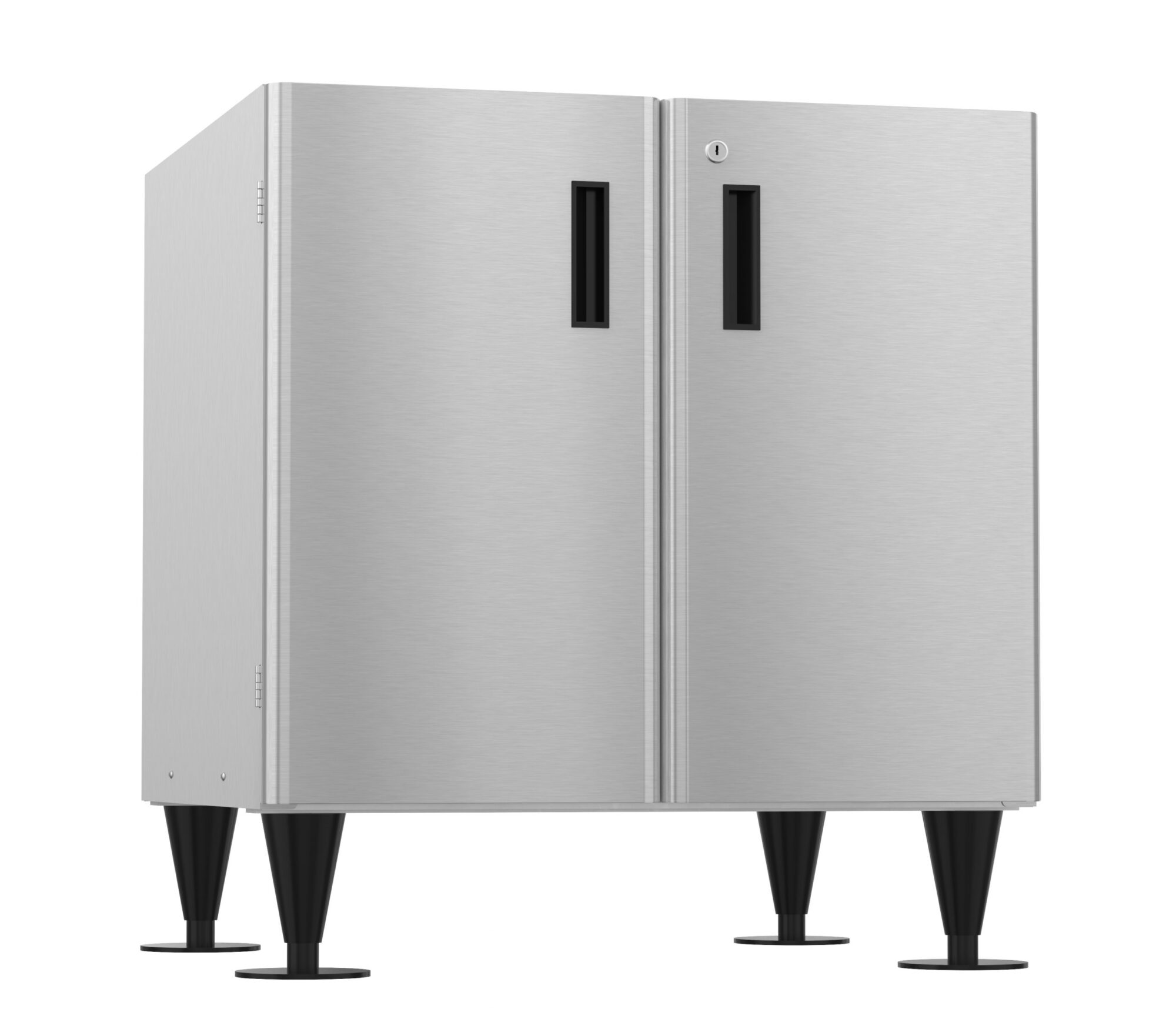

Hoshizaki SD-200 30" Stainless Steel Ice Dispenser Stand with Locking Doors
SD-200
Product overview
The Hoshizaki SD-200 provides an enclosed, stainless steel cabinet base for a compatible ice dispenser. Two doors with a cabinet lock secure access beneath the dispenser, and four adjustable 6-inch painted flange legs allow the stand to be leveled on a firm floor.
This unpowered stand does not make, dispense or refrigerate ice. The dispenser and any separate ice machine are sold separately.
- Lockable cabinet: Two-door access with recessed handles.
- Adjustable support: Four included 6-inch painted flange legs.
- Stainless steel exterior: Corrosion-resistant cabinet construction.
Specifications
| Model | SD-200 |
|---|---|
| Equipment type | Unpowered dispenser cabinet stand |
| Exterior | Stainless steel |
| Cabinet access | Two doors with a cabinet lock |
| Standard legs | Four adjustable 6-inch painted flange legs |
| Optional leg package | LP-6 FLANGE LEG: four 6-inch stainless steel flange legs, sold separately |
| Compatible dispensers | DM-200B |
Choose the complete dispenser installation
Match the complete dispenser model, including its suffix, before ordering. Confirm the mounting pattern, assembled height, door access and the dispenser’s ventilation and utility clearances with your installer. Obtain confirmed delivered cabinet dimensions and flanged-foot footprint before planning a close-fit installation.
Mounting and installation
Install on a flat, firm surface. Attach all four legs and adjust them until the stand is stable. Have the installer secure the dispenser with the supplied mounting hardware and seal the complete dispenser-to-stand seam with food-grade silicone. Follow the stand instructions together with the installation manual for the exact dispenser.
Remove the protective film from the cabinet panels before use. If the stand has been exposed to sunlight or heat, let it cool before peeling the film. Fasten the dispenser with the four supplied bolts and washers.
Options and service parts
The optional LP-6 FLANGE LEG package replaces the painted legs with four stainless steel flange legs. When ordering replacement components, match the stand model and serial-number auxiliary code to the parts manual.
Limited warranty
Two-year parts-and-labor coverage applies in the United States, Canada, Puerto Rico and U.S. territories, subject to the applicable manufacturer terms. Confirm coverage for installations elsewhere.
Compare SD cabinet stands
Choose the stand for the exact dispenser model and mounting arrangement. These stands are sold separately and are not interchangeable based on width alone.
SD-200 cabinet stand · SD-271 cabinet stand · SD-500 cabinet stand · SD-750 cabinet stand
