Hoshizaki SD-271 16.5" Stainless Steel Ice Dispenser Stand with Locking Doors
SD-271
Product overview

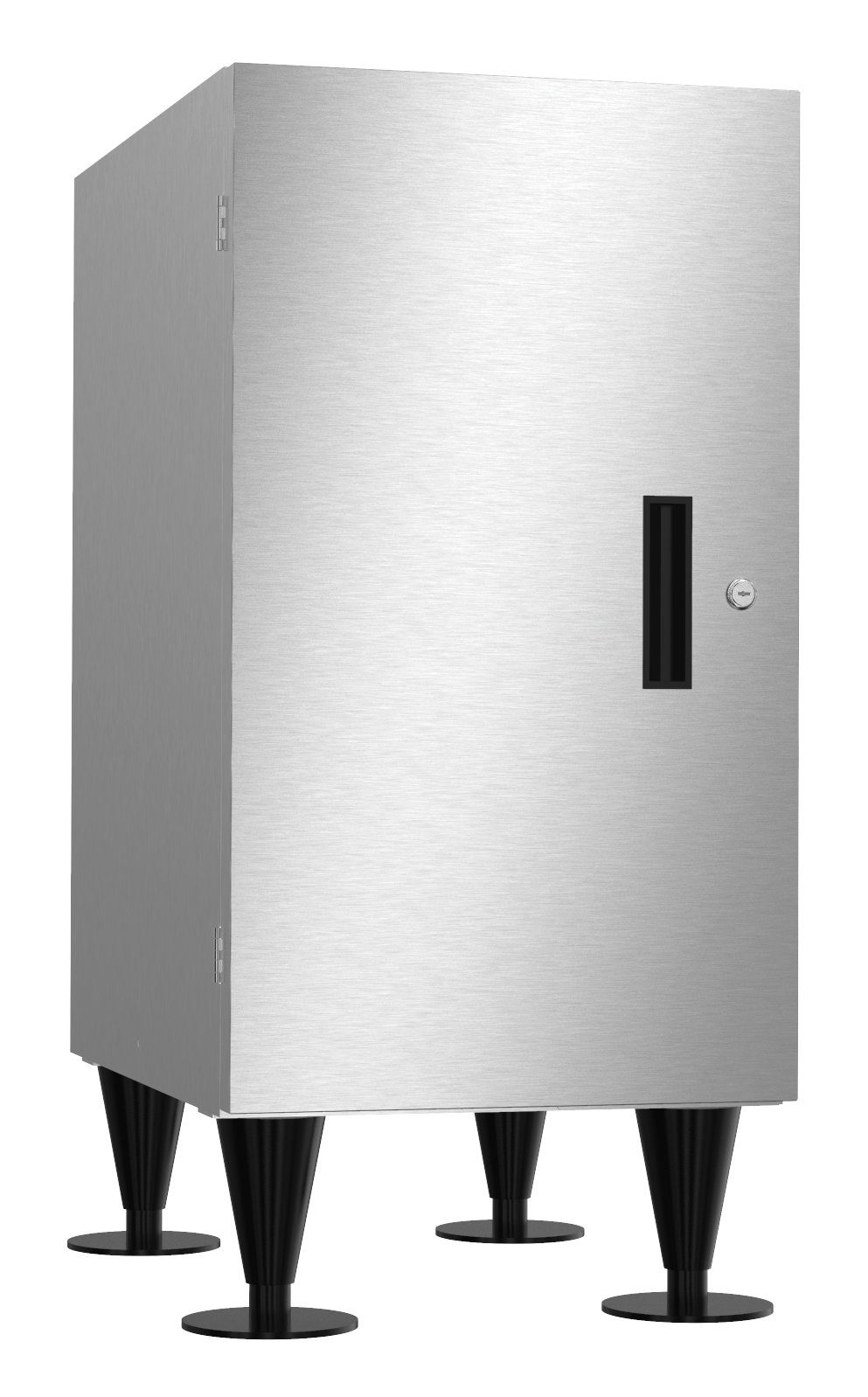

The Hoshizaki SD-271 provides an enclosed, stainless steel cabinet base for a compatible ice dispenser. One lockable, reversible door secures access beneath the dispenser, and four adjustable 6-inch painted flange legs allow the stand to be leveled on a firm floor.
This unpowered stand does not make, dispense or refrigerate ice. The dispenser and any separate ice machine are sold separately.
- Lockable cabinet: Reversible single door.
- Adjustable support: Four included 6-inch painted flange legs.
- Stainless steel exterior: Corrosion-resistant cabinet construction.
Specifications
| Model | SD-271 |
|---|---|
| Equipment type | Unpowered dispenser cabinet stand |
| Exterior | Stainless steel |
| Cabinet access | One lockable, reversible door |
| Standard legs | Four adjustable 6-inch painted flange legs |
| Cabinet dimensions (W × D × H) | 16½ × 24 × 35³⁄₁₆ inches |
| Dimension basis | Height includes legs; width and depth exclude flanged feet. Add approximately 1 inch for the flanges. |
| Optional leg package | LP-6 FLANGE LEG: four 6-inch stainless steel flange legs, sold separately |
| Compatible dispensers | DCM-271BAH, DCM-271BAH-OS and DCM-271BAK-OS |
Choose the complete dispenser installation
Match the complete dispenser model, including its suffix, before ordering. Confirm the mounting pattern, assembled height, door access and the dispenser’s ventilation and utility clearances with your installer. Allow for the flanged feet when checking floor space and access routes.
Mounting and installation

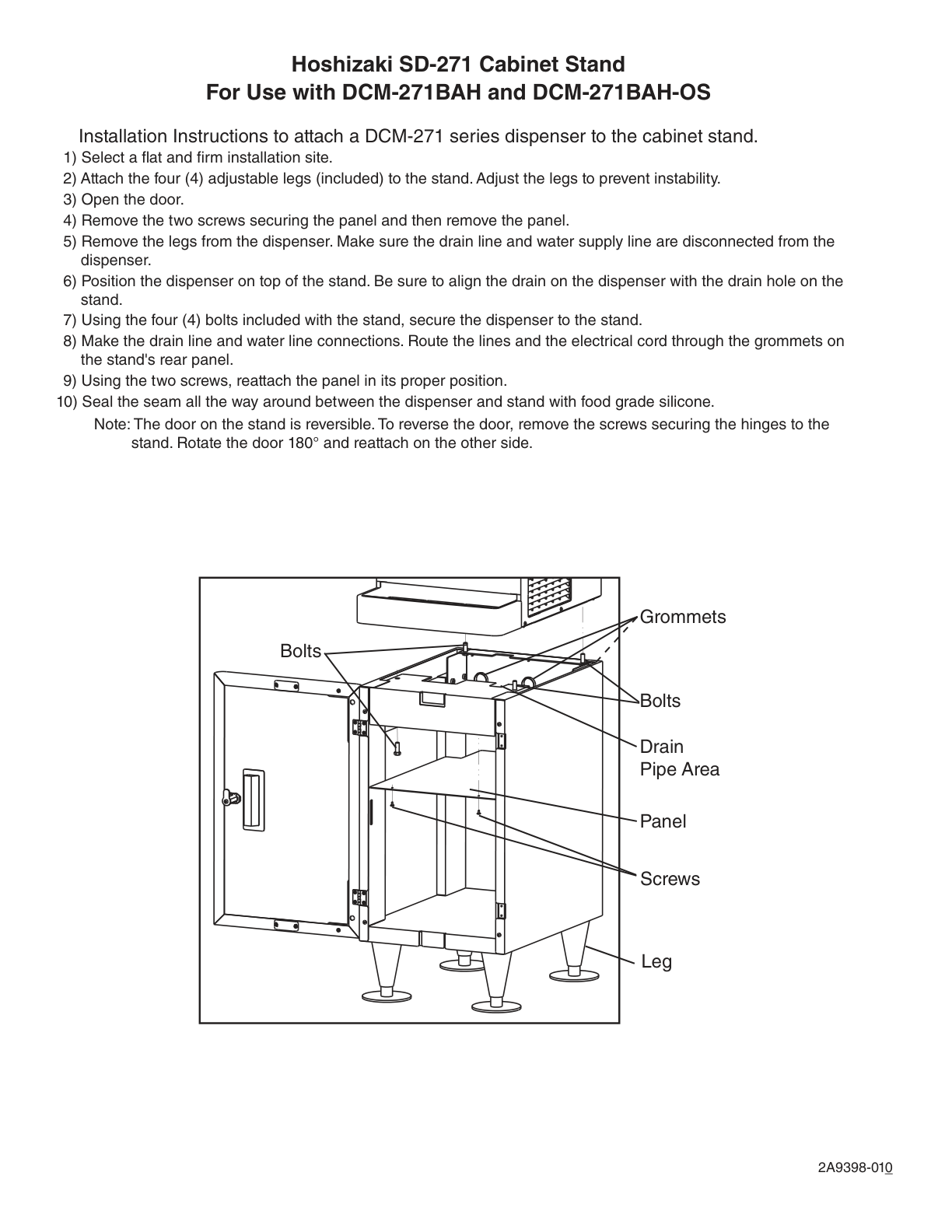

Install on a flat, firm surface. Attach all four legs and adjust them until the stand is stable. Have the installer secure the dispenser with the supplied mounting hardware and seal the complete dispenser-to-stand seam with food-grade silicone. Follow the stand instructions together with the installation manual for the exact dispenser.
Align the dispenser drain with the stand opening. Route the water line, drain line and electrical cord through the rear-panel grommets, then refit the access panel. The stand door can be reversed by moving its hinges to the opposite side as described in the dedicated SD-271 instructions.
Options and service parts
The optional LP-6 FLANGE LEG package replaces the painted legs with four stainless steel flange legs. When ordering replacement components, match the stand model and serial-number auxiliary code to the parts manual.
Compare SD cabinet stands
Choose the stand for the exact dispenser model and mounting arrangement. These stands are sold separately and are not interchangeable based on width alone.
SD-200 cabinet stand · SD-271 cabinet stand · SD-500 cabinet stand · SD-750 cabinet stand
