Blue Air BSR23-L-HC 23 cu ft 1-Door Stainless Steel Bottom-Mount Reach-In Refrigerator - Left Hinge
BSR23-L-HC
Product overview

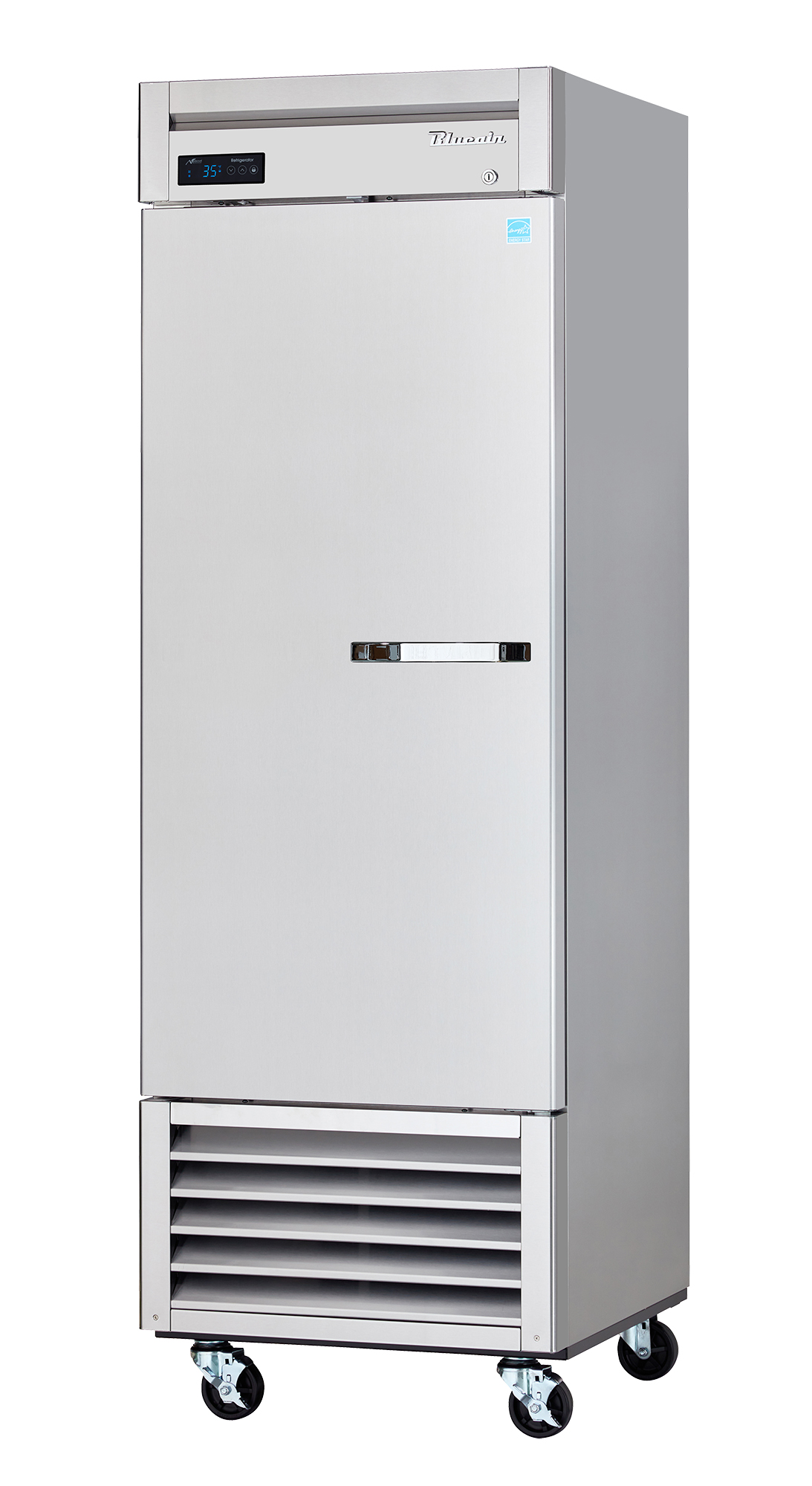

The Blue Air BSR23-L-HC provides 23 cu. ft. of refrigerated storage in a single-door, bottom-mount cabinet with a left-hinged door. Four adjustable epoxy-coated wire shelves organize ingredients and containers, while LED lighting and a digital temperature display make daily checks straightforward.
- 23 cu. ft. — Single-door refrigerated storage.
- Left-hinged door — Choose the opening direction for your kitchen layout.
- Four adjustable shelves — Epoxy-coated wire shelving.
Cabinet and door features
The stainless steel interior and exterior have a galvanized steel back and bottom. A rear-wall air guard supports circulation, and the bottom-mounted refrigeration system slides out for service. The self-contained system uses R-290 refrigerant.
The door closes automatically at 90 degrees or less and stays open at 110 degrees for loading. A door-open alarm, lock, metal handle and replaceable gasket support daily operation. Four swivel casters with front brakes are supplied. Digital controls provide a temperature display, self-diagnostics and manual defrost.

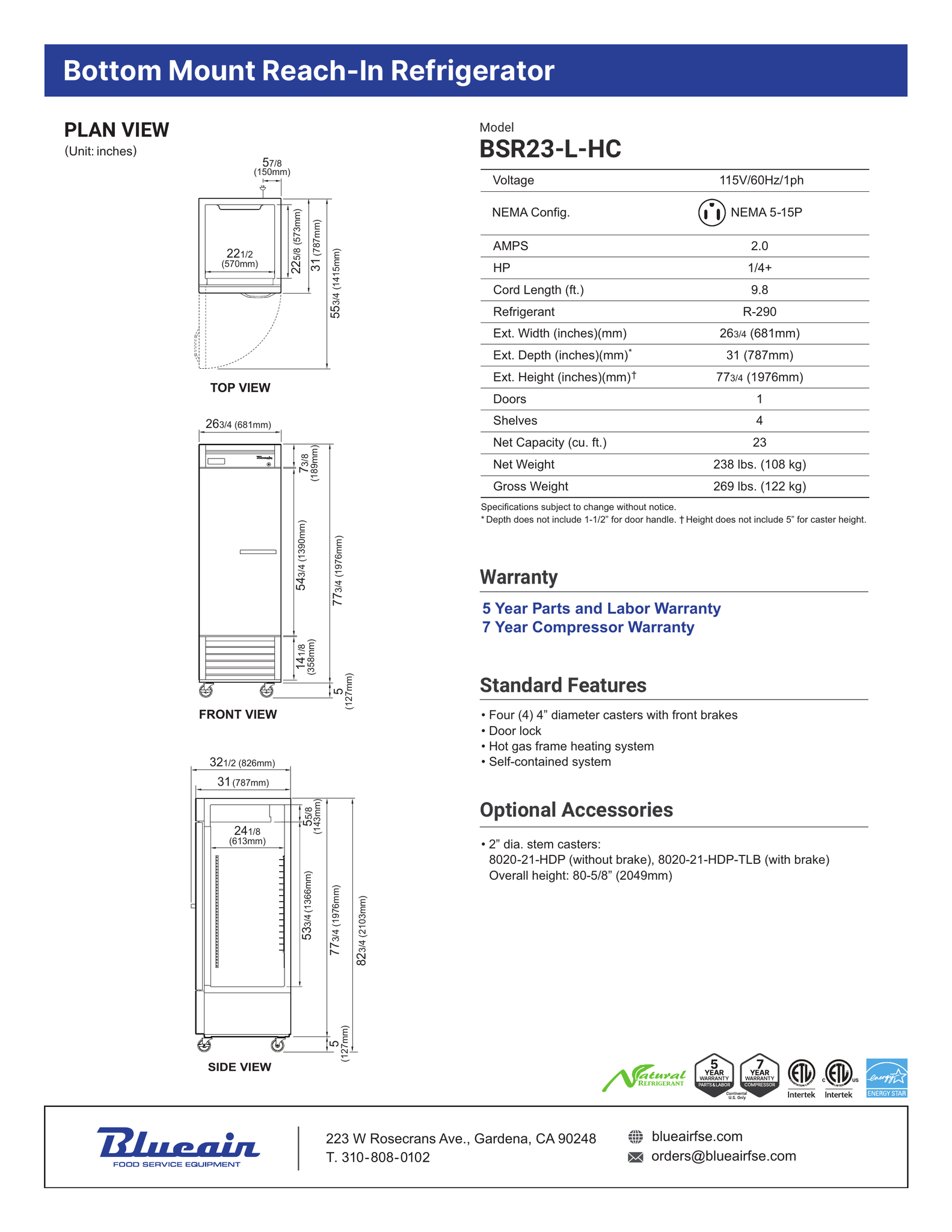

Specifications
| Model | BSR23-L-HC |
|---|---|
| Refrigerant | R-290 |
| Voltage | 115V/60Hz/1ph |
| NEMA Config. | NEMA 5-15P |
| AMPS | 2.0 |
| Cord Length (ft.) | 9.8 |
| Doors | 1 |
| Shelves | 4 |
| Net Capacity (cu. ft.) | 23 |
| Net Weight | 238 lbs. (108 kg) |
| Shipping/gross weight | 269 lb |
Installation and use
Install level, away from heat and sunlight, with clear ventilation. A qualified installer should check the grounded outlet and circuit; do not share the outlet or use an extension cord. Fit the braked casters at the front and keep drain hoses positioned in the condensate pan.
R-290 is flammable. Protect refrigerant tubing, keep ignition sources away, and use trained service personnel. Do not use mechanical devices to accelerate defrosting. This refrigerator is not for pharmaceuticals or scientific materials.
Cleaning and maintenance
Unplug before cleaning or service; switching off the controller does not isolate power. Clean the condenser monthly or as needed, with qualified help for service access. Wash the cabinet with warm, soapy water and a nonabrasive cloth, and clean gaskets regularly with mild soap. Leave evaporator cleaning to qualified technicians. Wait at least five minutes before reconnecting power.
Choose the hinge direction
BSR23-HC · Right hinge · BSR23-L-HC · Left hinge
