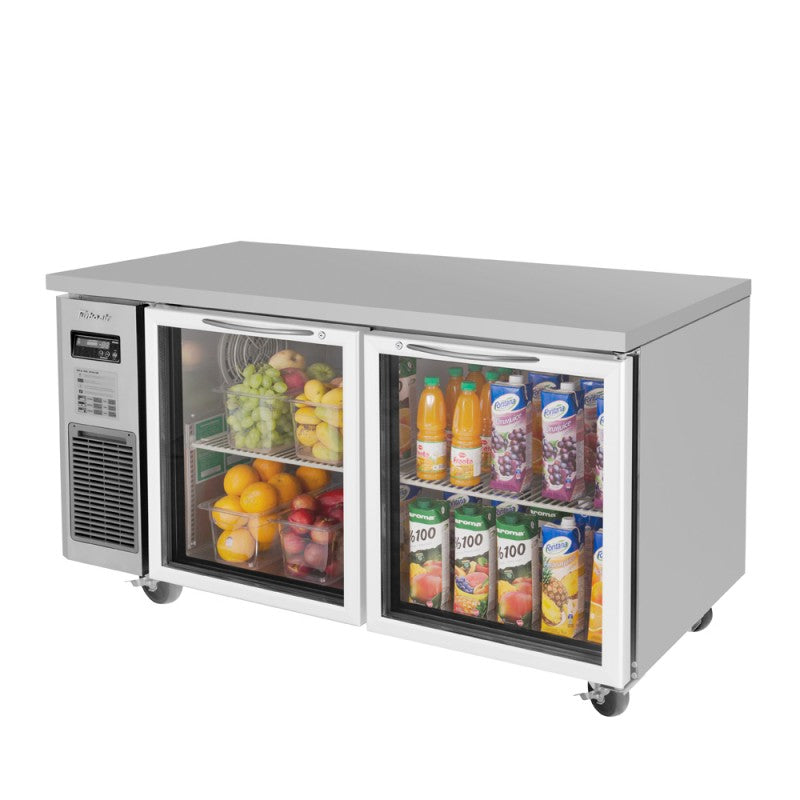

Turbo Air J Series Undercounter Refrigerator, 2 Section, 2 Glass Door, 59"W

Product overview

The Turbo Air JUR-60-G-N combines 2 self-closing glass doors with LED interior lighting, letting staff see refrigerated contents before opening the cabinet. Its 2 adjustable PE-coated wire shelves organize the interior, while the side-mounted compressor and removable front grille provide service access.

• ❄ 33–39°F: Refrigerated food storage.
• ▤ 2 doors: 2 adjustable shelves.
• ⚡ 115V single-phase: NEMA 5-15P connection.

Digital temperature control & monitor system
Keep food products safe by maintaining constant temperatures. External digital display allows for easy monitoring.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE's Energy Conservation Standards in 2017 and to use EPA's SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Hot gas condensate system
Through Turbo Air’s creative innovation, the condensate system surfaces have been specially treated to resist corrosion. This not only increases efficiency without the risk of refrigerant leakage from corrosion, but also thoroughly prevents the overflow of condensate water.

Side mount compressor unit
With compressors positioned on the side of the unit, our refrigerators can now be serviced without being moved. Our innovative, front breathing feature also allows this model to be highly efficient in narrow spaces.

Exterior & interior of the cabinet
The Turbo Air J series boasts a stainless steel exterior with glass doors & AL frame (galvanized steel back and bottom). Interior is stainless steel floor with AL sides and back.

LED interior lighting & fan control
Energy efficient LED lighting lights every corner, making items easy to find. Fan control function automatically shuts off the fan when the door is open, which prevents hot air from being drawn in, thus maintaining the cool inner temperature.

High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, CFC free polyurethane insulation.

Ergonomically designed doors
Easy-grip handles and self-closing doors provide access to the refrigerated cabinet.

Magnetic door gaskets
Magnetic door gaskets are of one-piece construction, removable without tools for ease of cleaning and replacement.

Adjustable, heavy duty, PE (polyethylene) coated wire shelves

Easy open front grille with condenser cleaning brush kit
Front grille cover is easily removable without any tools, which makes condenser cleaning easy and convenient at any time. Handy condenser cleaning brush is included inside the front grille cover.

Refrigerator holds 33°F ~ 39°F for the best in food preservation

STANDARD FEATURES
   Anti-corrosion coated evaporator
   Self-contained system
   Standard 4" dia. swivel casters with locks on the front set
   Door locks standard

Optional accessories:
•    1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)
•    2.5” caster, ½” diameter & 13 TPI: 30265H0100 (non-brake), 30265H0200 (w/ brake)
•    5” caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
•    6” ABS plastic leg: 30221M0200
•    6” stainless steel leg: 30221M0600
•    Additional PE coated wire shelf: KR29000100

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and
Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to www.p65warnings.ca.gov.

• (2) glass doors
• (2) PE coated wire shelves
• 13.58 cu.ft.
• 115v/60/1
• NEMA 5-15P
• 2.3 Amps
• 1/4 HP

Installation and startup

Install indoors on a strong, level floor away from heat. Keep ventilation openings clear, lock the front casters and use a dedicated grounded outlet without an extension cord. Keep the plug accessible. Run the refrigerator for 24 hours before loading food.

Have a qualified installer check the exact-model drawing, rear ventilation space, open-door clearance and supplied caster height before approving the opening. R290 refrigerant is flammable. Refrigerant service requires trained personnel; do not puncture tubing or use mechanical devices to accelerate defrosting.

Loading and cleaning

Keep food away from the back wall and at least 4 inches from the evaporator compartment. Disconnect power before cleaning. Wipe surfaces and gaskets with a soft cloth and neutral detergent; avoid abrasives, steel wool and chlorine-based cleaners. Clean condenser fins at least every 90 days, or sooner when needed. The removable front grille and supplied brush provide condenser access.

Compare glass-door refrigerators

JUR-48-G-N · JUR-60-G-N · JUR-72-G-N

Documents and warranty

JUR-60-G-N specification sheet · JUR-60-G-N CAD drawing · J Series installation and operation manual · JUR-G service manual and parts diagrams · Turbo Air warranty information
