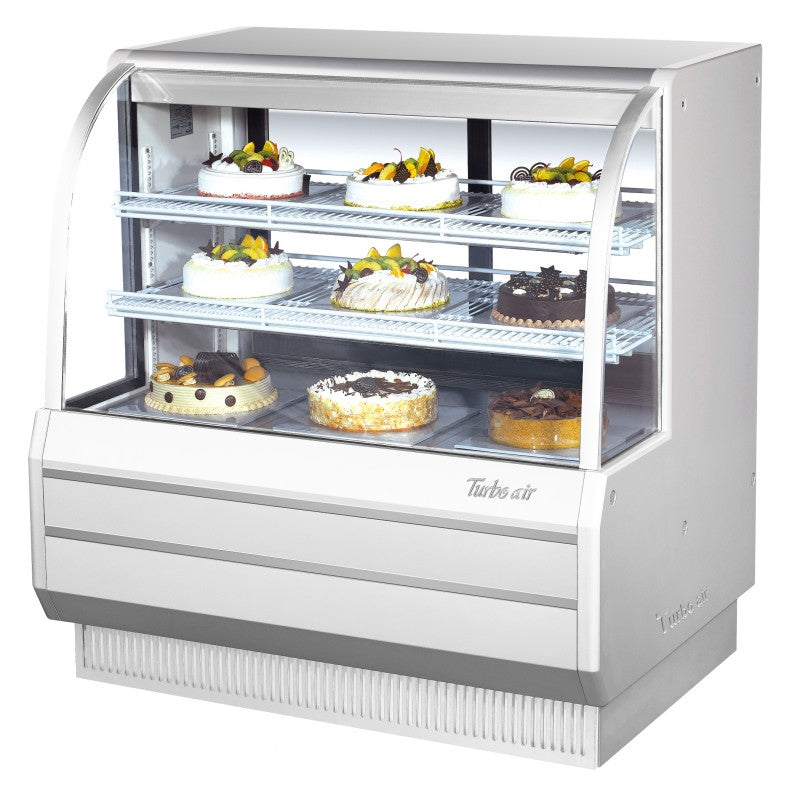

Turbo Air Dry Curved Glass Bakery Case, 48"W, White or Black
TCGB-48DR-W
Product overview
The Turbo Air TCGB-48DR-W(B) is a nonrefrigerated bakery display case with 15.6 cu. ft. of space. Curved tempered glass, a minimal frame and LED interior lighting provide a clear view of products. Sliding rear doors give staff access for loading and serving. Choose white or black from the available variants.
- 15.6 cu. ft.: Dry bakery display.
- Adjustable shelves: Cantilevered wire shelves adjust in height and tilt.
- LED lighting: Illuminated product presentation.
Display and cabinet construction
The Low-E-coated, double-pane glass is tempered for safety. Heavy-duty white PE-coated wire shelves provide adjustable display levels. The cabinet has a stainless steel floor and airflow grille, with high-density, CFC-free polyurethane insulation foamed in place throughout its structure.
Specifications and accessories
Optional Accessories:
- 4” caster, ½” diameter & 13 TPI: G8F6500101 (non-brake), G8F6500201 (w/ brake)
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and
Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to www.p65warnings.ca.gov.
- 15.6 cu.ft.
- (2) adjustable cantilevered wire shelves
- 115V/60/1
- 0.6 Amps
- NEMA 5-15P
Placement and dry display use
This dry case does not refrigerate its contents. Use it for bakery products suitable for room-temperature display; products requiring chilled storage need a refrigerated case.
Place the cabinet on a stable, level surface and keep products within the shelf edges. Have the electrical supply and mounting checked against the delivered model instructions. Use a grounded outlet without an extension cord or adapter. Floor-sealed installations require the base to be sealed as directed in the manual.
Cleaning and care
Switch off the lights and unplug before cleaning. Remove products, shelves and bottom trays. Clean the interior with warm water and mild detergent, wipe with a damp cloth and remove soap residue. Keep electrical components dry and do not spray the cabinet. Clean the case before first use; have repairs performed by qualified personnel.
Compare dry bakery cases
TCGB-36DR — 11.8 cu. ft., white or black · TCGB-48DR — 15.6 cu. ft., white or black · TCGB-60DR — 19.4 cu. ft., white or black · TCGB-72DR — 23.2 cu. ft., white or black
