Taiji TSK-130B Sake Warmer & Dispenser, 5–18 L Cube Feed

Name: Taiji TSK-130B Sake Warmer & Dispenser, 5–18 L Cube Feed
Brand: ERS
SKU: TSK-130B
Price: 1857.99 USD
Availability: OutOfStock

(34) TSK-130B

Taiji TSK-130B manufacturer illustration, serial 23100301 onward; sake cube and serving bottle not included

Low Stock

$1,857.99 /each

Shipping calculated at checkout.

About this product

The Taiji TSK-130B warms and dispenses Japanese sake from a separate 5–18 L cubic container. Electronic control regulates indirect water-bath heating, while automatic liquid-level stopping and a manual dispensing switch support individual bottle service.

Electrical supply: 110–120 V AC, 50/60 Hz
Power consumption: 1,000 W
Water bath: approximately 4.7 L, separate from the sake supply
Dimensions: 250 W × 375 D × 515 H mm
Minimum installation space: 310 W × 580 D × 825 H mm
Net weight: 9.3 kg
Included: funnel, drain tubing and stopcock
Cubic sake container and serving bottle are not included.

Not NSF or UL approved.

Product Overview

The TSK-130B warms and dispenses sake supplied from a 5–18 L cubic container. A stopcock and joint hose connect the supply to the warmer, while a separate water bath provides indirect heating. Electronic temperature control offers warming indications from approximately 45°C to 65°C; these are guidelines rather than guaranteed temperatures for every pour.

One receiving bottle is filled at a time. Adjust the holder so the nozzle reaches into the bottle, then push the bottle until the nozzle is straight down to start dispensing. Liquid reaching the nozzle sensor stops the automatic pour. A separate manual switch dispenses while held, giving the operator another way to draw sake. Check bottle shape and holder adjustment before service because not every receiving bottle works with the nozzle.

The bath holds approximately 4.7 L of water; that figure is not a sake-storage capacity. Check the water level during setup and wait for the selected warming indication before service. Close the cube stopcock and drain the internal sake path after use. Clean the path with hot water below 70°C, without detergent, following the operating instructions; clean the nozzle electrode and renew the bath water regularly. The supply container and receiving bottle are not included.

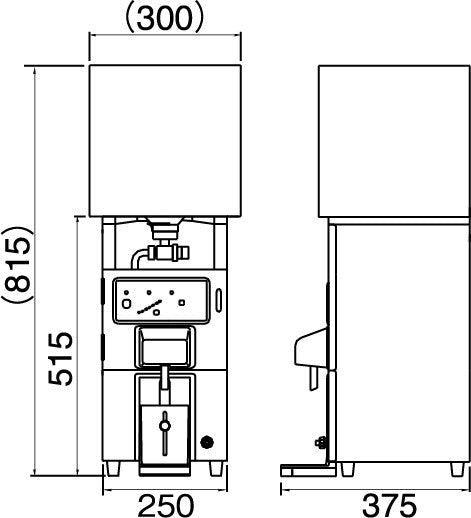

TSK-130B front and side dimension drawing with an example cube above the body

Plan for the cube above the warmer

The TSK-130B is fed by a separate 5–18 L cubic sake container. Fit the stopcock with its control closed, position the cube and connect the joint hose securely before opening the feed for service. The cube and the receiving bottle are not included.

The body measures 250 W × 375 D × 515 H mm, while the minimum installation space is 310 W × 580 D × 825 H mm. Account for the supply container and access above the unit instead of planning the counter from body height alone. Other warmer formats shown here are alternatives to compare, not interchangeable replacement parts.

5–18 L cube-fed supply

A stopcock and joint hose connect the cubic sake container to the warmer. The supply container is not included.

Electronically controlled water bath

Indirect heating uses a separate water bath. Approximate 45–65°C warming indications are guides and depend on operating conditions.

Automatic stop with manual dispensing

The receiving bottle starts the automatic pour when it brings the nozzle upright. Liquid-level detection stops it; the manual switch dispenses while held.

Taiji TSK-130B controls, dispensing components and accessories

Check the bottle before relying on automatic stop

Set the holder so the nozzle reaches about 2 cm inside the receiving bottle. Push the bottle until the nozzle points straight down to start filling; liquid reaching the sensor ends the automatic pour. Bottle shape can affect this action, so check fit and operation before using a new bottle style in service.

The separate manual switch dispenses while held, including when the nozzle is tilted. Approximate warming indications run from 45°C to 65°C, but actual sake temperature varies with conditions. Choose and check the pour for the sake being served rather than treating the indication as a guaranteed temperature.

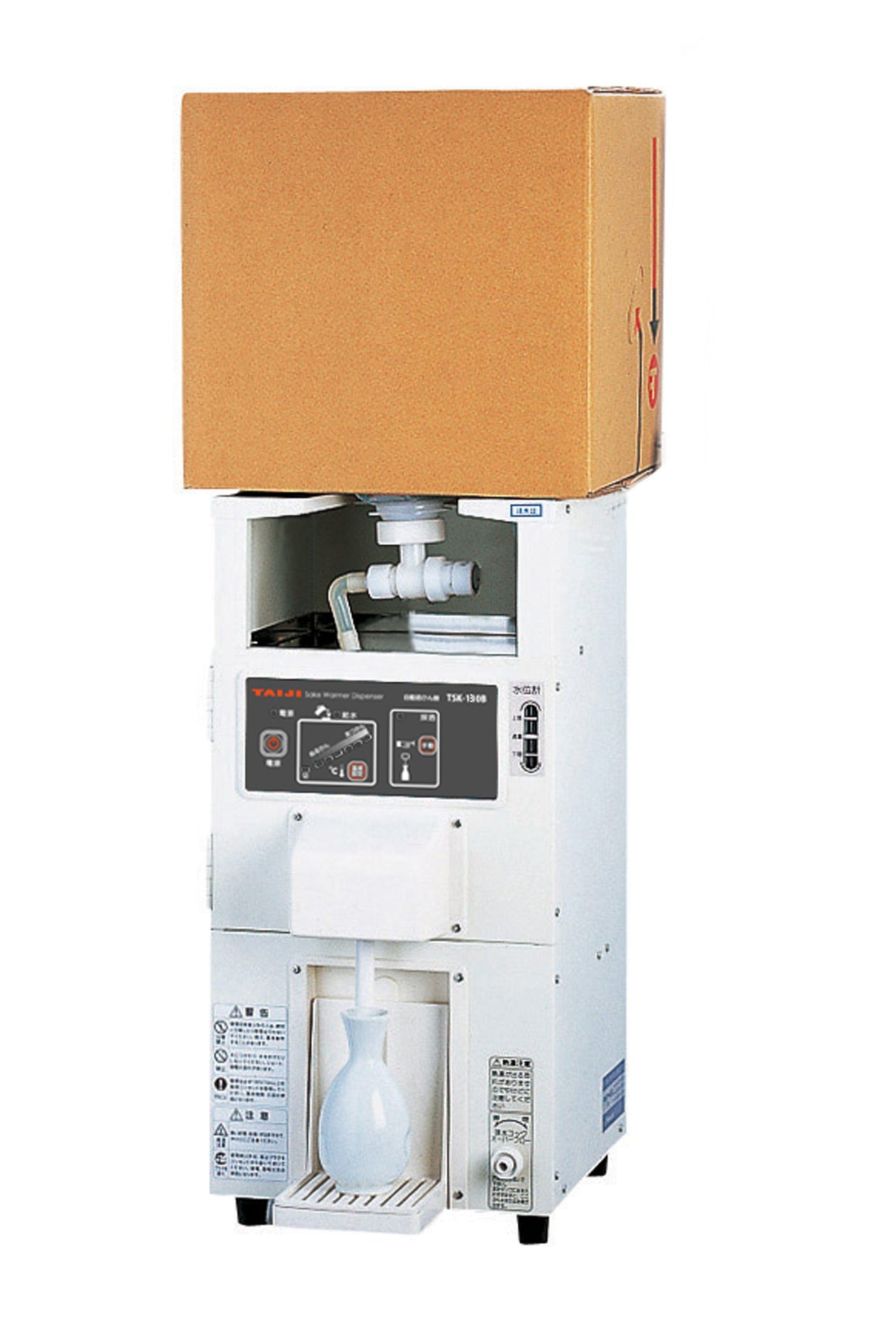

TSK-130B front view showing the supply connection, water-level indicator and serving tray

Close the feed, drain the path, then clean

Close the cube stopcock before draining sake from the warmer, so the external supply does not continue feeding the path. For internal cleaning, use a dedicated empty cube with hot water below 70°C and follow the dispensing procedure in the operating instructions. Do not put detergent into the sake path.

Clean the nozzle electrode gently and wash the removable holder and tray with warm water. Renew bath water about monthly. Its approximately 4.7 L capacity is water for indirect heating, not sake storage; keeping that distinction clear makes opening, filling and closing checks easier to follow.

TSK-130B operating manual: serial 23100301 onward

TSK-130B earlier operating manual

Specifications

Taiji TSK-130B Sake Warmer & Dispenser, 5–18 L Cube Feed
Model	TSK-130B
Sake supply format	5–18 L cubic container; container not included
Power consumption	1,000 W
Electrical supply	110–120 V AC, 50/60 Hz
Temperature control	Electronic control
Warming temperature guidance	Approximately 45°C (lukewarm) to 65°C (hot); varies with conditions
Unit dimensions	250 W × 375 D × 515 H mm
Minimum installation space	310 W × 580 D × 825 H mm
Net weight	9.3 kg
Included accessories	Funnel, drain tubing and stopcock
Intended use	Indoor warming and dispensing of Japanese sake
Certification limitation	Not NSF or UL approved.
Heating method	Indirect water bath
Dispensing outlets	1
Dispensing control	Automatic nozzle-level stop; separate hold-to-dispense switch
Country of origin	Japan
Water-bath capacity	Approximately 4.7 L of water

The 5–18 L figure describes the external sake container. The separate water bath holds approximately 4.7 L of water, not sake. Unit dimensions exclude the installation space needed above and around the warmer. Cubic sake container and serving bottle are not included.

Compare sake warmers

Compare sake warmers
	Current product Taiji TSK-130B Sake Warmer & Dispenser, 5–18 L Cube FeedTSK-130B	Taiji Ti-2 Sake Warmer & Dispenser, 3.6 L, 120 VTi-2	5-Gallon Electric Sake Warmer & Dispenser - NEC-1NEC-1	Taiji TSK-150CS Sake Warmer Dispenser 5-GallonTSK-150CS	Taiji TSK-150C Sake Warmer Dispenser 5-Gallon – IvoryTSK-1000C
Price	$1,857.99	$1,314.99	$1,750.00	$1,800.00	$1,750.00
Model	TSK-130B	Ti-2	NEC-1	TSK-150CS	TSK-1000C
Sake supply format	5–18 L cubic container; container not included	3.6 L maximum; 0.5 L minimum fill	18 L cubic sake containerSupply-container volume, not water-bath capacity.	5-gallon cubic sake containerSupply-container volume, not water-bath capacity.	5-gallon cubic sake containerSupply-container volume, not water-bath capacity.
Power consumption	1,000 W	500 W	1,000 W	—	1,000 W
Electrical supply	110–120 V AC, 50/60 Hz	Single-phase 120 V, 60 Hz	Single-phase 120 V, 60 Hz	Single-phase 120 V, 60 Hz	Single-phase 120 V, 60 Hz
Temperature control	Electronic control	Variable thermostat	Adjustable bath-water controlDial setting is not a guaranteed sake outlet temperature.	Variable thermostat	Variable thermostat
Warming temperature guidance	Approximately 45°C (lukewarm) to 65°C (hot); varies with conditions	—	—	—	—
Unit dimensions	250 W × 375 D × 515 H mm	160 W × 345 D × 625 H mm	—	—	W14.8 in × D9.8 in × H20.3 in
Minimum installation space	310 W × 580 D × 825 H mm	Stable, level, ventilated counter; secure with the supplied anti-toppling brackets and leave access for filling and cleaning	Indoor use	—	—
Net weight	9.3 kg	15 lb dry weight (approximately 6.7 kg)	Approximately 24.2 lb (11 kg)	—	—
Included accessories	Funnel, drain tubing and stopcock	Funnel, spare filter, server-bottle tray and anti-toppling brackets	—	—	—
Intended use	Indoor warming and dispensing of Japanese sake	Indoor warming and dispensing of Japanese sake	Indoor Japanese-sake warming and dispensing	Sake warming and dispensing	Sake warming and dispensing
Certification limitation	Not NSF or UL approved.	Tested by ETL to meet UL, CSA and NSF standard requirements.	—	—	—
Heating method	Indirect water bath	Indirect water bath	Indirect water bath	Indirect water bath	Indirect water bath
Dispensing outlets	1	1	1	1	1
Dispensing control	Automatic nozzle-level stop; separate hold-to-dispense switch	Automatic liquid-level stop	Automatic nozzle-level stop; separate hold-to-dispense switch	Automatic shut-off valve; front manual-dispensing switch	Automatic shut-off valve; front manual-dispensing switch
Country of origin	Japan	Japan	Japan	Japan	Japan
Water-bath capacity	Approximately 4.7 L of water	Approximately 2.3 L of water	4.0 L at the indicated operating water level	—	—
Warranty	—	1 year warranty with proper use	—	One-year manufacturer warranty on key components; parts and accessories excluded	One-year manufacturer warranty on key components; parts and accessories excluded
Cabinet Finish	—	—	—	Stainless steel	Ivory
