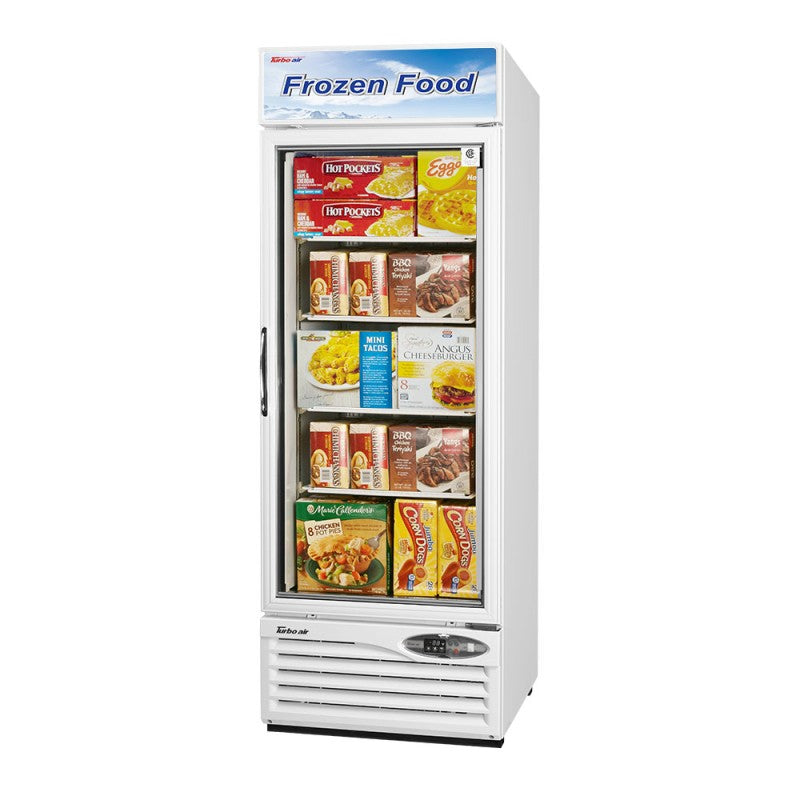

Turbo Air Swing Glass Door Freezer, 1 Section, 27"W

Product overview

• ▣ Display: 1 heated triple-pane glass door
• ❄ Temperature: −10 to 5°F
• ≡ Shelving: 4 adjustable PE-coated wire shelves

Features and specifications

Hydrocarbon Refrigerants (R-290)
These hydrocarbon freezers are designed to meet DOE's Energy Conservation Standards in 2017 and to use EPA's SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Digital temperature control & monitor system
•     Keep food products safe by maintaining constant temperatures.
•     Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
•     Digital display allows for easy monitoring.
•     Programs interpret the condition of refrigeration systems by self-diagnosis.
•     Rapid cool-down function (Turbo Freeze).
•     Smart defrost system will defrost as needed.
•     Automatic evaporator fan motor delays.

LED advertising panel
LED lighting offers 5 times longer lasting life than fluorescents and conserves energy as well.

Triple pane heated glass doors
Equipped with unique triple-pane heated glass doors which enhance energy efficiency by preventing heat transfers and minimizing condensation. Lightweight door construction reduces door maintenance, bushing wear, and facilitates smooth door opening.

High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.

Ergonomically designed doors
Easy-grip handles and self-closing doors provide smooth access.

Adjustable, heavy duty, PE (polyethylene) coated wire shelves

LED interior lighting

Freezer holds -10°F ~ 5°F for the best in frozen food preservation

STANDARD FEATURES:
Anti-corrosion coated evaporator
Magnetic door gaskets
White and black color come standard

Optional accessories:
- Self-Cleaning Condenser available
- 4” casters, ½” diameter & 13 TPI: G8F6500101 (non-brake), G8F6500201 (w/ brake)
- Additional PE coated wire shelf: 30278R0102 (LED unit)
- Price tag channel: P0122K5100 (201/4”L)

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and
Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to www.p65warnings.ca.gov.

• (1) triple pane heated glass door
• (4) adjustable PE coated wire shelves
• 17.7 cu. ft.
• 2/3 HP
• 115v/60/1
• 5.3 Amps
• NEMA 5-15P

Dimensions and connection

Installation and loading

Install indoors on a strong, level floor at 50–100°F, with at least 5 inches behind the cabinet. Use a dedicated grounded outlet with an accessible plug, without extension cords. Run the freezer for 24 hours before loading. Keep shelf loads below 110 lb, prevent overhang and leave at least 4 inches around the evaporator compartment. Do not block the rear interior air inlet. Do not store bottles or breakable glass containers in the freezer or touch frozen surfaces with wet hands.

Cleaning and maintenance

Disconnect power before cleaning with a soft cloth, warm water and soap; avoid abrasives and direct water spray. Clean a conventional condenser at least every 90 days or as needed. If equipped with the optional self-cleaning condenser, arrange professional nitrogen cleaning once or twice yearly; grease may still need removal. Empty the drain pan periodically and return its hose to the pan. Wait five minutes before restarting. R-290 is flammable: protect tubing, avoid mechanical defrosting tools and use qualified service personnel.

Choose a cabinet finish

TGF-23FB-N · TGF-23F-N

Product documents

Model specifications and dimensions · Installation, operation and care manual
