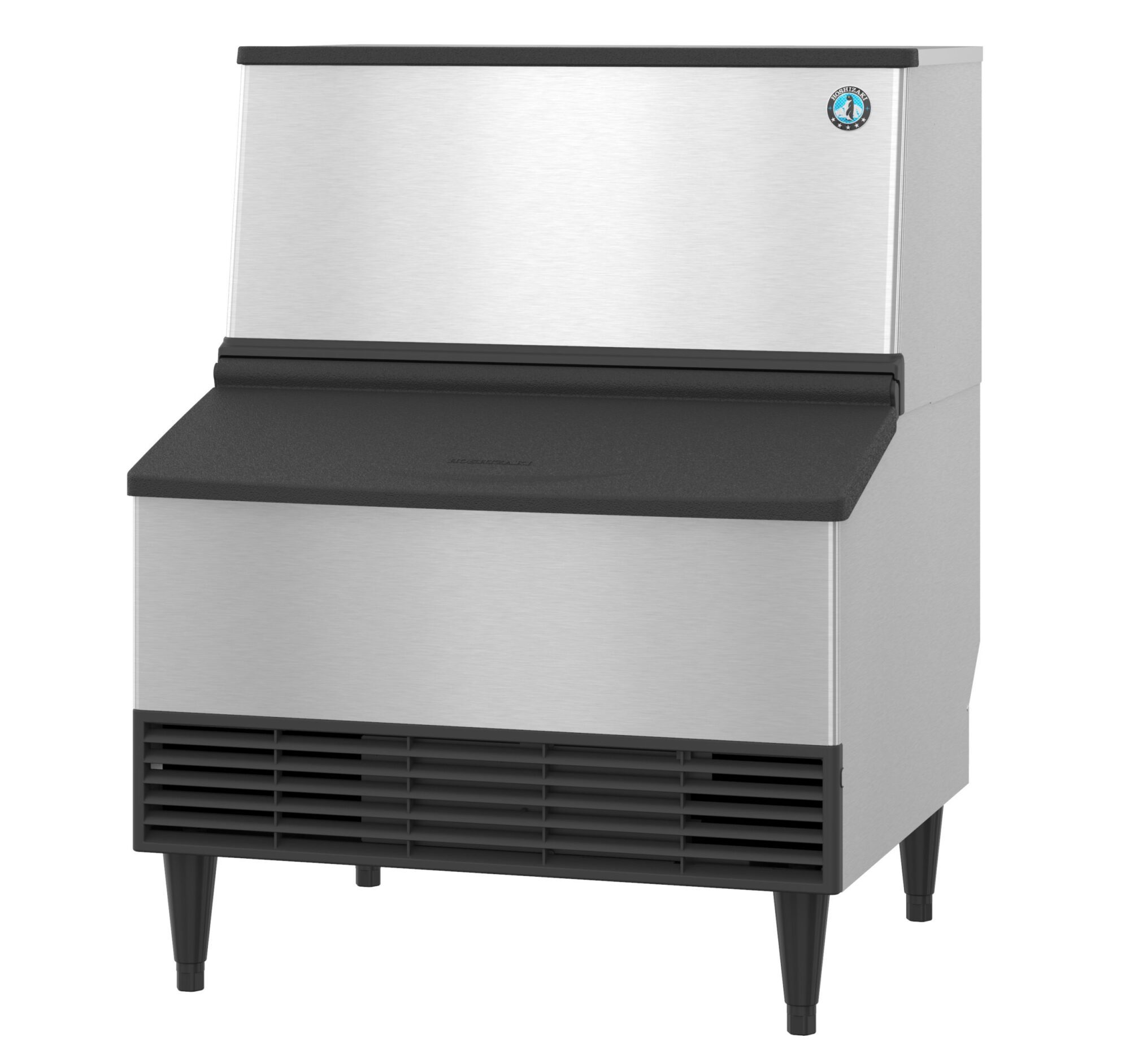

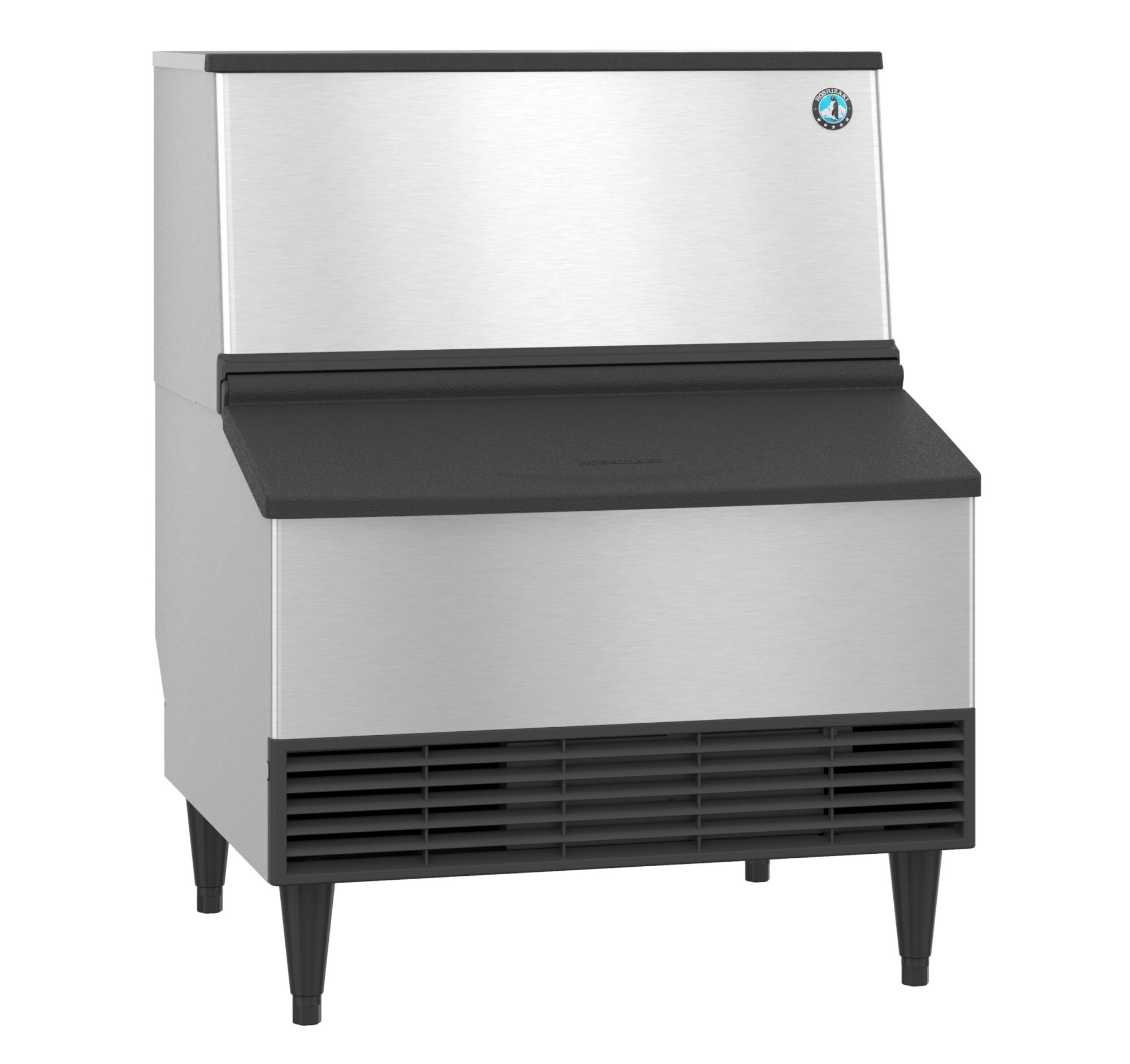

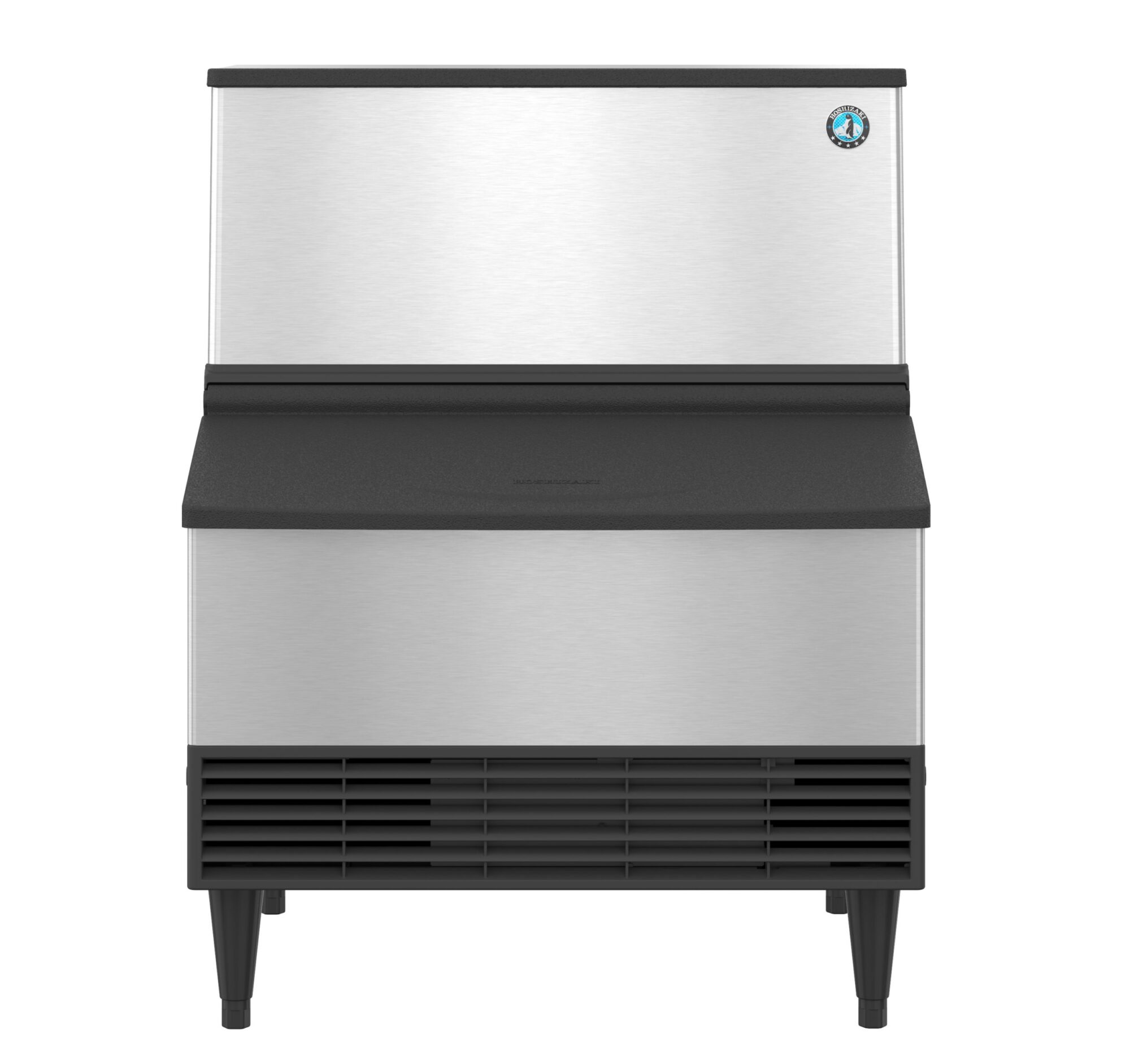

Hoshizaki KM-301BWJ 265 lb/Day Water-Cooled Crescent Ice Machine with 100 lb Storage Bin

Specifications and Features

• Model: KM-301BWJ; water-cooled crescent ice machine with built-in bin
• Exterior dimensions (W × D × H): 30 × 28 × 39 inches, including 6-inch legs
• Ice production: up to 265 lb per 24 hours at 70°F air / 50°F water; 237 lb at 90°F air / 70°F water
• Built-in ice storage: 100 lb (3.3 cubic feet), AHRI-rated capacity
• Stainless steel evaporator and exterior; CycleSaver design and EverCheck alert system
• ADA-compliant ice-bin opening
• Electrical: 115 V / 60 Hz / single phase; 5.7 A; maximum fuse 15 A
• 6.5-foot power cord with NEMA 5-15P plug
• Refrigerant: R-404A; charge 12.3 oz
• Heat rejection: 4,050 BTU/hr
• Ambient temperature: 45–100°F; water temperature: 45–90°F; water pressure: 10–113 PSIG
• Utility consumption at 90°F air / 70°F water: 4.9 kWh, 20 gallons potable water, and 92 gallons condenser water per 100 lb ice
• Icemaker water supply: minimum 1/4-inch nominal ID; icemaker drain: minimum 3/4-inch nominal ID. Water-cooled condenser connections are separate.
• Warranty: 3 years parts and labor on the machine; 5 years parts and labor on the evaporator; 5 years compressor parts, subject to manufacturer terms
• Net weight: 154 lb; shipping weight: 189 lb
• Manufacturer shipping dimensions (L × W × H): 34 × 33 × 39 inches

Manufacturer resources

• Spec Sheet
• Instruction Manual
• Parts Manual
• Service Manual
• CAD/Revit File Search
• Warranty Statement
• Full Product Brochure
• Sales Catalog
