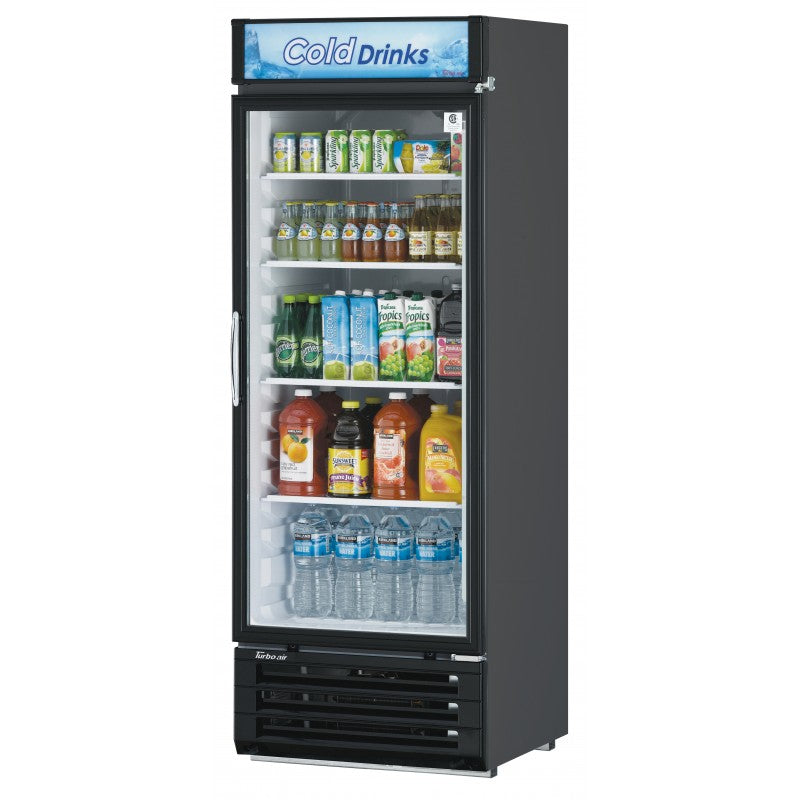

Turbo Air TGM-22RVB-N6 28¾″ One-Door Swing Glass Merchandiser Refrigerator — Black
TGM-22RVB-N6
Usually Ships in 1 Business Day
✓ Pickup available at our Los Angeles showroom.The Turbo Air TGM-22RVB-N6 is a black single-door merchandiser built around a 20.3 cu. ft. beverage display. At 28¾ inches wide, it provides a larger display than the narrower RV cabinets without requiring a multi-door footprint. The swing glass door gives customers a direct view of the drink selection, while the illuminated advertising panel helps identify the beverage station.
The cabinet includes 4 adjustable, heavy-duty PE-coated wire shelves, so the layout can be adapted to different bottle and container heights. Double-pane Low-E glass reduces heat gain and helps limit condensation. Interior LEDs keep the contents visible through the closed door.
The R-600a refrigeration system holds beverages at 33–38°F. High-density polyurethane insulation surrounds the cabinet, and the evaporator has a corrosion-resistant coating. The hot-gas condensate system uses corrosion-resistant surfaces to help manage condensate water. The black cabinet has a black-framed glass door.
Plan for the 28¾-inch width, 27⅝-inch body depth and 79⅞-inch height, plus 1⅜-inch door handles. Install indoors on a firm, level surface with at least 5 inches behind the cabinet for airflow. A 7-foot cord with a NEMA 5-15P plug connects to a dedicated 115V, 60Hz, single-phase outlet; full-load draw is 2.2 amps.
Features
- Low-E double-pane glass limits heat gain
- LED interior lighting and illuminated advertising panel
- 4 PE-coated wire shelves organize the display
- Corrosion-resistant hot-gas condensate system
Specifications
| Model | TGM-22RVB-N6 |
|---|---|
| Width | 28¾ Inches |
| Body Depth | 27⅝ Inches |
| Height | 79⅞ Inches |
| Capacity | 20.3 cu. ft. |
| Doors | 1 swing glass door |
| Shelves | 4 PE-coated wire shelves |
| Shelf Size | 25½ × 19⅜ Inches |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Full Load Amps | 2.2 Amps |
| Compressor | 1/5 HP |
| Plug Type | NEMA 5-15P |
| Cord Length | 7 Feet |
| Refrigerant | R-600a |
| Holding Temperature | 33–38°F |
| Glass | Double-pane Low-E glass |
| Lighting | LED interior and advertising panel |
| Condensate System | Hot gas |
| Net Weight | 225 lb. |
| Crated Weight | 243 lb. |
| Certifications | cETLus; ETL Sanitation |
| Manufacturer Warranty | 2 years parts and labor; 5 years total compressor coverage, subject to terms |
| Color | Black |
Body depth excludes 1⅜-inch door handles. Allow room for rear spacers and ventilation. Allow at least 5 inches behind the cabinet for airflow. Shipping weight can vary with protective packing.
