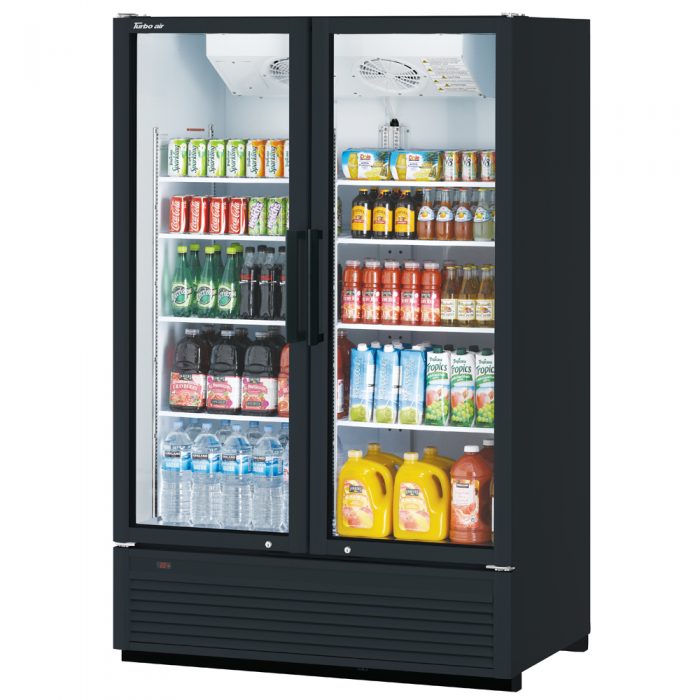

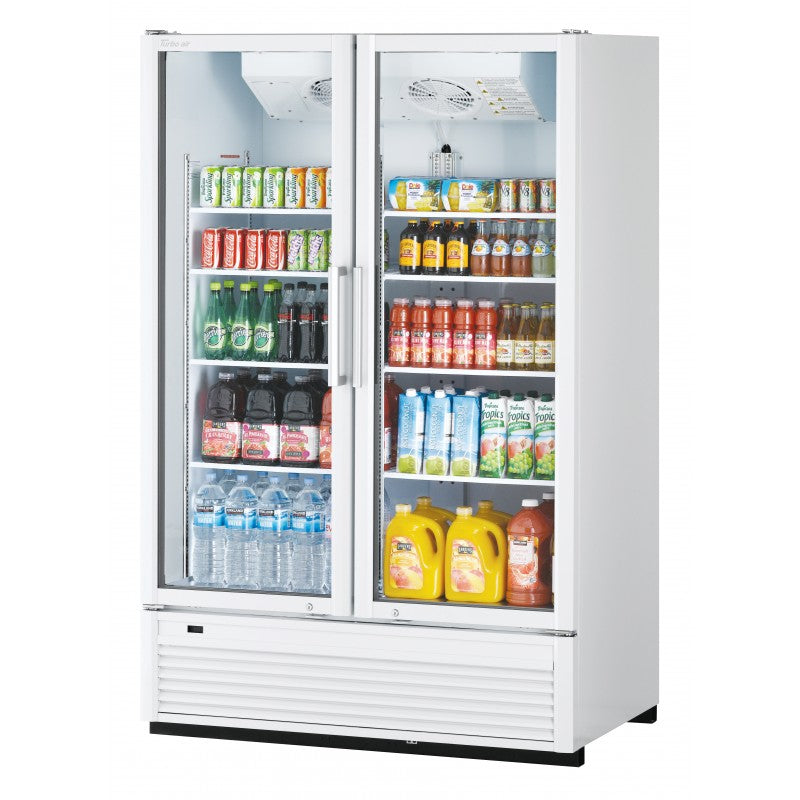

Turbo Air TGM-47SDH-N 51″ 2-Door Swing Glass Merchandiser Refrigerator
TGM-47SDHW-N
Usually Ships in 1 Business Day
✓ Pickup available at our Los Angeles showroom.The Turbo Air TGM-47SDH-N is a two-section Super Deluxe merchandiser with 44.2 cu. ft. of refrigerated display space. The 51⅛-inch-wide cabinet pairs two glass swing doors with a plain header, emphasizing the contents rather than an advertising panel. It is a useful alternative for a market or restaurant that wants a broad chilled-drink display with an uncluttered cabinet face. White and black cabinet finishes are available.
8 adjustable, polyethylene-coated wire shelves let you arrange the cabinet for different bottle and package heights. Interior LED lighting helps customers see the selection, while double-pane Low-E glass limits heat gain through the doors. The coated evaporator resists corrosion, and door locks provide a practical way to secure the display when access needs to be restricted.
The R-290 refrigeration system maintains 33–38°F, with a digital controller for checking and adjusting operation. The self-cleaning condenser automatically brushes dust from its filter, while door-open alarms and the Turbo Cooling function support day-to-day temperature management. Keep the ventilation path clear and include condenser inspection in routine maintenance, especially where grease can accumulate.
Plan for a 51⅛-inch cabinet width, 31⅞-inch body depth and 77-inch cabinet height, plus the handle and leg allowances shown in the specifications. The 7-foot cord and NEMA 5-15P plug connect to a dedicated 115V, 60Hz, single-phase outlet; full-load draw is 6.6 amps. Install indoors, leave airflow space behind the cabinet and allow the refrigerator to run for 24 hours before stocking it.
Specifications
| Model Platform | TGM-47SDH-N |
|---|---|
| Manufacturer | Turbo Air |
| Series | Super Deluxe |
| Cabinet Finish Options | White or black |
| Cabinet Width | 51⅛ Inches |
| Body Depth | 31⅞ Inches Excludes 2¼-inch door handle. |
| Cabinet Height | 77 Inches Excludes 2½-inch legs. |
| Net Capacity | 44.2 cu. ft. |
| Doors | 2 swing glass doors |
| Shelves | 8 adjustable PE-coated wire shelves |
| Shelf Size | 22½ × 23 Inches |
| Door Glass | Double-pane Low-E glass |
| Interior Lighting | LED |
| Advertising Panel | No illuminated advertising panel |
| Door Locks | Standard |
| Holding Temperature | 33–38°F |
| Refrigeration System | Self-contained |
| Refrigerant | R-290 |
| Compressor | 2/5 HP |
| Temperature Control | Digital control and temperature monitor |
| Condenser Cleaning | Automatic daily brush with condenser filter |
| Voltage | 115 Volts |
| Frequency | 60 Hz |
| Phase | 1 Phase |
| Full Load Amps | 6.6 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 7 Feet |
| Certifications | cETLus; ETL Sanitation |
| Installation | Indoor use; 50–100°F ambient |
| Recommended Rear Clearance | At least 5 Inches |
| Electrical Connection | Dedicated grounded outlet; no extension cord |
| Net Weight | 432 lb. |
| Crated Weight | 510 lb. |
Body depth excludes the 2¼-inch door handle. Cabinet height excludes 2½-inch legs. Maintain ventilation around the cabinet; at least 5 inches behind the unit is recommended. Shipping weight can vary with packing materials.
Why Choose Turbo Air
- Automatic condenser brushing helps manage dust buildup
- Digital temperature display with door-open alarms
- Low-E glass and LED lighting support clear product presentation
- 8 adjustable PE-coated shelves organize the display
