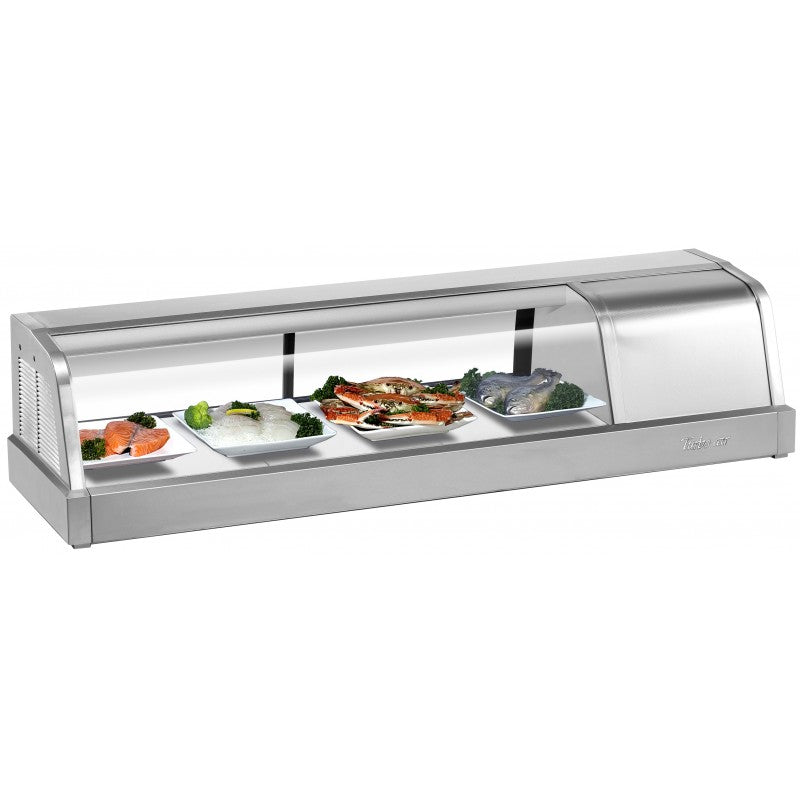

Turbo Air SAK-50R-N 48" Stainless Steel Curved Glass Refrigerated Sushi Case - Right Side Condenser
SAK-50R-N
Usually Ships in 1 Business Day
✓ Pickup available at our Los Angeles showroom.Turbo Air SAK-50R-N is a refrigerated sushi case with a 48″ marketed length and a right side condenser when viewed from the front. Exact case dimensions are 48¼″W × 14⅛″D × 11½″H, excluding the drain.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE's Energy Conservation Standards in 2017 and to use EPA's SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Ambient temperature range 50°F ~ 80°F, saturation temperature 39°F
Beautifully curved, angled down top front glass
1" diameter drain hole with plastic cover
Slightly inclined bottom for better drainage
Larger interior for optimized display effect
Stainless steel solid food plates
Low-E coated, tempered glass doors with durable plastic door handles at chef side
Exterior body is beautifully made from unique and stylish stainless steel material
Side mount compressor makes it easy to be serviced without being moved
Elegant contemporary Euro design enhances any store application
Easy cleaning and excellent durability
Condenser located on the right from the front view
Drain hole locates on left from the chef side
Refrigerator maintains 35°F ~ 41°F for the best in food preservation
Recommended operating conditions
SAK models are designed to operate in environments where temperature & humidity do not exceed 75°F and 55% relative humidity.
STANDARD FEATURES
Anti-corrosion coated evaporator
Self-contained system
Simple plug-in installation
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and
Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to www.p65warnings.ca.gov.
- (3) bottom shelves
- 1" drains
- 1/6 HP
- 115v/60/1
- 4.6 amps
- NEMA 5-15P
Specifications
| Model | SAK-50R-N |
|---|---|
| Condenser location | Right (front view) |
| Marketed length | 48 inches |
| Exterior dimensions (W × D × H) | 48¼ × 14⅛ × 11½ inches (body; excludes drain) |
| Overall depth including drain | 14¾ inches |
| Interior dimensions (W × D × H) | 33¼ × 12 × 6½ inches |
| Net capacity | 1.3 cu. ft. |
| Sliding doors | 2 |
| Bottom shelves | 3 |
| Shelf dimensions (L × D) | 11 × 11 inches |
| Electrical | 115V / 60Hz / 1 phase |
| Full-load amperage | 4.6 A |
| Plug | NEMA 5-15P |
| Cord length | 4⅞ ft. |
| Compressor | 1/6 HP |
| Refrigerant | R-290 |
| Holding temperature | 35–41°F |
| Recommended operating conditions | At or below 75°F and 55% relative humidity |
| Exterior construction | 304 stainless steel |
| Front glass | Curved |
| Chef-side doors | Low-E coated, tempered glass |
| Certifications | cETLus; ETL |
| Net weight | 76 lb |
| Manufacturer gross/crated weight | 86 lb |
Body depth excludes the ⅝″ drain. Manufacturer shipping weight may vary with additional protective packing. Case dimensions are not crated dimensions.
Warranty: 2 year parts and labor warranty, plus an additional 3 year compressor warranty (U.S.A. only). Manufacturer terms and exclusions apply.
Manufacturer Resources & Downloads
- Specification Sheet — PDF
- User Manual — PDF
- Installation Guide — PDF · Manual section
- CAD Drawings — ZIP · Manufacturer archive includes both condenser orientations
- Warranty Information — PDF
- Care & Cleaning — PDF · Manual section
