COMMERCIAL NOODLE MACHINES
Commercial Noodle Machines for Restaurant Production
How commercial noodle machines differ across noodle rollers, dough sheeters, noodle cutters, and integrated noodle-making systems—and where the Daekwang DK-ND-1 fits for restaurant noodle production and commercial kitchen use.
THE USEFUL STARTING POINT
Start with the noodle you want to make—and the work you want to remove
If you're trying to make ramen, udon, kalguksu or another fresh noodle in-house, the useful starting point isn't the label on the machine. Start with the dough your kitchen can prepare, the production step consuming the labor, and the finished noodle you need to produce.
A restaurant looking for a “ramen machine” may actually need a roller and cutter. Another kitchen may need equipment that takes over mixing, sheeting and additional stages of production. Both can be sold as commercial noodle machines, but they begin with different inputs and leave very different amounts of work to the operator.
-
Prepare the dough
Measure and mix the formula; develop, knead, and rest it as the recipe requires. This work is outside DK-ND-1.
-
Form and reduce the sheet
A cohesive portion passes through the rollers. Repeated passes progressively form and thin the sheet.
-
Cut the final sheet
The installed slitter divides the sheet into strands. Sheet thickness and cutter geometry remain separate dimensions.
-
Finish for service
The kitchen still catches, cuts to length or portions, dusts or rests, stores, cooks, and cleans as its process requires.
A roller or dough sheeter forms and reduces a sheet; a cutter or slitter divides the sheet into strands. “Noodle maker,” “noodle machine,” and cuisine labels such as “ramen machine” may describe one function, several functions, or a more integrated production system.
For any machine, ask what must be ready on the worktable before production begins, which stages the machine performs, and what still has to happen after the product exits.
What “automatic” means on a compact roller/cutter
On a compact roller/cutter, automatic may mean that motors drive the rollers and cutter. It does not necessarily mean that ingredients enter at one end and weighed portions leave the other. Always compare the first accepted input, the last documented output, and the operator work between them.

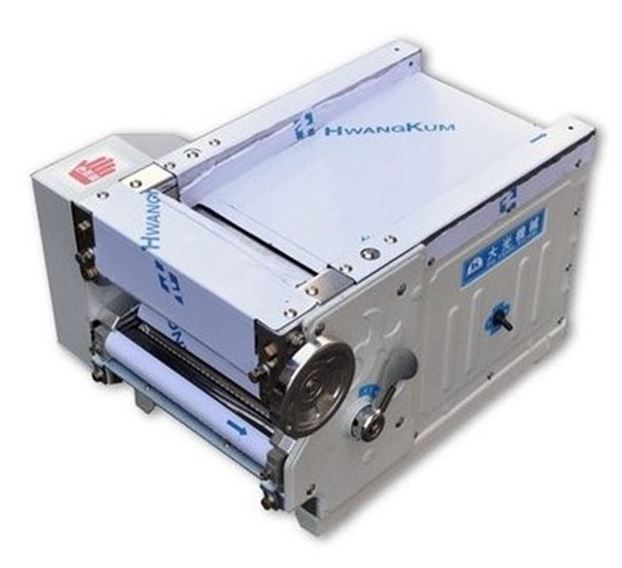

DK-ND-1
What the Daekwang DK-ND-1 actually does
DK-ND-1 is a compact roller/cutter for prepared dough. Mixing, recipe-specific development and resting happen before the machine; after cutting, the operator catches and finishes the strands. Confirm exact roller settings and operating sequence from the exact-model manual or manufacturer.
Prepared dough in → progressively reduced sheet → installed cutter → noodle strands out
The rollers first turn a cohesive, portionable mass into a workable sheet. Subsequent passes reduce that sheet toward the target thickness. On the cutting pass, the cutter drive is engaged and the installed slitter separates the sheet into strands.
The roller-gap adjustment controls reduction; it does not select strand width. The cutter controls the lateral cut; it does not mix, knead, mature, or formulate the dough. Automatic length cutting, weighing and portioning are not verified DK-ND-1 functions; plan for those steps outside the machine unless exact-model instructions confirm otherwise.
Pass count, gap sequence, folding or compounding, flour dusting, and rest time depend on the dough and operating method. Use the manual for the actual machine rather than treating any one pass sequence as universal.
Before DK-ND-1
The operator weighs ingredients, mixes and develops the dough, allows any required rest or maturation, and prepares a portion the rollers can accept. The machine has no documented ingredient mixer or resting chamber.
Inside and after DK-ND-1
The operator sets the roller gap, feeds and retrieves the sheet through progressive reductions, engages the cutter for the final pass, catches the strands, and completes any cutting to length, portioning, dusting, resting, storage, cooking, and cleaning.

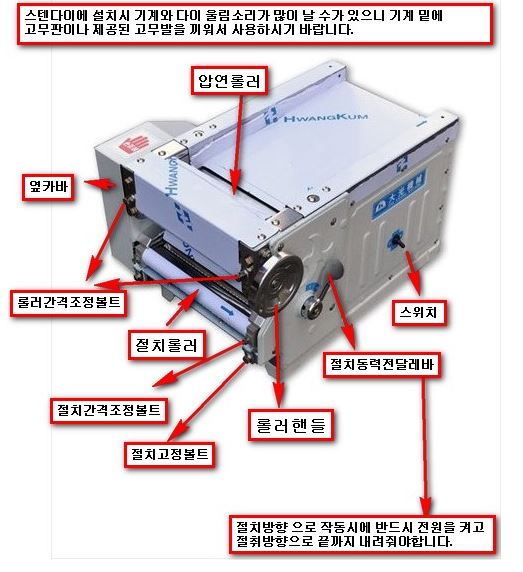

DK-ND-1 controls and working components
- Pressing / sheeting roller
- Forms and reduces the dough sheet.
- Roller-gap adjustment
- Changes the reduction and target sheet thickness.
- Cutting / slitter roller
- Divides the final sheet into noodle strands.
- Cutter drive lever
- Transfers power to the cutting stage when it is used.
- Cutter fixing and gap bolts
- Identify where the assembly is secured and adjusted; they do not establish an approved removal procedure or replacement compatibility.
- Switch and roller handle
- Operate the powered rolling path and its mechanical controls.
| Specification | ERS DK-ND-1 | What to confirm |
|---|---|---|
| Model | Daekwang DK-ND-1 | Use the full model plus the physical nameplate and serial or revision for unit-specific work. |
| Published size | 500 × 600 × 380 mm 19-3/4 × 23-1/2 × 14-7/8 in. | These are nominal published dimensions, not exact metric/inch conversions. Confirm the physical unit and working clearances. |
| U.S. listing voltage | 110 V | 110 V alone does not supply the frequency, current, wattage or plug configuration; read the nameplate before installation. |
| Cutter label | 2 mm blade | Confirm measured strand width, profile, part number and revision compatibility; the 2 mm label alone does not answer them. |
| Sanitation / electrical listings | No NSF; no ETL | Confirm the requirements of the local authority, electrician, insurer, landlord, and project before purchase or installation. |
| Capacity | Not verified | Do not estimate hourly output from motor speed or compare it with an integrated system measuring a different production boundary. |
THE FINISHED CROSS-SECTION
Thickness and width are two different decisions
Rolling controls sheet thickness; the installed cutter controls lateral width and profile. Neither dimension identifies a complete noodle style.
The rollers determine sheet thickness
Progressive reduction controls the dimension through the sheet. The roller setting is a process target, not always the final measured thickness: elastic dough can recover after it leaves the gap.
The cutter determines width and edge profile
The installed grooves divide the sheet laterally. Changing the cutter can change strand width or profile, but it does not change the final sheet thickness, dough formula, hydration, gluten development, or resting history.
Measure sheet thickness and cutter width separately
Actual sheet thickness supplies one dimension. Cutter groove width and shape supply the other. Springback and cutter profile can keep the finished cross-section from behaving like a perfect rectangle, so a nominal gap or width is not a substitute for measuring the output.
Japanese roller-machine documentation often identifies slitters by a number: on Yamato’s documented system, “#20” means approximately 20 strands across 30 mm, or about 1.5 mm per strand. That convention is useful for understanding Japanese specifications, but it is not the naming system for DK-ND-1 and should never be converted into a Daekwang part number.
A replacement cutter needs more than a width label. Match the exact model and revision, cutter markings, groove profile, overall body, shaft or mounting arrangement, drive gear, and fixing points. Cross-brand or look-alike fit should not be assumed.
RAMEN, UDON, KALGUKSU & SOBA
Can the same machine make ramen, udon or kalguksu?
DK-ND-1 is a sheeted-noodle roller/cutter, but compatibility with every formula within a cuisine family is not verified.
What the machine can control
- Progressive sheet reduction and the target roller gap.
- Strand width and edge profile from the installed cutter.
- A repeatable powered path through rolling and slitting.
- The physical limit of the roller and cutter assemblies.
What the dough and process still control
- Flour or grain blend, salt, alkaline ingredients, and other formulation choices.
- Hydration, mixing, kneading, and dough development.
- Resting or maturation, temperature, folding or compounding, and dusting.
- Measured thickness, portion length, storage, cooking, and the final eating quality.
Ramen, udon, and kalguksu can all include rolled-and-cut production, but their formulas and handling can differ substantially. A wider cutter sold with an udon or kalguksu shorthand does not prove that the machine performs the mixing, development, resting, hydration handling, or final-thickness work required by that style.
Soba needs the same restraint. A cutter can divide a cohesive buckwheat-containing sheet, but buckwheat proportion and dough handling materially affect whether the sheet can be formed and reduced. Do not assume DK-ND-1 can process every soba formulation.
Choose a machine that can handle the dough state and sheet geometry your tested process requires, then confirm the exact cutter and revision. Do not choose from the cuisine word alone.
DIFFERENT PROCESS RESPONSIBILITIES
Compact roller/cutter vs. a more integrated noodle-production system
DK-ND-1, Richmen and TP-4 begin with different inputs and take responsibility for different production stages. They illustrate process scope rather than a brand ranking; confirm the market configuration of any unit.
| System | Starting input | Documented machine responsibility | Exit and remaining work |
|---|---|---|---|
| Daekwang DK-ND-1 | Prepared, cohesive dough portion | Rough sheet formation, progressive rolling/reduction and slitter cutting; confirm exact settings against exact-model documentation. | Cut strands; operator handles feed, repeat passes, catching, length or portion, downstream rests, storage, cooking, and cleaning. |
| Yamato Richmen Type I / Gold | Measured flour and liquid ingredients | Built-in mixing, rough sheeting, compounding, progressive reduction, and cutting; Gold adds automatic feed, reel sensing, and dusting support. | Cut noodles; rests, hopper or sheet transfers, gap decisions, collecting, and post-cut maturation remain operator-paced. |
| Sanuki Menki TP-4 | Measured ingredients | A linked system described in Japan with mixing, maturation conveyor, two-sheet compounding, continuous reduction, and cutting. | Cut strands; the project-specific line scope still has to define portioning, packing, storage, cooking, cleaning, and installation. |
An all-in-one cabinet can combine several functions while still requiring operator transfers. A linked automatic line can carry dough through more stages without those transfers.
Sanuki’s Japanese TP-4 page includes a maturation conveyor; its shorter English summary lists three modules and does not mention that stage. The quoted project scope—not the phrase “fully automatic”—has to settle which stages a particular line includes.
Yamato rates its current U.S. Richmen Type I at 100–150 portions per hour, while Sanuki rates the Japanese TP-4 line above 2,000 portions per hour. DK-ND-1 has no verified hourly capacity. Compare output only with a common portion definition, recipe, rest time, staffing assumption and production boundary.
Official process and system references
U.S. DK-ND-1 ELECTRICAL REQUIREMENTS
Which electrical specifications apply to a U.S. DK-ND-1?
The DK-ND-1 sold by ERS is listed at 110 V. Related Korean-market Daekwang roller/cutters may use 220 V and differ in body or guard configuration. Do not apply those values to a U.S. DK-ND-1.
- ERS DK-ND-1The ERS unit is listed as DK-ND-1 at 110 V, with published body dimensions and a 2 mm cutter label. Confirm the remaining specifications on the physical machine.
- Related Korean-market machinesUse them to understand the roller/cutter class and domestic variations, not to copy 220 V, wattage, dimensions, or a factory model name onto DK-ND-1.
- Exact U.S. machineRead the full nameplate, model, serial or revision, frequency, current, wattage, plug, and installed cutter before installation or service.
- Local installationConfirm the circuit, plug, sanitation and electrical requirements, insurer or landlord rules, and working clearances for the actual project.
Do not fill the missing U.S. wattage or frequency with the 400 W / 60 Hz values published for related Korean 220 V machines. The physical DK-ND-1 nameplate is the machine-specific reference.
The DK-ND-1 sold by ERS is not NSF-listed or ETL-listed.
Those statuses apply to the ERS DK-ND-1, not automatically to every Daekwang machine or revision. Confirm local requirements before purchase or installation.
CUTTERS, DOCUMENTS & ROUTINE OWNERSHIP
Identify the installed machine before ordering a cutter or following instructions.
A width label is not a replacement-part number. A related domestic procedure is not the manual for a U.S. DK-ND-1.
For machine identification
- Photograph the complete nameplate, model, serial, revision, and motor label.
- Include the plug and all electrical wording in one legible set.
- Photograph the full machine, side cover, feed, discharge, controls, and any included tools or guides.
- Keep any packing list and exact-model manual supplied with or recovered for that unit.
For cutter identification
- Record every cutter marking and the measured groove width and profile.
- Show the complete cutter body, shaft or mount, drive gear, fixing points, and adjustment hardware.
- Confirm the exact DK model and revision with ERS or the manufacturer before ordering.
- Do not assume that a Korean millimeter label or a Japanese cutter number proves fit.
Manual and cleaning status
No verified public DK-ND-1 operation and cleaning manual is currently available. Disconnect power before cleaning or cutter work, and follow the exact-model manual if supplied or recovered. Do not improvise a removal, adjustment, lubrication, or wash procedure from a visually similar model. If the manual is missing, send ERS the identification photographs above before service or parts work.
CHOOSING BY PRODUCTION PROCESS
Choose the machine by the production work it needs to perform.
A machine is a good fit when its starting input matches the dough your kitchen can consistently prepare and its exit removes the labor bottleneck you intended to solve.
- Define the input. Ingredients, mixed crumbs, rested dough, a rough sheet, or a final sheet are not interchangeable starting points.
- Define the output. Ask whether the machine exits a sheet, continuous strands, cut lengths, or weighed portions.
- Measure the geometry. Record actual sheet thickness, cutter width and profile, strand length, and springback from a tested dough.
- Count the operator steps. Include mixing, rests, repeated passes, transfers, dusting, catching, portioning, cleaning, and changeover.
- Match the U.S. unit. Confirm nameplate, plug, listings, dimensions, clearance, manual, cutters, parts path, and local requirements.
- Compare capacity on the same basis. Use the same recipe, portion weight, staffing, rest allowance, and start/end point before comparing hourly claims.
If the kitchen already has a proven way to mix, develop, and rest dough, DK-ND-1 can be evaluated as a compact powered sheeting-and-cutting step. If the bottleneck begins at ingredient mixing or involves repeated transfers and rests, a more integrated cabinet or linked line may be the relevant equipment class.
Use the noodle style to define the dough behavior and finished geometry to test after the production process is mapped.
