Restaurant Furniture Dimensions, Layout & Accessibility

1. Restaurant Furniture Dimensions & Clearances: Quick Reference

Standard Commercial Furniture Dimensions

The following measurements establish common starting points for commercial restaurant furniture. Actual dimensions vary by product, construction, seating arrangement, and intended service.

These figures describe commonly encountered commercial products and arrangements, not mandatory national dimensional standards.

Common Restaurant Table Sizes

Nominal capacity is not a declaration that the specified number of guests will have adequate dining surface, circulation, comfort, or accessible accommodation.

Accessible Dining: Federal Minimums

These are selected federal requirements, not a complete determination of accessibility. The full knee/toe profile, positioning, maneuvering, routes, dispersion, and any additional applicable state or local provisions must be considered.

A restaurant may also need circulation widths or other dimensional allowances exceeding these selected federal minimums.

The rest of this reference establishes how these dimensions interact and when nominal sizes are insufficient.

2. How Restaurant Furniture Dimensions Are Actually Measured

Overall Size, Usable Size and Installed Size

Commercial furniture specifications typically report the maximum external dimensions of an object. Those dimensions are necessary, but they do not necessarily describe the portion available to the guest.

A chair can measure 20 inches overall while offering a narrower usable seat between its armrests. A chair with a 22-inch overall depth may have a much shorter usable seat depth because its backrest occupies part of the footprint.

Three measurements should be distinguished:

• Overall dimension: The maximum external size of the furniture component.
• Usable dimension: The portion available for seating, legroom, serving, or another intended function.
• Installed dimension: The completed assembly as positioned within the restaurant.

These may differ substantially.

For example, a tabletop specified as 30 × 48 inches describes its nominal external surface. It does not establish the distance between table legs, the dimensions of its pedestal footprint, or its finished height once mounted.

Nominal Dimensions Versus Actual Dimensions

Catalog dimensions may be rounded, expressed as nominal sizes, or measured at specific reference points. Custom fabrication, upholstery, assembled supports, leveling hardware, and installation conditions can change the final geometry.

For a table, confirm:

• Finished surface height above the floor.
• Actual tabletop length, width, shape, and thickness.
• Apron depth and lowest structural obstruction.
• Base or leg position.
• Floor-contact footprint.
• Mounting hardware and any adjustment range.

For a chair or stool, confirm overall dimensions, usable seat dimensions, finished seat height, arms, back projection, and footrest or leg footprint.

Custom booths require additional measurements from the finished wall face, seat reference, back construction, and actual tabletop position.

Measuring in Plan and Elevation

A dimension is meaningful only when its reference points are clear.

Common reference points include:

An otherwise accurate number can become misleading when reproduced with different reference points.

Furniture Has Different Operating Positions

The area occupied by furniture changes during use.

A dining chair parked beneath a table, a chair occupied by a guest, and a chair pulled backward for entry or exit produce different spatial conditions. A rotating bar stool similarly extends differently depending on backrest orientation.

The actual occupied position should be considered when checking adjacent circulation, guest access and service movement.

No universal chair-pullback allowance can substitute for the complete furniture geometry and the conditions of its use.

Installation Tolerances

Construction tolerances and planning margins must also remain distinct.

A manufacturer may publish fabrication tolerances for a custom booth or welded frame. Those tolerances do not automatically authorize deviations from accessibility requirements. Conversely, a designer may incorporate a larger planning margin to accommodate actual site conditions without representing that margin as a legal minimum.

Commercial furniture should be specified from the finished conditions that will exist when installed—not exclusively from the nominal dimensions shown on a preliminary drawing.

3. Seating Geometry, Table Heights & Occupied Footprints

Chair Height Relative to Table Height

The relationship between the dining seat and the table surface governs posture, reach, and usable space.

Conventional commercial dining tables commonly finish at approximately 28–30 inches, with chair seat heights typically around 17–19 inches.

A frequently used starting relationship is approximately 10–12 inches between the finished seating surface and the finished tabletop surface. It is a planning convention rather than a universal ergonomic requirement.

The finished position of an upholstered seat may differ from its unloaded catalog measurement. Seat firmness, upholstery construction, back angle, and how a guest sits all affect the actual relationship.

The correct pairing is the one that accommodates the intended seated position while preserving usable underside space.

Finished Tabletop Versus Underside Clearance

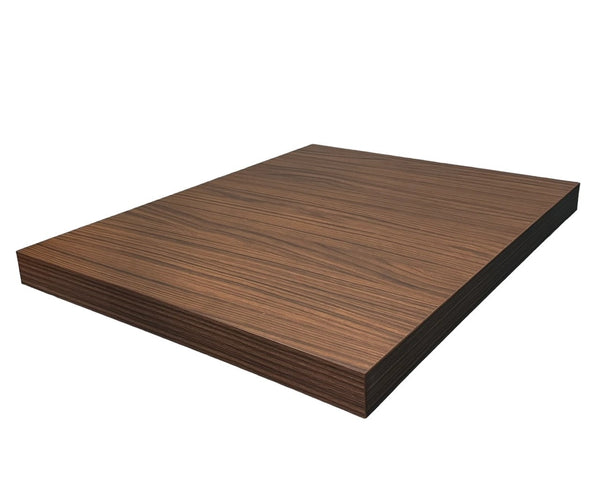

Consider a finished dining table measuring 30 inches high, with a 2-inch-thick tabletop and a chair seat height of 19 inches.

Both the 11-inch and 9-inch measurements are correct. They describe different relationships.

If the assembly contains a structural apron, cross brace, mounting plate, or projecting base component, its lowest underside clearance may be smaller still.

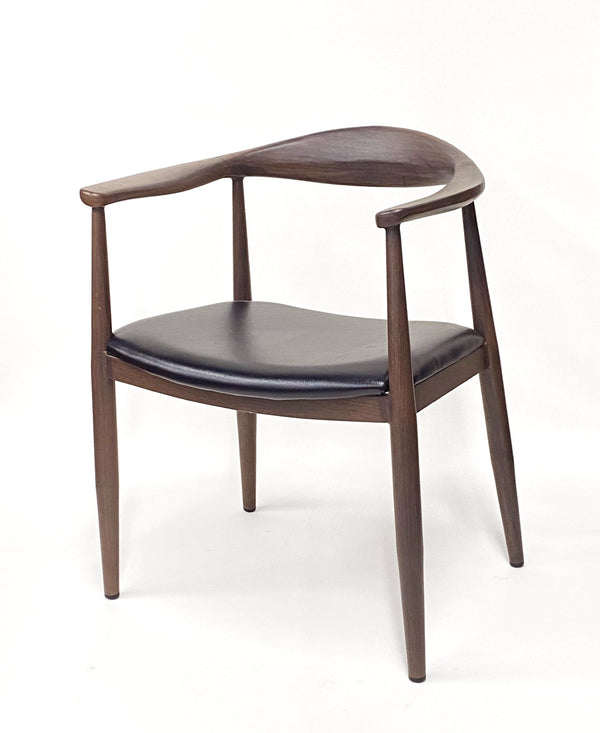

Armchairs require particular attention. An armrest can interfere with a table apron or underside even where the guest's seat-to-surface relationship is otherwise suitable.

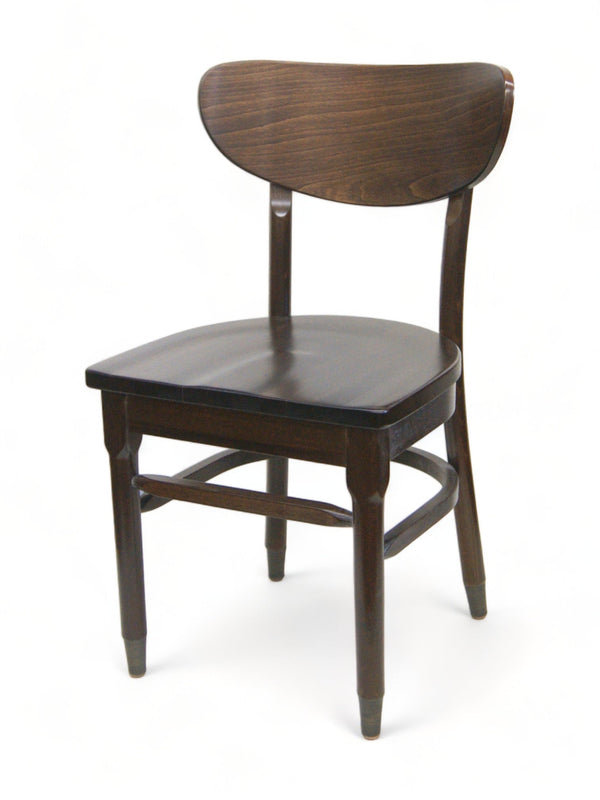

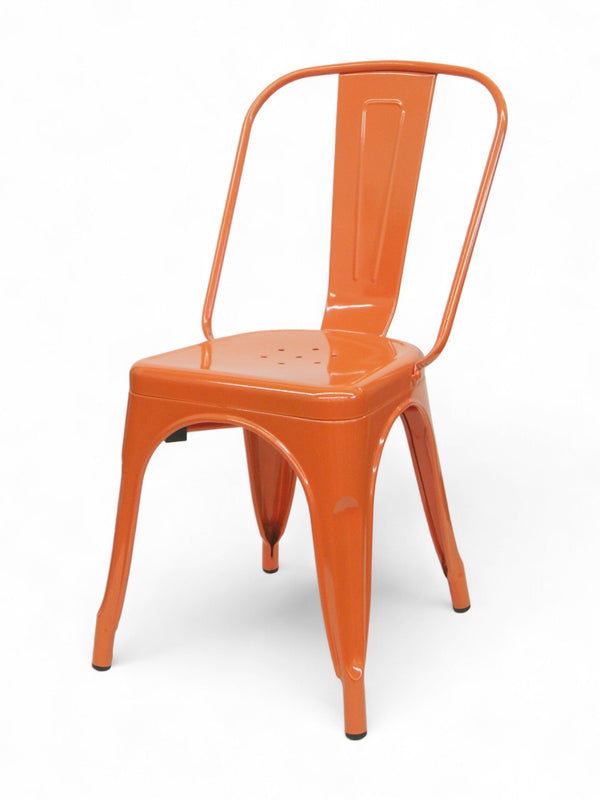

Chair Width Along a Table Edge

Chair overall width and usable seat width establish how many positions may fit along a table edge.

Two chairs measuring 18 inches overall require at least 36 inches of combined physical width before considering gaps between frames, arms, guest movement, table supports, and service needs.

That does not mean every 36-inch-long edge will comfortably serve two diners.

Seat geometry, frame projection, the number and arrangement of guests, and tabletop requirements must all be considered.

A four-person rectangular table with two guests on each long edge has a different occupied shape from a four-person square table with one guest on each side.

Overall Depth and Occupied Seating

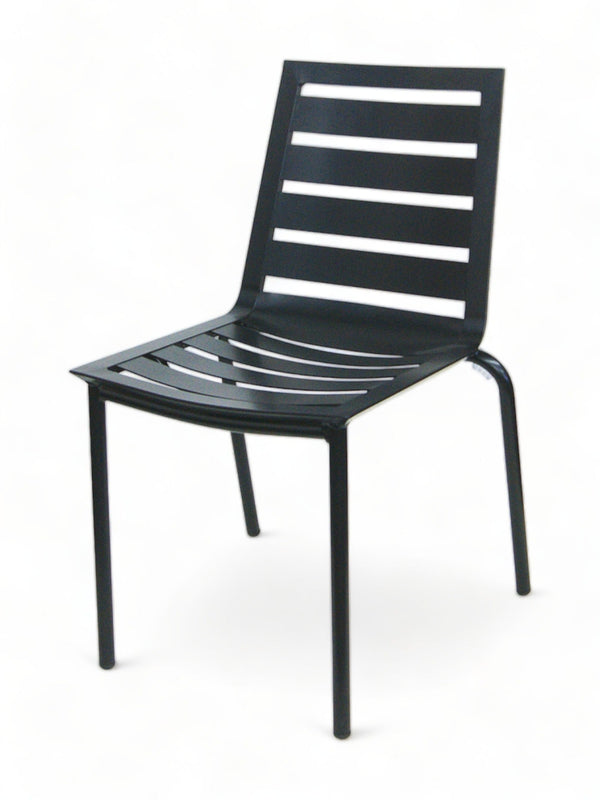

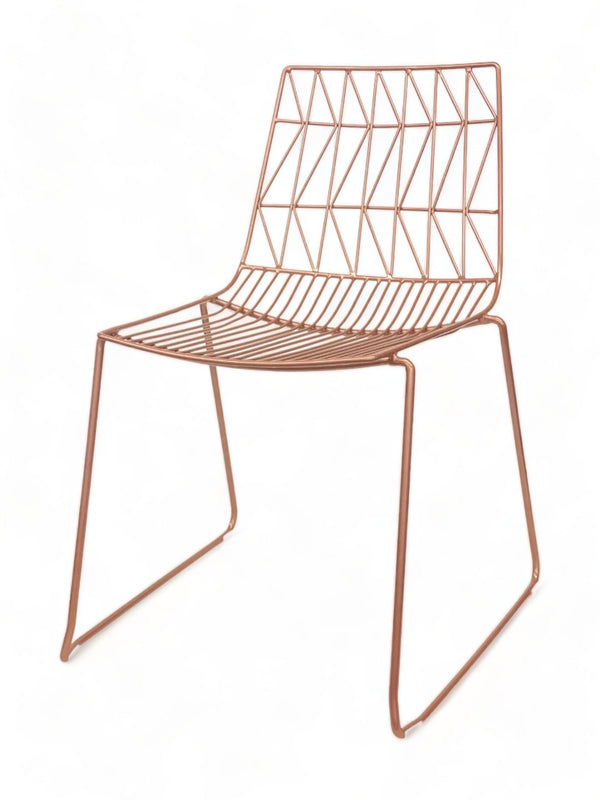

In the dimensional research, a commercial chair measuring 18 inches wide and 22.5 inches deep was paired with two different four-person tabletops.

The corresponding rectangular bounding areas are 45.56 and 25 square feet.

Those figures describe geometric boundaries, not actual dining-room area required.

The larger square bounding rectangle contains substantial empty corner space. When summing only the non-overlapping tabletop and four chair rectangles, the component areas are approximately 20.25 and 21.25 square feet, respectively.

The rectangular arrangement has a much smaller bounding rectangle, but slightly greater summed furniture-component area.

Neither measurement includes complete guest movement, code-defined circulation, or service allowances.

The result establishes that arrangement geometry matters. It does not establish a universal space-efficiency advantage for either table configuration.

The Parked, Occupied and Exit Positions

A chair's published overall depth is only one of the dimensions that matters in use.

The room must accommodate the selected furniture when a guest sits at the table, approaches the seat, stands, and moves away.

Where guests are seated opposite each other across an aisle, moving chairs can reduce the space available for passage. At wall-side seating, a chair may need to move backward toward a wall, column, or neighboring table.

These are separate from the legal requirements governing accessible routes and defined egress aisles.

For a precise layout, model the actual selected chair in the relevant use conditions. Retain additional space where needed for service movement and guest access.

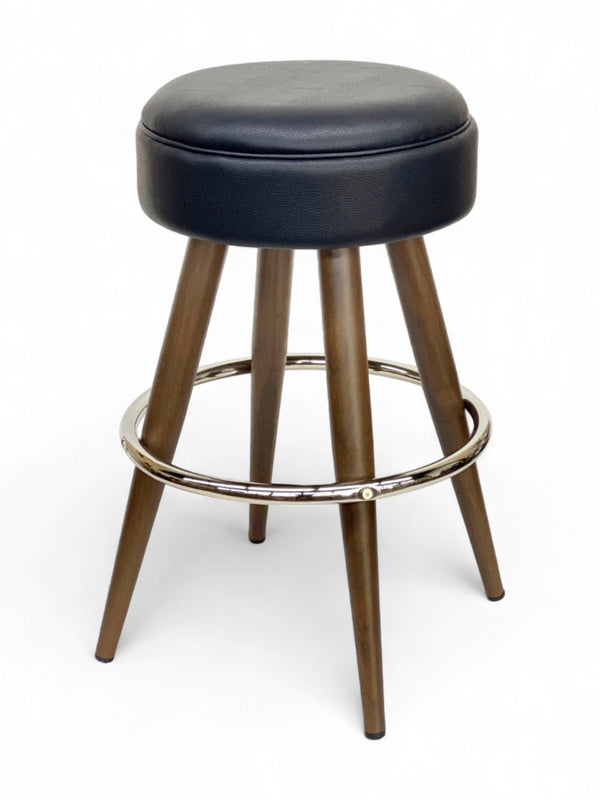

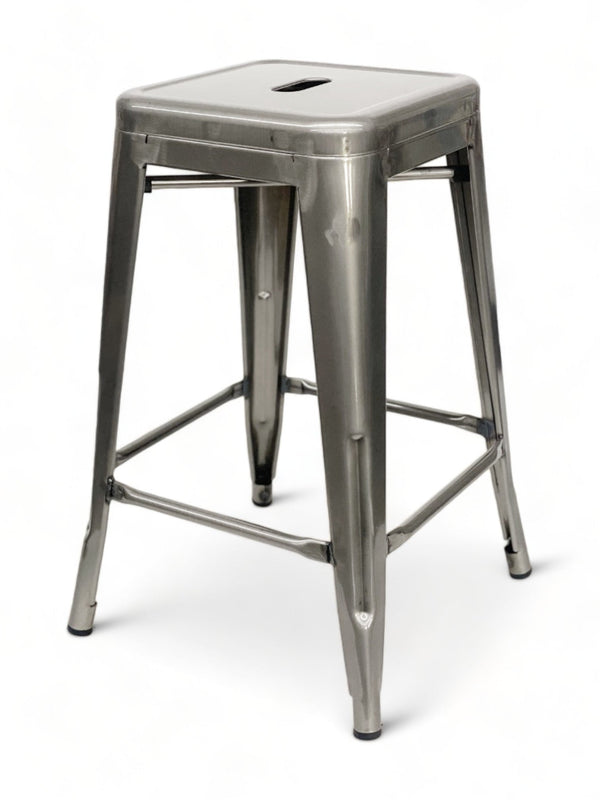

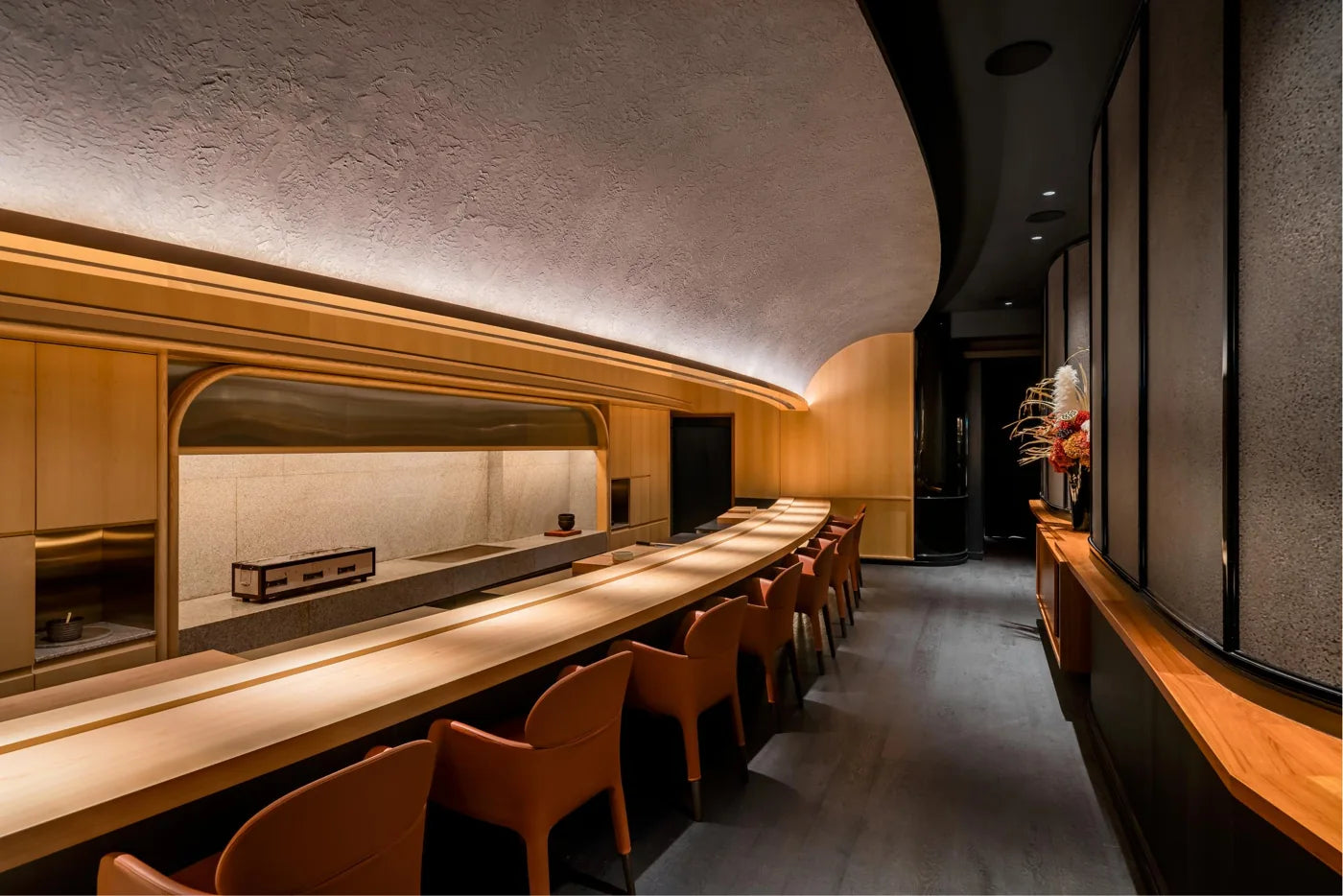

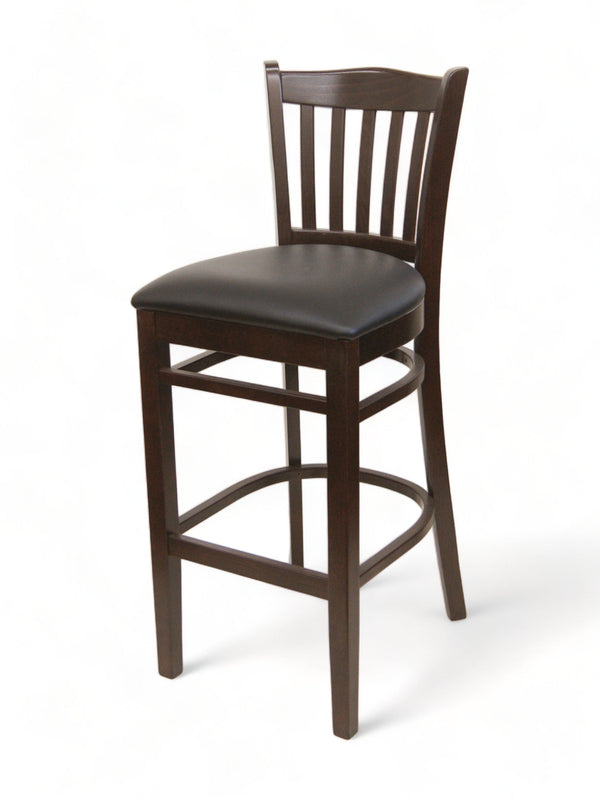

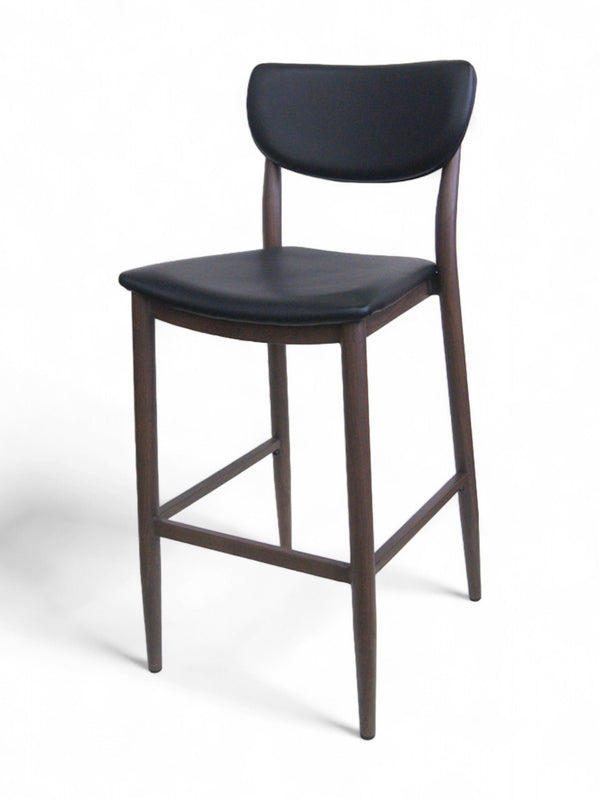

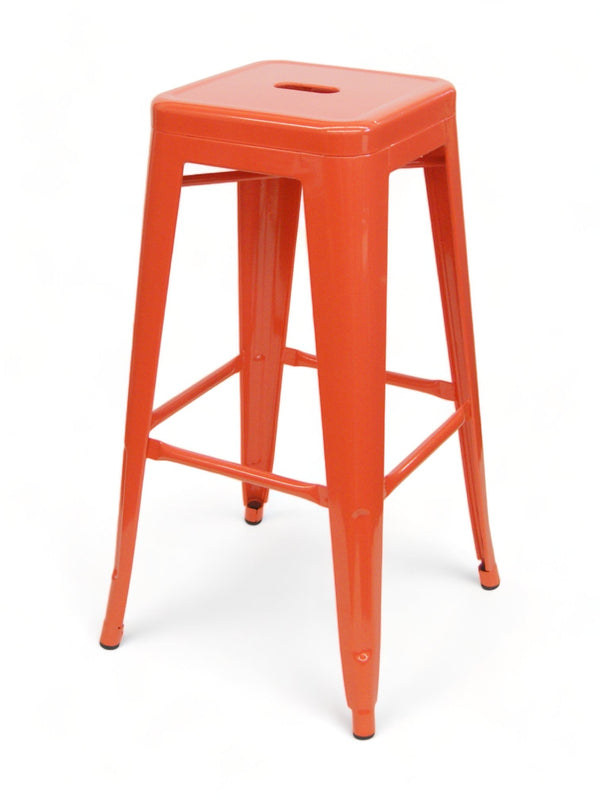

Counter and Bar Stools

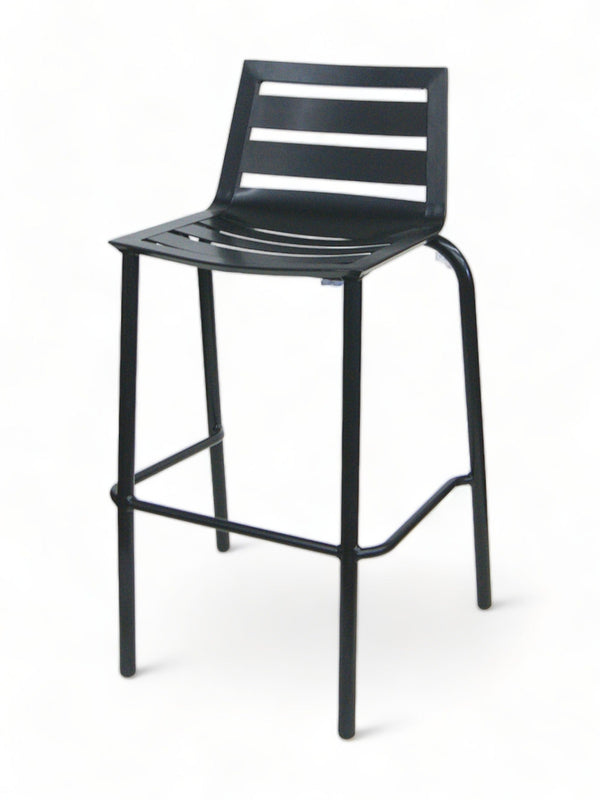

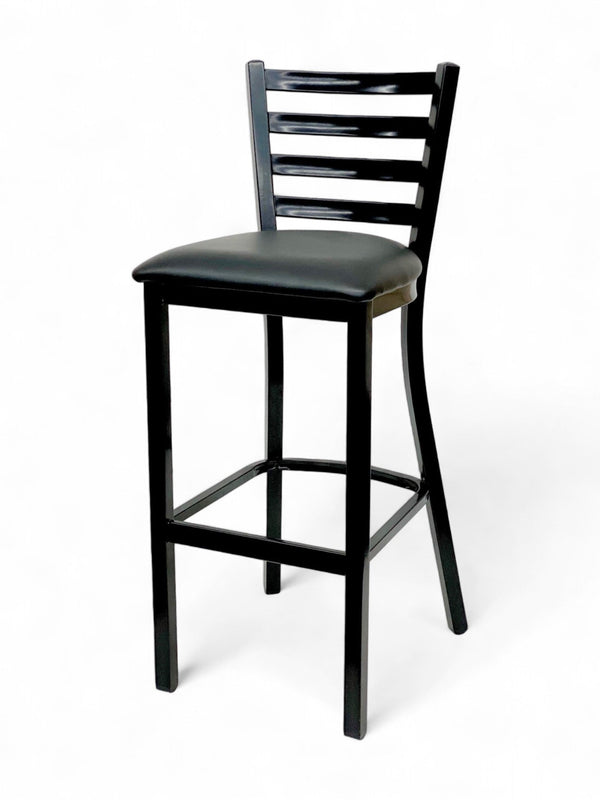

Counter stools and bar stools require the same attention to complete geometry.

Common pairings include:

Check the actual seat-to-counter relationship, armrests, footrest position, stool back, floor-contact footprint, and the space occupied by seated guests.

A stool with a high back may project substantially behind a counter. A swivel stool can change orientation without the base moving, shifting its effective occupied footprint.

Counter seating also needs to account for how the diner approaches the stool and where service occurs.

For elevated counters, accessible dining positions require separate consideration under the applicable requirements. A conventional bar stool does not establish accessibility.

The correct seating specification is the coordinated chair or stool, tabletop, support geometry and occupied position—not an isolated seat height.

4. Table Dimensions, Seating Arrangements & Usable Dining Surface

Table Size by Seating Configuration

A tabletop must accommodate both the seated guests and the objects required by the meal.

A 24 × 24-inch café table may serve two guests having coffee and small plates. The same surface can become severely constrained by two large dinner plates, beverages, condiments, and shared dishes.

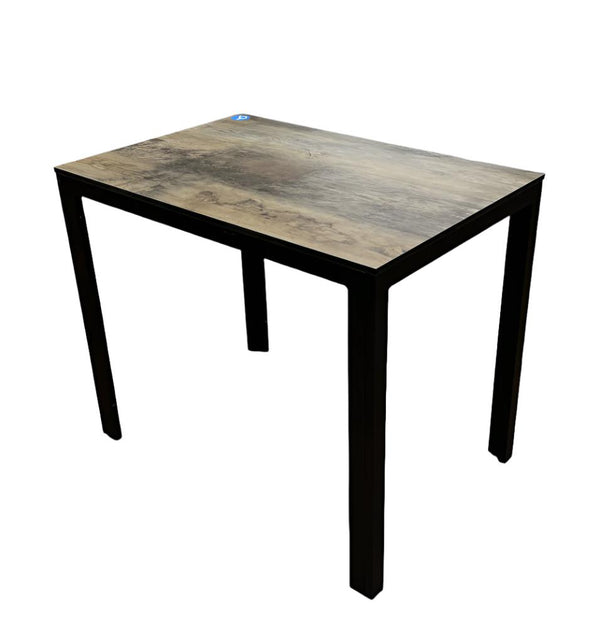

A 30 × 48-inch rectangular table is a common four-person choice, but the number of chairs it accommodates says little about the surface available for actual service.

Table dimensions should be evaluated against the restaurant's real menu and serving arrangement.

Square, Rectangular and Round Tables

Each shape offers different geometric advantages.

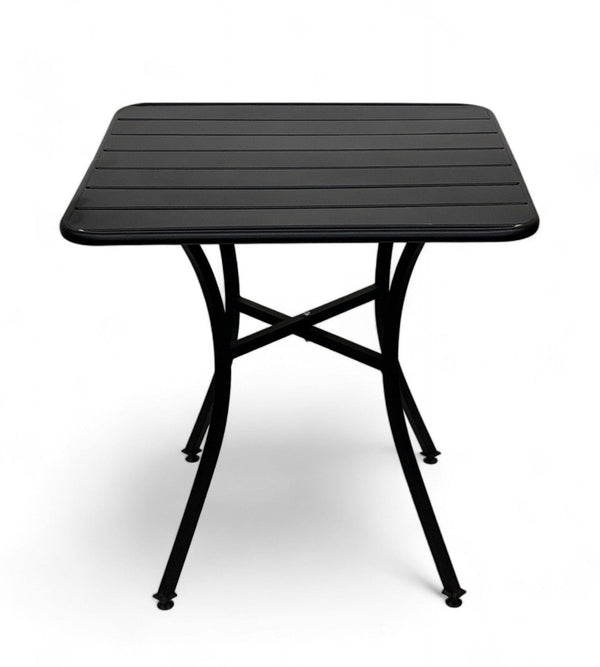

Square tables provide consistent edge dimensions and are easy to align within regular rows or combine into selected larger configurations.

Rectangular tables concentrate guest positions along their long edges. They are particularly useful along walls, banquettes, and in dining environments where service occurs from defined sides.

Round tables accommodate face-to-face group dining and shared center arrangements. Their useful edge length varies continuously around the circumference, however, and the nominal diameter must be assessed alongside actual chair widths and plate placement.

A 60-inch round has a surface area of approximately 19.63 square feet. Its large central area can support shared serving arrangements, but usable reach, turntable dimensions if present, table-base geometry, and perimeter seating still govern the final design.

The shape is only one of the inputs.

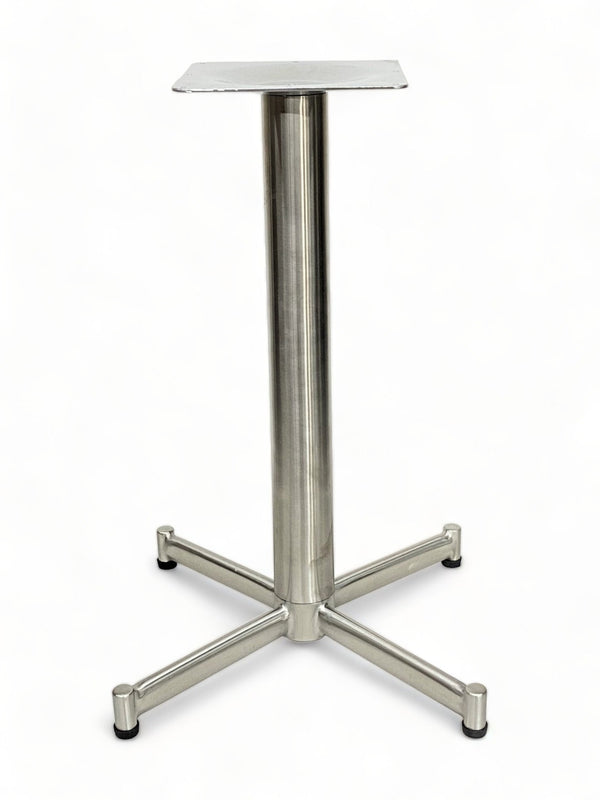

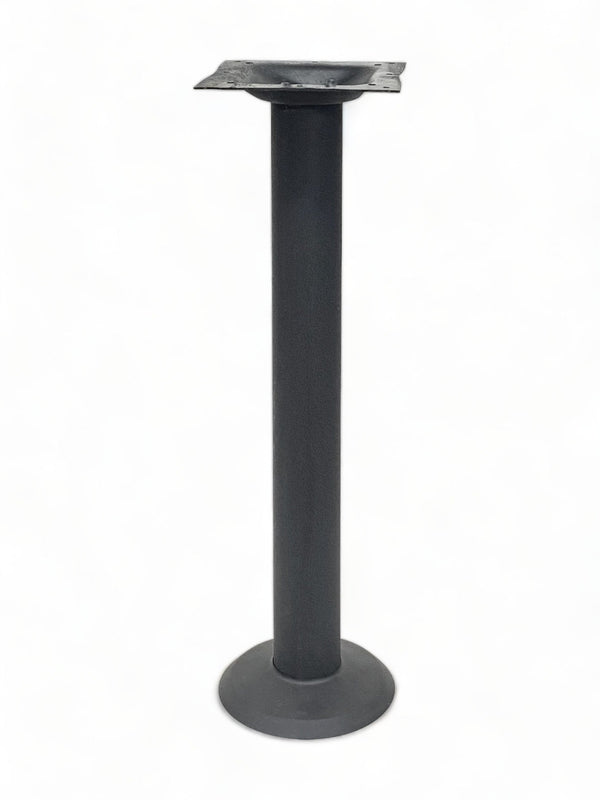

Table Edges, Supports and Legroom

Tabletop dimensions do not establish seating clearance beneath the table.

Four-leg tables may create conflicts at corner seating positions. Pedestal tables provide different opportunities for chair placement, but their floor-contact feet and central columns can interfere with accessible knee/toe space or guest legroom.

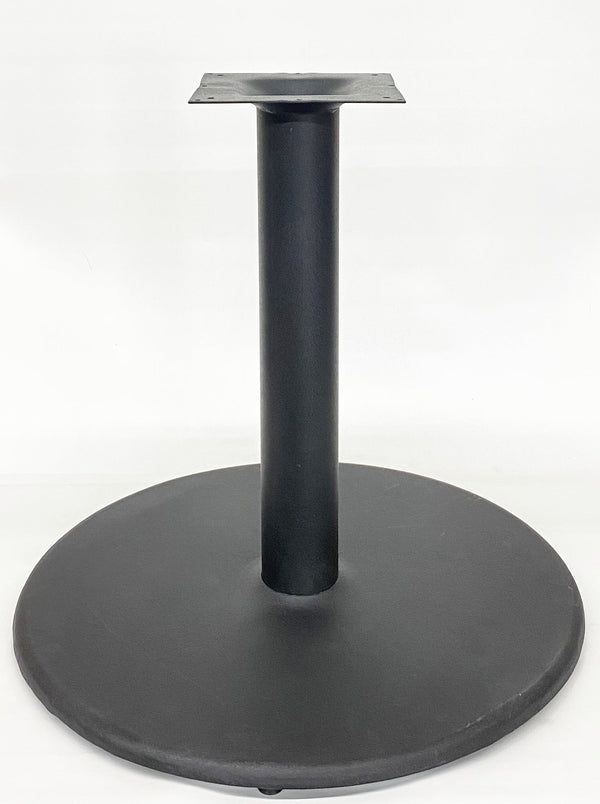

A nominal 30-inch square top paired with a centered 17.5-inch square base foot leaves a 6.25-inch inset between the nearest tabletop edge and the foot boundary in plan.

With a 21.5-inch foot, the inset falls to 4.25 inches.

These calculations are useful for identifying potential conflicts. Whether either assembly accommodates a particular seated guest or accessible approach depends on its full three-dimensional geometry.

The mounting interface must also be verified. A table base and tabletop are not interchangeable merely because their nominal sizes appear compatible.

The Dining Surface Occupied by Plates and Servingware

The importance of actual tabletop objects becomes clear in a four-person shared-dining arrangement.

Consider four 11-inch round dinner plates and one centrally positioned 12 × 9-inch oval serving platter.

In a controlled plan study, the four plates were positioned near the two long table edges, while the oval platter was centered.

The study compared 48 × 30, 48 × 36 and 48 × 42-inch tabletops.

The initial conservative rectangular bounding-box model showed a slight overlap between the nearest plates and the platter on the 30-inch-deep table. When the platter was represented by an idealized oval, its contours cleared those plates under the same positioning assumptions.

That is an important technical distinction: a bounding rectangle is useful for conservative screening, but it does not necessarily describe a shaped object's actual perimeter.

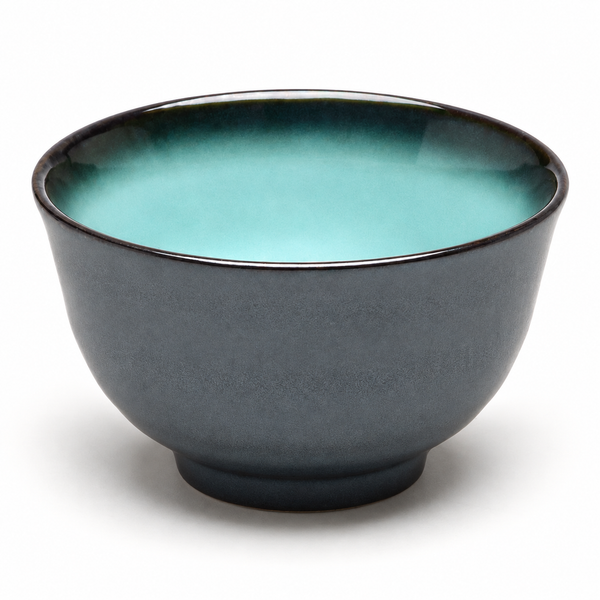

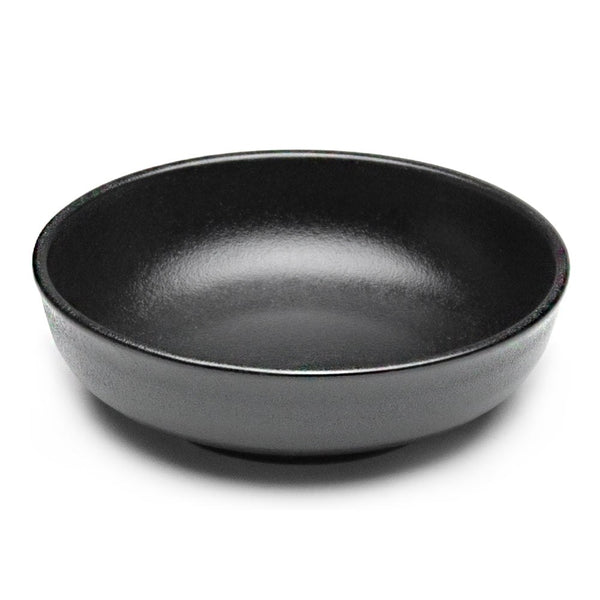

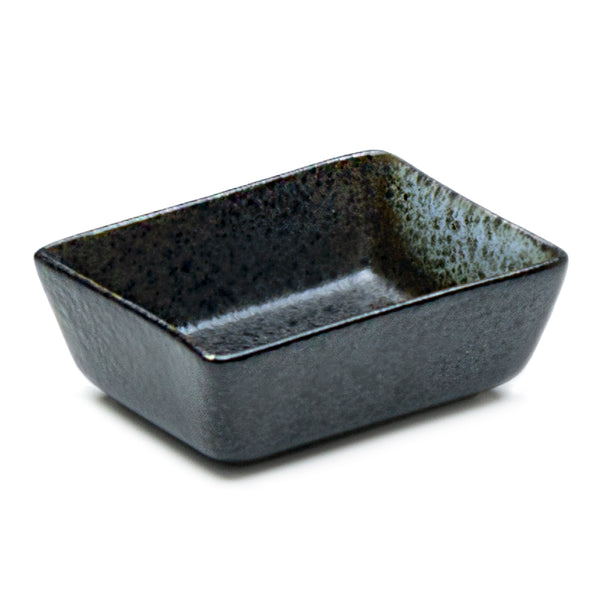

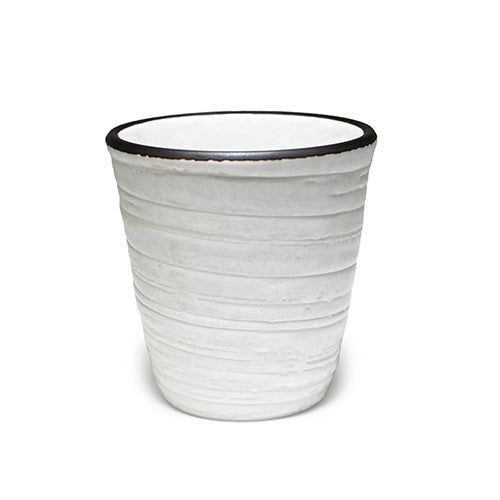

The real table must accommodate additional objects such as beverages, condiments, utensils, side dishes, and serving equipment.

The tabletop arrangement—not surface area alone—determines how well a particular table will function.

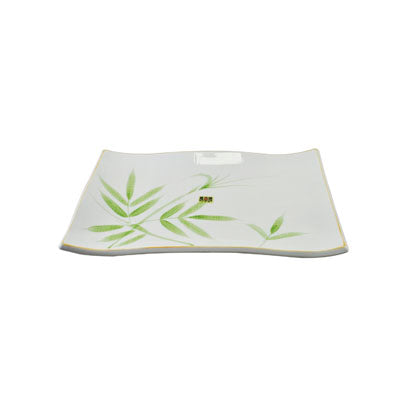

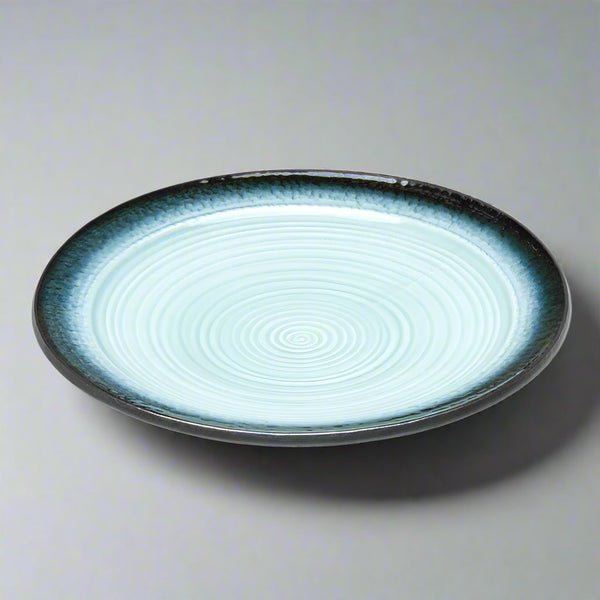

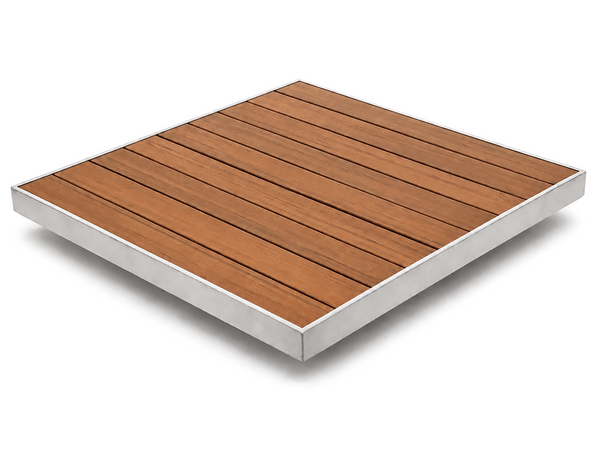

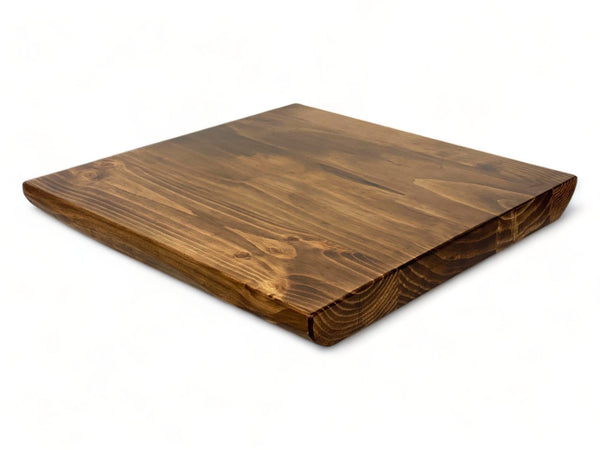

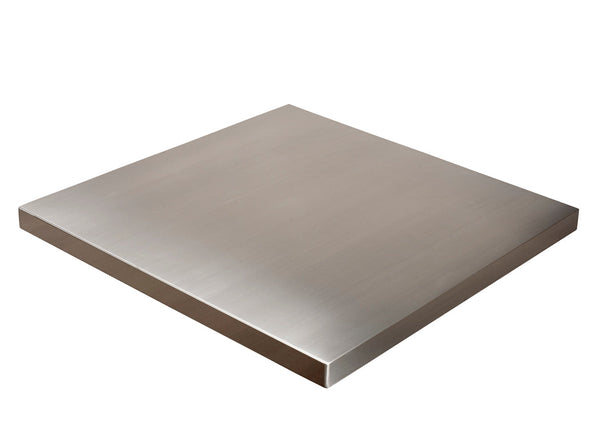

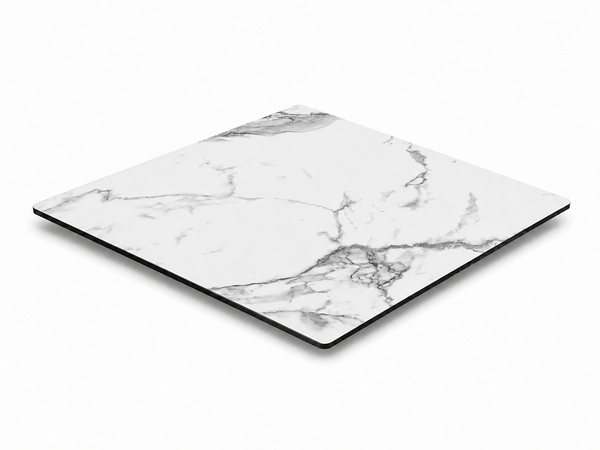

These current catalog examples have their own listed dimensions; they are not the 11-inch circular plates or 12 × 9-inch oval platter used in the controlled geometric study above.

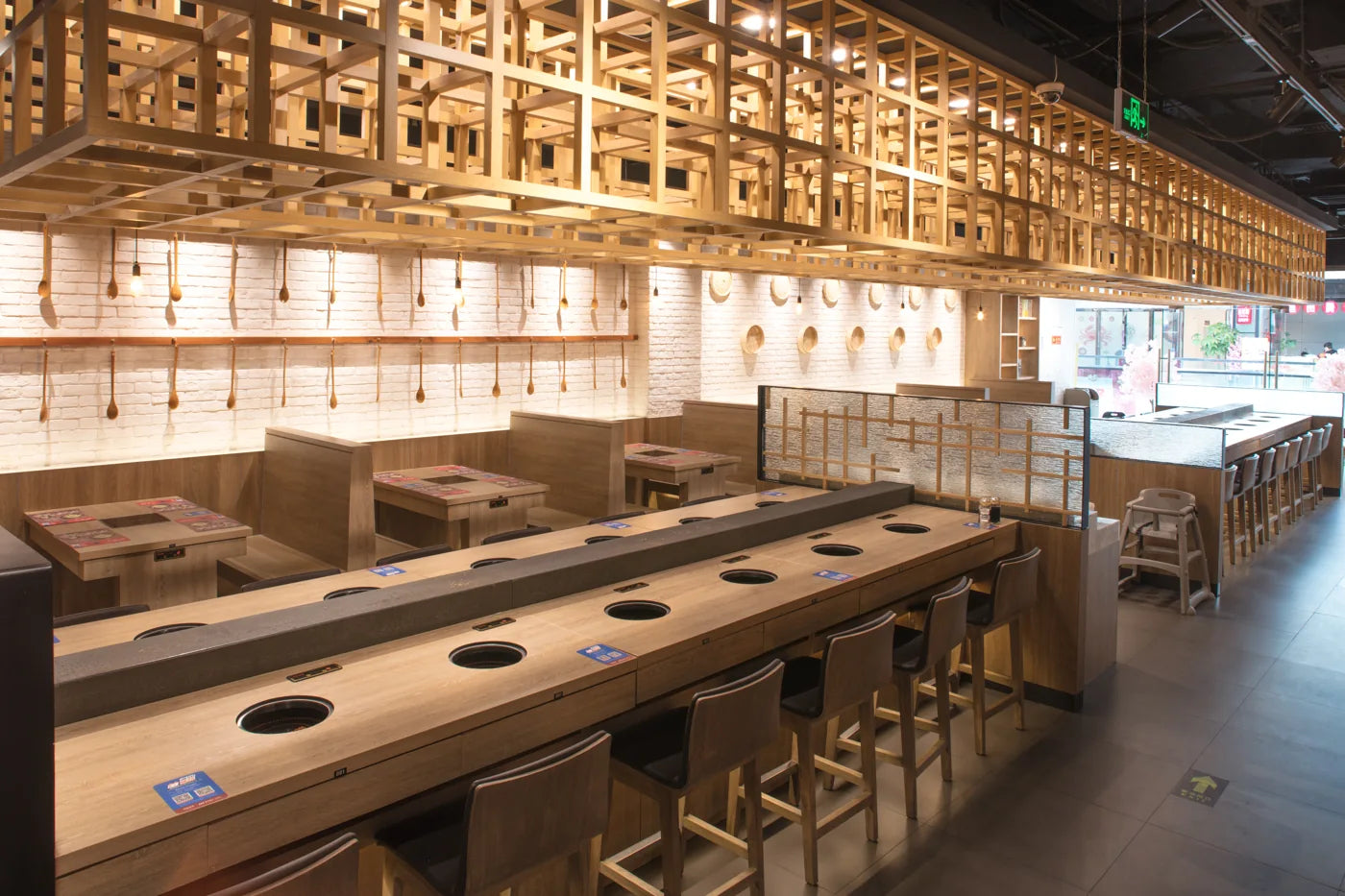

Integrated Tabletop Cooking Equipment

Tables incorporating grills, induction equipment, burners, or related cooking systems introduce further dimensional requirements.

An actual round built-in dining roaster uses a specified 363 mm circular tabletop opening, equivalent to approximately 14.29 inches in diameter.

The opening has an area of approximately 160.4 square inches.

On a 48 × 30-inch top, that represents approximately 11.1% of the nominal tabletop area.

But the cooking opening is not the complete installed equipment footprint.

The roaster's listed overall equipment envelope is larger, and the final installation may include support hardware, controls, utilities, service-access components, and construction requirements that are not visible from above.

The tabletop also needs to accommodate shared plates, sauces, utensils, cookware handling, beverages, and safe operating conditions.

A 48 × 36-inch table creates more space around a centered cooking opening than a 48 × 30-inch table. In the controlled plate-placement study, the nominal distance between the central opening and adjacent plates increases materially with the additional table depth.

That geometric result is independent of the manufacturer's thermal, structural or mounting requirements. Those must be determined from the exact equipment documentation.

Equipment configurations are distinct product offerings. No displayed item is approved for an arbitrary tabletop or base; obtain the exact installation drawings.

The correct table specification starts with the intended meal, the guest arrangement, and any integrated equipment. The selected tabletop and support structure must then accommodate that complete use.

5. Booths, Banquettes & Fixed-Seating Assembly Dimensions

Booth Types and Their Installed Footprints

Commercial fixed seating commonly includes single wall booths, back-to-back double booths, opposing booth pairs, continuous banquettes, corner units, and curved or U-shaped arrangements.

The dimensions used for ordering an individual booth are not necessarily the dimensions of the complete installed dining bay.

Actual width and depth depend on the seating body, backrest construction, seat position, table, overlap, and adjacent circulation.

A single booth may have a listed depth of 23 or 24 inches. A double booth may have an entirely different total depth depending on whether its back structure is shared or independently constructed.

The product specification must identify the exact configuration.

Seat Height, Seat Depth and Table Position

The relevant measurements include:

• Height of the finished seat above floor.
• Usable seat depth and effective backrest position.
• External booth body depth.
• Tabletop height, thickness and overhang.
• Distance between opposing seated positions.
• Under-table clearance for guests.
• Total outer assembly depth.

Upholstery thickness, back angle and custom construction can change these relationships without changing the nominal booth category.

A particularly common coordination problem is selecting a table after the booth depth has been fixed. The completed assembly may leave inadequate table reach or insufficient entry space even if the individual booth and table dimensions appear conventional.

Complete Facing-Booth Geometry

The depth of a facing-booth bay can be expressed as:

Total bay depth = first booth depth + second booth depth + table depth − table overlap at each end.

Consider two measured configurations.

The difference is four inches across one seating bay.

Repeated across a dining room, differences of this scale affect where tables, walls, circulation paths and opposing seating can be positioned.

These dimensions describe the defined assemblies; actual fabricated installations must follow their approved product and shop drawings.

Continuous Banquettes and Curved Seating

A continuous banquette introduces different constraints.

Table length and spacing can be adjusted along a fixed seating run, but table locations must still preserve access, chair positions on the opposite side, table-base compatibility and any required accessible positions.

Corner and curved banquettes require more than a nominal radius or seat count.

A curved seating layout should identify the seating arc, usable seat positions, table relationship, backrest projections, guest access and the effective occupied geometry.

Counting nominal inches of curved upholstery does not reliably establish the number of usable dining positions.

Installation and Accessibility

Fixed seating also affects construction coordination.

The finished wall face, backing, floor conditions, fastening, table support, seat height, and completed assembly must be resolved before fabrication.

Accessible dining positions need to be incorporated into the overall restaurant seating plan. A fixed booth or banquette arrangement is not made accessible merely by shortening the adjacent table.

The complete furniture, accessible approach, route and relevant dining-surface geometry must be reviewed.

Request project sourcing for this configuration. Confirm the exact model, assembly and available documentation before procurement.

Fixed seating should be specified as a complete dining assembly, not a group of unrelated catalog dimensions.

6. Restaurant Aisles, Service Circulation & Egress

Furniture Spacing and Aisle Width Are Different Measurements

A restaurant floor plan can show adequate separation between tabletop edges while offering considerably less room for actual passage.

A 42-inch table-edge gap does not automatically provide a 42-inch clear walking path.

Chairs may project into that gap. Guests may move them during entry and exit. Fixed architectural features may narrow the route, and the relevant building-code measurement may begin at a defined reference line rather than at the tabletop.

Furniture spacing, practical circulation, accessible routes, and egress aisles must be evaluated separately.

Guest Movement and Service Circulation

Guest circulation includes movement between tables, access to seating, approaches to restrooms and exits, and movement around waiting or service areas.

Service movement has additional requirements. Staff may be carrying trays, moving dishes, approaching tables from particular directions, or passing between occupied seating arrangements.

An aisle that appears suitable when empty may be uncomfortable or operationally restrictive when guests are seated.

Layout analysis should account for the selected furniture in its occupied condition, including the positions of chair backs and table supports.

A planning allowance chosen to accommodate service may exceed the legal minimum applicable to a particular route. That additional allowance should be identified as an operational design decision.

How Assembly Aisles Are Measured

The 2024 International Building Code provides specific aisle provisions for assembly occupancies.

Section 1030.13.1 addresses seating at tables. Where seating at a table or counter is adjacent to an aisle or aisle accessway, the required clear width is measured to a line 19 inches away from and parallel to the table or counter edge, subject to the provision's applicability and exception for fixed seats.

That 19-inch distance is a measurement offset. It is not a general instruction that a restaurant may provide a 19-inch aisle.

When fixed seats serve the table or counter, the applicable measurement is made from the back of the seat.

The distinction is consequential because the furniture boundary used in a code measurement may differ from the visible tabletop edge.

Aisles and Aisle Accessways

Different code provisions govern different types of circulation.

For example, the 2024 model code provides a 42-inch minimum for specified level or ramped assembly aisles with seating on both sides, with separately defined requirements and exceptions for other aisle configurations.

The applicable requirements depend on the aisle type, seating configuration, occupancy conditions, and adopted code.

These rules cannot be reduced to a universal 36-inch restaurant aisle requirement.

Accessible routes are governed by their own requirements. Under the federal 2010 ADA Standards, an accessible walking surface generally requires a minimum 36-inch clear width, with limited reductions and additional turning or passing conditions.

The same physical passage may need to satisfy multiple provisions. Where more than one requirement applies, the plan must address the governing conditions.

Door Swings, Turning Areas and Obstructions

A circulation path should be evaluated at its most constrained point.

Potential conflicts include:

• An occupied chair opposite a service station.
• A booth end adjacent to a door maneuvering area.
• A column narrowing the passage between tables.
• A host stand or queue extending into circulation.
• A stool projecting behind a dining counter.
• A movable table or serving cart occupying a required path.

Average aisle width is not a useful substitute for the minimum width available along the actual route.

Doors and turning movements can also require clearances that are not apparent from the width of a straight passage.

Occupancy and Means of Egress

Required exits, access to exits, occupant loads, and means-of-egress provisions can constrain dining-room layouts independently of the desired furniture arrangement.

Where a project falls under an assembly occupancy classification, the relevant code provisions must be applied to the actual design.

Furniture rearrangement after opening can also change the conditions that were used to establish circulation.

The final seating plan must preserve required paths during normal restaurant use, not merely when the room is empty.

7. ADA Dining Surfaces & Accessible Restaurant Seating: Federal Requirements

Which Dining Surfaces Must Be Accessible?

Under the 2010 ADA Standards, dining surfaces provided for consuming food or drink are addressed principally through §§226 and 902.

The requirements apply to accessible dining positions, not simply to products bearing an accessibility designation.

Tables, lunch counters, bars, booths and other dining surfaces can fall within the applicable scope.

Sales and service counters have separate provisions. Distinguishing the function of the surface matters, particularly in restaurants where ordering, pickup and dining occur along the same counter environment.

Required Accessible Dining Spaces

Section 226.1 requires at least 5% of the seating and standing spaces at dining surfaces to comply with §902.

Section 226.2 requires qualifying accessible dining surfaces to be dispersed throughout the relevant space or facility.

The calculation applies to spaces, not simply the number of tables.

Consider a dining area with 24 applicable seating spaces.

5% × 24 = 1.2.

Under the percentage-rounding provision in §104.2, this results in a minimum of two accessible dining spaces.

That is a scoping calculation. The completed design must still satisfy dispersion, access, geometry and the other applicable requirements.

The relevant counting and dispersion conditions should be determined for the actual space.

Accessible Dining Surface Height

Section 902.3 establishes a finished surface height of 28–34 inches above the floor for the qualifying accessible dining surface.

The measurement is taken to the top of the finished dining surface.

A table's catalog base height does not by itself establish compliance.

Tabletop thickness, mounting arrangements, adjustment, finished floor conditions and assembly geometry must all be considered.

Clear Floor Space and Forward Approach

Section 902.2 requires a clear floor space complying with §305, positioned for a forward approach.

The basic §305.3 clear floor space measures at least 30 inches wide by 48 inches long.

The space must be correctly positioned and served by the required access conditions.

The underlying surface, route connection, alcove conditions, and additional maneuvering requirements may affect whether the arrangement is usable.

The clear floor space may incorporate qualifying knee and toe clearance under the table, subject to the relevant federal provisions.

Complete Knee and Toe Clearance

Accessible dining furniture must provide more than an appropriate finished height.

The federal §306 profile establishes dimensional requirements beneath the dining surface.

The complete profile includes the relationship between knee and toe clearance at different elevations. In the allowed profile, available vertical clearance can reduce with depth according to §306.3.4.

A single rectangular opening measuring 30 inches wide and 27 inches high is not a complete description of these requirements.

Table supports, pedestal columns, structural crossbars, foot projections, under-table shelves and other components must be examined in three dimensions.

Pedestal and Table-Base Interference

A centered table base may provide good stability and flexible chair placement while creating obstacles beneath the table.

For example, a 30-inch square top paired with a centered 21.5-inch square foot has only 4.25 inches between the nearest tabletop edge and the foot boundary in plan.

That relationship warrants examination where a forward approach and qualifying knee/toe clearance are required.

It does not, by itself, establish failure. The base's vertical profile, exact placement and complete usable under-table space must be checked.

A commercial dining table should never be described as fully accessible solely because its finished top is within the 28–34-inch height range.

Accessible Routes to Dining Areas

Section 403 establishes the general requirements for accessible walking surfaces.

The commonly cited 36-inch minimum clear width applies subject to specified exceptions and additional requirements for particular turns, passing conditions and other situations.

Dining areas located on raised, sunken or outdoor levels may also implicate §206.2.5 and related provisions.

The route serving accessible dining spaces must be evaluated as a continuous usable connection.

Bars, Counters and Mixed Seating

Where dining occurs at an elevated bar or counter, an appropriate accessible dining position must be provided under the governing requirements.

A low table located elsewhere in the restaurant does not automatically resolve every question involving the placement, distribution or type of dining surfaces.

The applicable scoping and technical provisions should be assessed for the complete dining environment.

Existing Restaurants and Alterations

Accessibility obligations in existing facilities can depend on whether a project involves new construction, additions, alterations, or existing elements.

The 2010 Standards contain specific alteration provisions, including circumstances involving technical infeasibility and path-of-travel considerations.

These conditions must be evaluated for the actual project. Existing construction is not a general exemption from accessibility obligations.

The fundamental requirement is a usable dining position within an appropriately accessible restaurant environment—not merely an appropriately sized piece of furniture.

8. Accessible Restaurant Layouts & California Requirements

Accessible Seating Within Mixed Dining Rooms

Restaurants commonly combine freestanding tables, booths, banquettes, counters, communal seating and outdoor dining.

Accessible dining positions must be incorporated into that complete arrangement.

A table with an accessible surface height and adequate underside clearance still needs an appropriate approach. The available floor space must be consistent with the applicable route requirements and may not be obstructed by adjacent furniture.

An accessible dining position cannot be evaluated separately from the space needed to reach and use it.

California's 2025 Building Code

California's 2025 Building Code became effective January 1, 2026.

For restaurant furniture and dining layouts, several additional provisions are particularly consequential.

These are California requirements, not universal additions to the federal rules in every state.

Dining Clear Floor Space and Route Separation

California §11B-902.2.1 explicitly prohibits the required clear floor space at dining surfaces from overlapping the accessible route.

This affects restaurant layout planning because a wheelchair dining position may occupy space adjacent to circulation.

A drawing that counts the same floor area simultaneously as the occupied accessible dining position and the required accessible route can fail to accommodate the California requirement.

The solution is not necessarily to increase every restaurant aisle by a fixed amount. Furniture can be repositioned, the accessible dining position can be oriented differently, or the route can be arranged alongside the dining space without prohibited overlap.

The complete plan must establish the relationship.

Federal and California Knee Clearance

California §11B-306.3.3 includes an additional requirement for covered accessible dining and work surfaces: knee clearance extending at least 19 inches deep at 27 inches above the floor.

This differs from the minimum federal knee profile at that elevation.

The California provision must be read alongside its other knee/toe requirements and applicable exceptions, including restrictions affecting the permitted reduction of knee clearance at built-in accessible dining and work surfaces.

The correct specification should show the complete applicable profile, not simply replace an 8-inch federal measurement with a 19-inch number.

Accessible Aisle Widths in California

California §11B-403.5.1 generally establishes a 36-inch minimum for accessible walking surfaces, with additional conditions for certain corridors, sidewalks and aisles.

Among its provisions, qualifying aisles serving elements on both sides require a 44-inch minimum; those serving elements on only one side have a separately specified minimum.

Other conditions can require wider surfaces.

The phrase ADA aisle width is therefore too imprecise for a complete California restaurant layout.

The drawing must identify whether the route is an accessible walking surface, a qualifying aisle, a corridor, an assembly aisle or another circulation element governed by applicable provisions.

Elevated Dining Counters

California §11B-226.3 addresses dining counters where food or drink is served for consumption above 34 inches.

Where applicable, it requires a portion of the main counter at least 60 inches long to meet the specified accessible dining-surface height provision.

This matters for sushi counters, bars, counter-service dining environments and other elevated dining arrangements.

The physical counter assembly, knee/toe clearance, guest position, and route must be considered together.

Booths, Patios and Existing Conditions

Fixed booths and banquettes require particular attention because the seating and table positions may be constrained by construction.

Outdoor dining can introduce additional complications involving slopes, transitions, furniture movement, existing walks and other site features.

The nationally applicable federal baseline remains essential, but projects must also satisfy their adopted state and local requirements.

For projects involving accessibility compliance, the complete layout and applicable provisions should be reviewed by the responsible qualified design professionals and authorities. An individual furniture specification is not a substitute for that review.

9. Restaurant Seating Capacity, Table Mix & Space Efficiency

Three Different Measures of Capacity

A restaurant can have three different capacity figures.

Physical seat count is the number of nominal seating positions provided by the furniture.

Code occupant load is determined under the applicable building-code provisions, using the required classification and calculation methods.

Practical service capacity is the number and combination of parties that can be accommodated under the restaurant's actual table mix and operating conditions.

These figures serve different purposes.

Occupant Load Is Not Furniture Density

The 2024 model International Building Code lists 15 net square feet per occupant for applicable unconcentrated assembly areas with tables and chairs.

That factor is used within a building-code occupant-load calculation.

It is not an instruction to provide one dining chair per 15 square feet of total restaurant floor area.

Different uses, fixed seating, building configurations and locally adopted requirements can change the applicable calculation.

The dining area available for furniture is also distinct from total building area. Entrances, host positions, service stations, circulation, architectural obstructions and other uses affect the physical layout.

Table Mix and Party Size

Consider a controlled seating study with three arrangements.

All three provide 24 nominal seats.

They differ materially in the parties that can be accommodated without rearranging tables.

Consider six parties of two guests and three parties of four guests, arriving simultaneously.

That is nine parties and 24 total guests.

Arrangement A has only six independent tables. Arrangement B provides only two-person tables unless tables can be combined.

Arrangement C supplies exactly six two-person tables and three four-person tables.

It can allocate a separate appropriately sized table to each party under the defined demand conditions.

The conclusion is not that the third arrangement is universally superior. It establishes that the same nominal seat count can have different practical utility depending on party-size demand.

Flexible Seating and Combinable Tables

Movable two-tops may be combined into larger tables. This gives a restaurant additional party-size flexibility.

But combining tables changes the furniture footprint, the number of independent parties served, and potentially the circulation arrangement.

It can also require temporarily leaving adjacent tables unoccupied while waiting to assemble a larger group setting.

The layout should therefore be evaluated using the restaurant's likely party distribution and operating procedures.

Seating Density and Guest Experience

Higher seating density does not automatically produce better operating results.

Published hospitality research has documented reduced guest satisfaction and lower spending per minute in a full-service restaurant when tables were positioned unusually close together compared with more widely spaced arrangements.

Separate table-mix research has demonstrated that changing the distribution of table sizes can substantially affect the customer volume accommodated in a modeled restaurant.

The findings support a serious capacity-planning principle: the arrangement must reflect how the restaurant operates, not merely how many chairs fit on paper.

They do not establish one ideal table spacing or guaranteed financial improvement for all restaurant formats.

Capacity Tradeoffs

A complete furniture comparison should identify:

Commercial space efficiency is determined by the relationship between furniture, table mix, guests, service and the usable room—not by a single seats-per-square-foot figure.

10. Fully Dimensioned Restaurant Layouts & Worked Comparisons

Establish the Room Before Placing Furniture

A restaurant furniture layout must begin with the actual room boundary and fixed conditions.

The drawing should identify the finished dimensions, entry points, doors, columns, counters, service stations, circulation, and any relevant accessible dining positions.

Furniture is then placed as complete assemblies rather than as nominal tabletop rectangles.

The following planning studies demonstrate three different kinds of dimensional analysis.

Layout A: Movable Two-Tops and Four-Tops

The first study uses a 36 × 30-foot dining envelope, equivalent to 1,080 square feet.

It compares arrangements containing six four-person tables, twelve two-person tables, or a mixed allocation of three four-person and six two-person tables.

Each provides 24 nominal seats, but the room does not acquire the same operating flexibility in all three cases.

The exact chair geometry and table locations are preserved as measured inputs.

The room's gross area is equivalent to 45 square feet per nominal seat in these defined arrangements.

That figure is not an optimal restaurant density and is not equivalent to code-defined net area. The study isolates table allocation rather than maximizing seat count.

A publication-grade plan must also account for entrances, required exits, accessible dining positions, service points and all relevant pathways before any arrangement is proposed as suitable for actual installation.

Layout B: Fixed Booths With Adjacent Movable Seating

The second study examines a facing-booth assembly in a mixed dining area.

Two otherwise similar assemblies require 70 and 74 inches of total bay depth because the booth body dimensions and tabletop overlap differ.

The four-inch difference affects the space remaining for adjacent furniture and circulation.

This difference cannot simply be absorbed by declaring the table or booth interchangeable with another nominal four-person option.

Where fixed booths are adjacent to movable tables, the entire group must be checked against the room's circulation and accessible dining requirements.

The study should identify the installed booth back, table edge, seated position, adjacent movable chair, and the actual line from which any relevant aisle clearance is measured.

Layout C: Alternative Configurations Within the Same Room

A third study compares furniture changes without changing the architectural enclosure.

Substituting a wider but shallower chair can reduce its projection behind the table while increasing the linear width required along the table edge.

Changing a four-person square table to a four-person rectangular table alters the occupied furniture shape.

Changing the table mix affects the number of separate parties that can be served.

Changing a pedestal base can affect the guest's under-table space even where tabletop dimensions are unchanged.

A complete comparison therefore needs to preserve the same room envelope, fixed obstructions and measurement conventions.

The outputs should identify the changes in installed seats, table count, component footprints, continuous circulation and accessibility conditions.

Reading and Approving the Plan

A technically useful furniture plan should contain:

• Finished room geometry and relevant architectural features.
• Unique furniture item numbers.
• Actual table, chair, stool and booth dimensions.
• Defined occupied-use assumptions.
• Accessible dining positions and required access relationships.
• Applicable circulation and egress references.
• Quantities and seating arrangements.
• Notes identifying conditions requiring field verification or shop-drawing approval.

These drawings establish the furniture specification and the basis for comparison. Any project-specific code and accessibility compliance determination must address the complete applicable requirements.

The value of a fully dimensioned layout is that the furniture can be measured, compared, changed and ultimately procured from a consistent specification.

11. Restaurant-Specific Furniture Layout & Operational Requirements

Sushi Bars and Omakase Counters

A sushi counter establishes a close dimensional relationship between guest seating, the counter surface, the chef's working area and the presentation of food.

The counter cannot be specified solely by its height or the number of stools placed alongside it.

Relevant dimensions include the guest-side depth, chef-side working depth, counter elevation, stool height, stool spacing, occupied back projection, guest reach and the available service surface.

The placement of refrigerated display equipment, presentation surfaces and service components can change how much of the counter is practically usable.

At an intimate chef-facing counter, the relationship between the guest's seated position and the chef's working surface also affects sightlines and service access.

The completed counter plan must preserve the appropriate guest approach and any required accessible dining position.

Korean BBQ and Hot Pot Restaurants

Korean BBQ and hot pot tables introduce components that do not appear in conventional dining furniture.

The tabletop may incorporate a grill, burner, induction unit or other cooking device.

The selected arrangement must accommodate the equipment footprint, the table structure, guest legroom, shared servingware, utensils and the service approach.

Built-in equipment can extend well below the tabletop.

A table that appears adequately sized from above may encounter conflicts between equipment housing, table supports and guests' knees.

Actual equipment opening dimensions must be distinguished from the complete body dimensions and manufacturer-required mounting conditions.

Ventilation, utilities, structural support and any thermal protection also need to be coordinated with the table's physical design.

These relationships are especially important in restaurants using high volumes of shared dishes, sauces and cooking utensils around a central cooking location.

Equipment configurations are distinct product offerings. No displayed item is approved for an arbitrary tabletop or base; obtain the exact installation drawings.

Chinese and Family-Style Dining

Shared-dish dining requires a different use of the table surface.

Large serving platters, bowls, sauces and beverages occupy a central area in addition to individual place settings.

Round tabletops are particularly common in group dining environments, often paired with a rotating center surface.

The diameter of the rotating surface is a separate measurement from the complete tabletop diameter.

The remaining perimeter must still accommodate guests and their place settings.

For example, a large round table with a substantial rotating center may offer less space for individual settings than its total diameter initially suggests.

Service access and the movement of large dishes around seated guests also affect the furniture arrangement.

Cafés, Bakeries and Fast-Casual Dining

Compact dining areas place high demands on furniture geometry.

Small tables, lightweight movable chairs, wall seating, counter seating and communal arrangements may all occupy the same room.

The dining plan must account for the path between ordering, pickup, seating and exiting.

Queues and customers carrying trays can interact with seated guests in ways that do not appear on a static furniture plan.

A compact two-top should be selected using the actual tray, plate and beverage arrangement it must support.

A narrower table may fit physically but remain inadequate for its intended meal service.

Banquet and Private Dining

Banquet spaces and private dining rooms need to accommodate changes in group size and table arrangement.

A room may use separate round tables for routine service, rectangular group tables for meetings, or combined configurations for private events.

Each configuration changes occupied furniture dimensions and circulation.

Combinable tables require exact matching heights and compatible supports. Movable seating must be evaluated in its occupied condition, not merely while stacked or stored.

Required paths must be maintained under the operating layouts that will actually be used.

Outdoor and Patio Dining

Outdoor dining introduces permanent and movable obstructions outside the usual dining-room enclosure.

Plan for the actual outdoor furniture dimensions, entrances, changes in level, planter boundaries, railings, pedestrian movement and any applicable accessible routes.

Umbrella bases, table supports and furniture movement can affect the available clear space.

The furniture arrangement also needs to reflect the actual permitted dining area, which may be narrower than the surrounding outdoor pavement or patio.

Outdoor furniture materials and environmental performance are addressed separately from these spatial requirements.

Across all these restaurant formats, the underlying dimensional discipline remains constant. The specific furniture arrangement changes to accommodate the menu, equipment, guest use, circulation and service.

12. Field Measurements, Drawing Review & Spatial Conflict Resolution

Measure the Finished Room

Before releasing commercial furniture for procurement, verify the actual or approved finished conditions on which the plan depends.

The relevant measurements include:

• Finished wall-to-wall dimensions.
• Column faces and fixed architectural obstructions.
• Doors and their operation.
• Existing millwork and counters.
• Floor levels and transitions.
• Equipment interfaces.
• Relevant circulation and accessible route conditions.
• Actual dimensions of existing furniture that will remain.

Where construction is incomplete, use the appropriate approved project drawings and identify dimensions that require later field confirmation.

Check Furniture Assemblies, Not Just Catalog Sizes

A table schedule should identify the selected tabletop and base as a completed assembly.

Verify the finished height, mounting interface, apron or support clearance, footprint and compatibility.

Booth specifications require the same attention to actual assembly depth, seat position, wall condition, fabrication drawings and table overlap.

Where a tabletop includes cooking equipment, the opening, complete installed equipment envelope and required service interfaces must be coordinated before fabrication.

Common Dimensional Conflicts

Substitutions Require Dimensional Review

A replacement product can be visually similar yet geometrically different.

Changes in chair width, back projection, seat height, table thickness, base footprint or mounting geometry may require a corresponding change to the furniture plan.

Any substitution affecting specified dimensions or interfaces should be reviewed against the same criteria used for the original selection.

Resolve Conflicts Before Purchase Release

Each unresolved issue should identify the affected item, drawing revision, relevant measurement, required correction and approval responsibility.

Custom fabrication and equipment-integrated furniture may require additional shop-drawing and installation coordination.

Furniture ordering should proceed from a consistent approved specification, not from a mixture of preliminary drawings and unreviewed substitutions.

13. From Restaurant Layout to Purchase-Ready Furniture Specifications

Connect Every Furniture Item to the Plan

The final furniture layout should correspond directly to an itemized specification schedule.

Every chair, stool, table, base, booth or specialty assembly should have a unique identifier.

That identifier should carry through the plan, specification, quotation and purchasing documents.

For complete table assemblies, the schedule may need separate references for the tabletop, support, mounting components and any integrated equipment.

Specify the Actual Configuration

A purchase-ready furniture specification should record more than furniture type, color and quantity.

The required information includes the selected dimensions, configuration, component relationships and conditions that affect the approved layout.

Complete Table and Seating Specifications

For a dining table, the schedule may identify the tabletop size and thickness, base model, floor-contact footprint, assembled height and mounting requirements.

For chairs, it should preserve overall dimensions, seat height, selected configuration and other dimensions that affect the approved seating arrangement.

For booths, the schedule should refer to the appropriate shop drawings and completed seating assembly.

For cooking-integrated tables, the relevant equipment and fabrication interfaces should be documented alongside the furniture specification.

Preserve Accessibility and Circulation Requirements

Where selected furniture forms part of an accessible dining arrangement, the schedule should include the dimensional requirements that informed that selection and link them to the relevant approved layout documents.

This does not independently certify regulatory compliance. It ensures that essential physical characteristics are not lost during sourcing or substitution.

Preparing the Furniture Quotation

The quotation request should provide the supplier with sufficient information to price the correct furniture rather than an approximate substitute.

At minimum, the package should identify the furniture schedule, quantities, plans, selected specifications or approved equivalents, required delivery location and project timing.

Custom items should include the relevant drawings, finish requirements, dimensions, and outstanding approvals.

If the final model selection is incomplete, the request should still establish the measurable requirements that any proposed product must meet.

Complete Restaurant Furniture Sourcing

Eden Restaurant Supply supports restaurant furniture procurement alongside tabletop, equipment and the broader physical requirements of foodservice projects.

A coordinated furniture specification enables accurate quotations, compatibility review, delivery planning and purchasing decisions based on the actual restaurant rather than a generalized catalog recommendation.

For a new restaurant, renovation, dining-room expansion or furnishing replacement, the most useful starting point is the current plan, desired seating arrangement, product specifications and project requirements.

Request a Restaurant Furniture & FF&E Quote Browse restaurant furniture

Dimensional References, Planning Tools & Next Steps

Use the measured examples in this reference and the related furniture guides to translate selected configurations into quantities, schedules and project documentation.

For furniture purchasing, begin with the selected arrangement and its actual specifications. Chairs, tables, bases, booths and specialty dining components should be sourced as coordinated selections, with the required dimensions preserved from plan through procurement.

Technical References & Measurement Basis

Federal accessibility: 2010 ADA Standards, particularly §§104.2, 206, 226, 305, 306, 403 and 902. Primary reference: https://www.access-board.gov/ada/

California accessibility: 2025 California Building Code, Chapter 11B, effective January 1, 2026. Particular provisions include §§11B-226, 11B-306, 11B-403 and 11B-902. Primary reference: https://www.dgs.ca.gov/-/media/Divisions/DSA/Publications/access/2025-CBC-Advisory-Manual-Triennial.pdf

Building and egress: 2024 International Building Code, Chapter 10, including Table 1004.5 and §§1030.9 and 1030.13.1, subject to local adoption and amendments. Primary reference: https://codes.iccsafe.org/content/IBC2024V2.0/chapter-10-means-of-egress

Restaurant operating evidence: Published hospitality studies addressing table spacing, guest satisfaction, table-size mix and capacity utilization. These findings are contextual and do not establish universal restaurant geometry.

Dimensional research: Commercial furniture specifications, actual tabletop and servingware measurements, foodservice equipment dimensions, and documented calculations developed for this reference.

Interpretation: Unless identified as a legal requirement, the dimensions in this report are commercial reference measurements, product-specific specifications or defined analytical results. Project-specific accessibility, egress, structural, equipment and installation requirements must be verified under the applicable conditions.
