Restaurant Tables, Tabletops & Bases: The Complete Commercial Specification Guide

01. How to Choose a Commercial Restaurant Table

Start with the service, then settle the table's dimensions and construction. The sequence is straightforward: determine what occupies the surface, choose the usable geometry, specify the material and edge, select the correct support, check the assembled height and clearances, and document the components that will actually be supplied.

For most ordinary dining areas, a complete manufacturer-matched table or a documented top-and-base combination is the simplest purchase. Separately sourced components become valuable when the job calls for a particular finish, unusual dimension, replacement top, fixed seating condition, or specialty installation. They also introduce the responsibility to confirm that the combination is suitable. A base sold as “commercial” is not automatically approved for every commercial tabletop.

A 24-inch square two-top may be satisfactory for coffee and pastries and entirely wrong for shared entrées with side dishes. A 30 × 48-inch table may have the required top area but an unsuitable base for the selected material. A round top may seat the intended party yet leave too little usable center space when several platters arrive together. These are not style questions; they determine the specification.

Before ordering: know the tabletop dimensions, material and construction; the exact base and mounting interface; the finished height; required clearances; the application; and whether the complete assembly is documented as compatible. If any of these are unresolved, the specification is not finished.

Browse restaurant tables and bases · Discuss a commercial furniture project

02. Types & Anatomy of Commercial Restaurant Tables

A commercial dining table has two essential assemblies: a dining surface and the structure supporting it. The parts between them matter just as much as the visible finish. A finished top may include a decorative surface, structural substrate, edge treatment, internal reinforcement and threaded inserts. Its support may include a top plate or mounting rails, one or more columns or legs, feet, glides and anchors.

Complete tables, modular tables and fixed construction

A complete table is supplied as an approved assembly. A modular table combines separately specified top and support components. A fixed table may be integrated with walls, flooring, seating millwork or the building structure. The categories are not quality grades; they define how the product is designed, documented, installed and replaced.

Freestanding single-pedestal tables are common in compact dining; paired pedestals or distributed legs appear on longer tops. Fixed booth tables may use floor-fastened pedestals, legs, wall brackets or engineered millwork. Communal tables may use trestles or frames supporting long spans. Folding, flip-top and nesting tables trade permanent rigidity and simplicity for mobility or storage; their latches, hinges, joints and transport positions need their own specifications.

The components worth identifying

The top's stated thickness may describe the edge rather than the underlying panel. A visually thick perimeter can conceal a thinner core. Likewise, a base described as “22 inches” may refer to foot spread, disc diameter or another manufacturer's nominal designation. Record actual dimensions from the cut sheet.

Where components are proprietary, their attachment details and warranty restrictions belong in the purchasing record. Reusing an old top with a new base is a replacement project, not a cosmetic substitution.

03. Restaurant Table Sizes, Shapes, Heights & Seating Capacity

Table dimensions are the quickest way to narrow a commercial furniture schedule and the easiest way to oversimplify one. The figures below are selection references, not capacity guarantees. Actual use depends on the dishware, chair or booth, guest posture, serving method, support placement and the amount of material that must remain accessible on the table.

Common square and rectangular tabletops

These are readily encountered size classes rather than mandated modules. Availability and permitted uses differ among manufacturers. A marketed seating count is a sales classification; it is not a measured guarantee of guest comfort or operational efficiency.

Round tabletops

Round tables distribute edge access differently from rectangles and tend to present a central common serving field. That is valuable for some shared meals and less valuable where guests need clear rectangular work or plate positions. At larger diameters, reach to the center also becomes a service consideration. A rotating centerpiece or turntable changes the arrangement but adds its own clearance and support requirements.

The familiar comparison: a 30 × 48-inch rectangle has 1,440 square inches of nominal area; a 42-inch round top has about 1,385 square inches. The difference is only about 3.8%. They are not operational equivalents: the perimeter, guest positions, reachable center and possible serving layouts differ.

Finished heights: dining, counter and bar

These are prevalent furniture categories, not interchangeable compliance rules. Actual seating comfort depends on seat height under use, apron depth, foot support and the people using the furniture. Accessible dining-surface requirements have separate, specific criteria addressed below.

Specify finished surface height, not base height. A nominal 28-inch base combined with a 1½-inch top gives a different elevation from a base carrying a thinner top. The exact construction, mounting hardware and glides determine the final dimension.

Combined tables, booths and communal configurations

Joined square tops give greater flexibility for changing party sizes, but seams, edge treatments, mismatched heights and independently moving bases can create service problems. Long communal tops require a deliberate support arrangement and mounting solution, not simply the highest seating count that appears to fit along the perimeter. Booth tables must be evaluated against the actual fixed-seat geometry and support interference.

Room capacity and egress are broader layout matters. This guide establishes the table dimensions; the floor plan establishes where those dimensions can operate.

04. How Much Tabletop Space Does Your Menu Actually Require?

A four-top is not defined by four chairs alone. It is defined by the items present during the busiest part of service, the positions from which guests can reach them, and the space staff need to set down, remove and replace them. The same table works very differently for coffee, individual plated entrées, dim sum, shared Korean dining or hot pot.

Count simultaneous objects—not every item on the menu

The relevant inventory is the maximum practical overlap at a specific stage of service. Record individual plates and bowls, glasses, utensils, condiments, shared vessels, portable stands or burners, sauces and other objects that are present together. Do not sum the entire course sequence as though every dish remains on the table for the whole meal.

A compact café table may carry two cups, two small plates, water and a condiment container. A casual plated restaurant may need four dinner plates plus drinks and bread or shared sides. In family-style service, individual place settings coexist with larger center dishes and sometimes a rotating tray. Korean barbecue and hot pot assign significant area to cooking equipment, accompaniments and serving access before a single guest plate is placed.

Placement, not gross area, determines fit

It is easy to calculate a tabletop's total area; that number does not reveal whether actual dishes can occupy the necessary positions. Four 10-inch circular plate footprints cover about 314 square inches in isolation. That arithmetic says nothing about comfortable edge placement, overlapping utensils, tall drinks, service approach, handles, reach or whether a central platter can be introduced without moving other objects.

For every candidate top, draw or measure the objects at their full outside envelope, including handles and projecting edges. Record which objects need to be reachable by a seated guest and which need periodic access by staff. Test service at the point when the table is most crowded, not when the room is staged for photography.

Dining formats that change the table specification

Geometry in service

A 42-inch round and a 30 × 48-inch rectangle offer similar nominal area, but not interchangeable placements. A long rectangle favors defined opposing guest edges and may leave narrower center space for shared vessels. A round table offers distributed access to a center arrangement but can make the far center of a large top difficult to reach. Square tops are easy to combine, but corners do not automatically become equally useful service space.

At Korean barbecue stations, the grille opening and cooking envelope take precedence over decorative symmetry. For sushi counters, the guest edge and handoff path matter more than maximizing every square inch behind a plate. For shared multi-dish dining, vessel diameters and simultaneous dish count can make a nominal four-top an inferior choice even before circulation is considered.

How ERS evaluates tabletop occupancy

For a repeatable evaluation, select an actual table top and a defined service moment; measure the servingware and equipment; position the items as they would appear in real service; and photograph the arrangement from directly overhead with a scale reference. Record conflicts, accessible serving positions and any required removal or rearrangement. Repeat with alternative table geometries and document why the outcome changes.

The useful result is not an invented universal “percentage of usable area.” It is a set of documented arrangements showing which real configurations fit, how they function and what compromises they impose.

Select and measure the actual restaurant tableware before finalizing the dining surface.

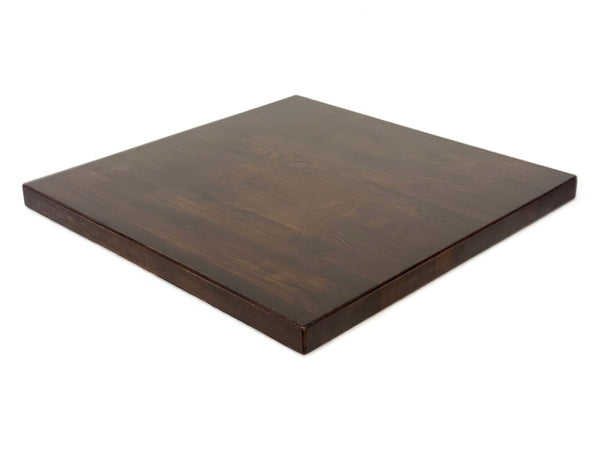

05. Restaurant Tabletop Materials, Construction & Performance

There is no universal best commercial tabletop material. The choice depends on the finished construction, the environment and the type of wear the restaurant imposes. A laminate-faced wood-core panel, compact laminate slab, solid wood top, engineered stone top and molded resin surface differ in weight, fastening, edge behavior, chemical resistance and repair—not merely in appearance.

Major material families

These categories contain substantial internal variation. One manufacturer's thermally fused panel restrictions are not a prohibition on every melamine-faced table sold in the market. Likewise, “stone” is not a weight or span specification. Ask for the actual top construction and technical data.

Surface, core, thickness and edge

On a laminated panel, the decorative surface is a small part of the total construction. The core carries the attachment, distributes the load and can be vulnerable when water reaches exposed edges or seams. Edge banding, resin encapsulation, solid-wood lipping and integral compact-panel edges behave differently. A 1½-inch edge profile does not establish that the entire panel is 1½ inches thick.

Real wear tends to concentrate at edges, corners, seams, fasteners and surfaces repeatedly struck by dishes or cleaning equipment. The relevant question is not whether the visible top resists a spilled drink, but whether the complete construction tolerates that exposure over sustained service.

Heat, abrasion, impact and moisture

Heat resistance varies among engineered products and should not be inferred from a material family name. Heavy cookware, tabletop grills and hot serving vessels can exceed the conditions contemplated for ordinary dining surfaces. Specify protective arrangements and integrated-equipment approvals where needed.

Scratch resistance is not impact resistance. A hard surface that resists routine abrasion can still chip at an exposed corner. A top that tolerates occasional splashes can deteriorate when water repeatedly enters an unfinished seam. Chemical compatibility likewise depends on the actual finish and manufacturer's instructions; aggressive cleaners that are acceptable for one surface may permanently damage another.

Weight and mounting are material decisions

Changing a top from lightweight panel construction to solid wood, thick stone or another heavier material can invalidate a base recommendation. The top weight must be taken from the actual product or suitably documented fabrication specification. Support geometry, mounting hardware and any required backing plates or reinforcement must then be confirmed for that top.

Specialty panels may require factory inserts, adhesive-backed mounting assemblies, through-fastening or proprietary rail systems. Do not improvise holes or fastener choices in brittle, thin or specially finished tops after delivery.

Repairability and procurement consequences

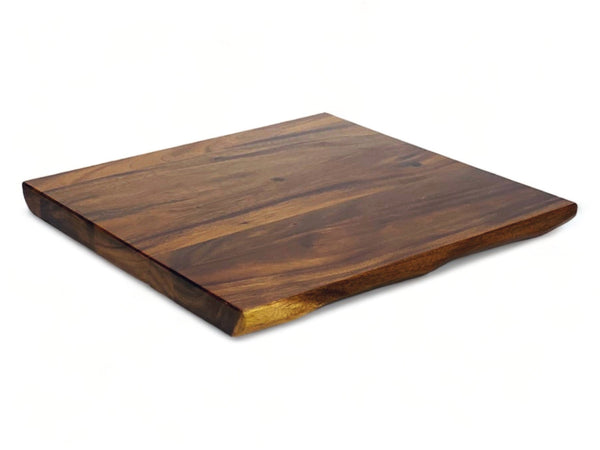

Solid-wood finishes may allow refinishing; some solid-surface products allow approved localized repair; some laminate edges or panels are more economically replaced than restored. Neither repair option should be assumed without checking construction and manufacturer's care guidance. For multi-location concepts, availability of the same finish, size and mounting pattern over time can matter as much as the first delivery.

The material choice should survive two tests: it works in the restaurant's actual exposure conditions, and the complete tabletop can be mounted, cleaned, moved and replaced as intended.

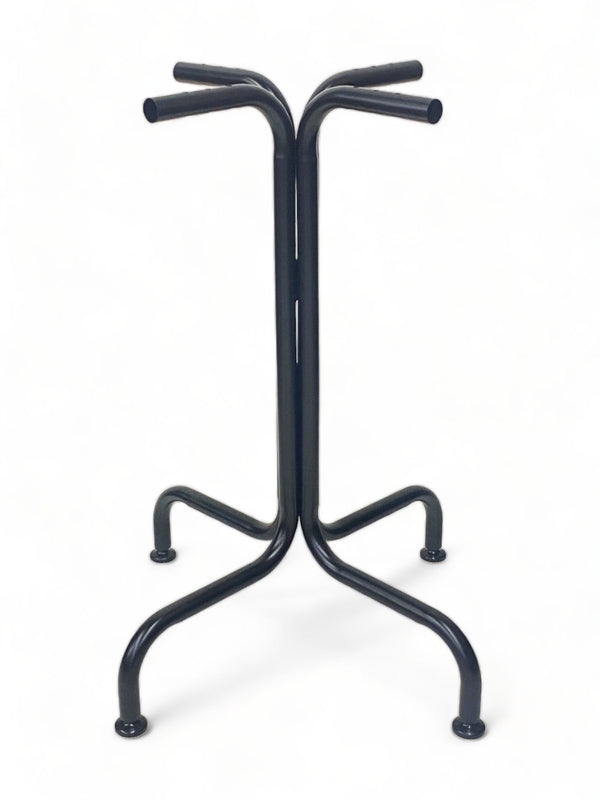

06. Restaurant Table Bases: Types, Dimensions & Support Systems

The base must support the selected top, preserve the necessary legroom and remain suitable for the intended floor and handling conditions. Its finish and silhouette are secondary to its published performance and attachment requirements. Two bases with similar footprints can carry different permitted tops, particularly when their heights, columns, mechanisms and mounting plates differ.

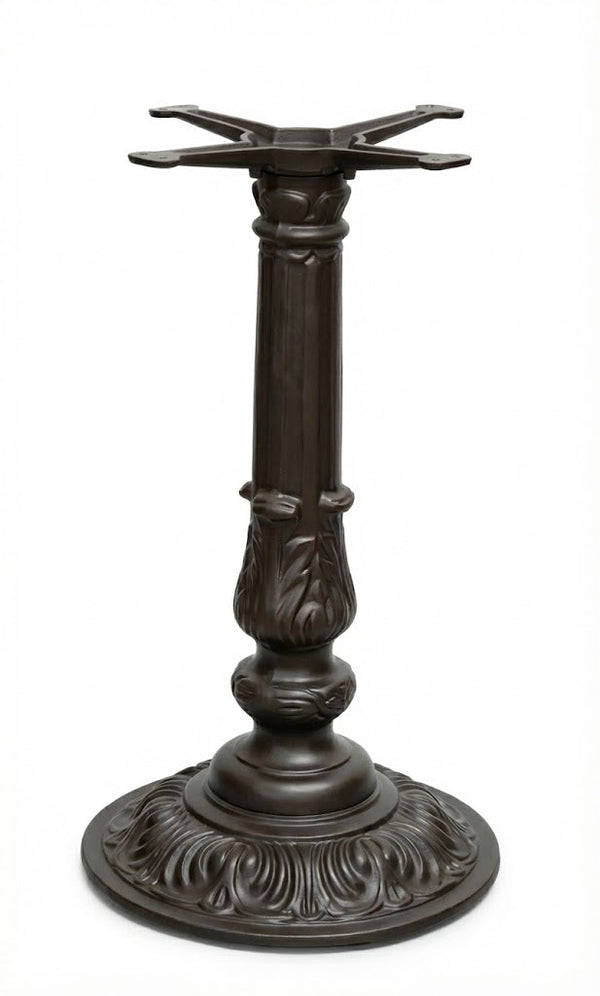

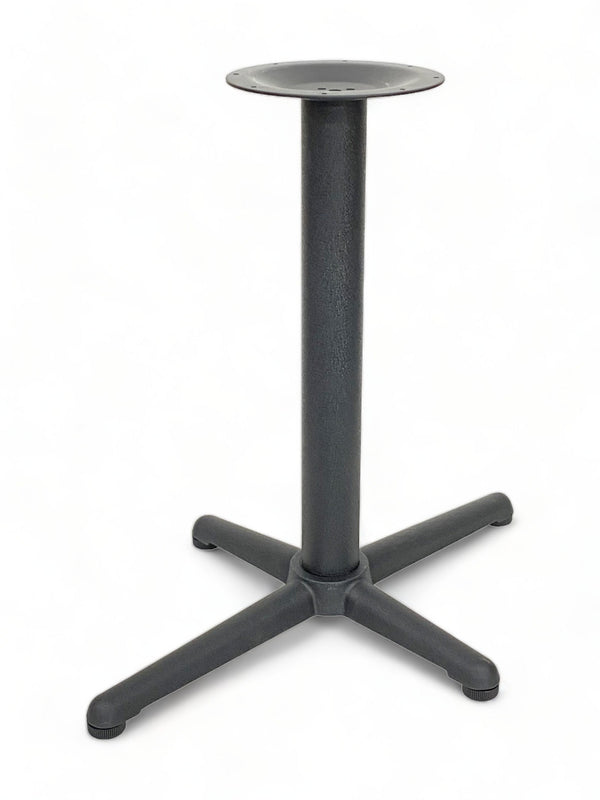

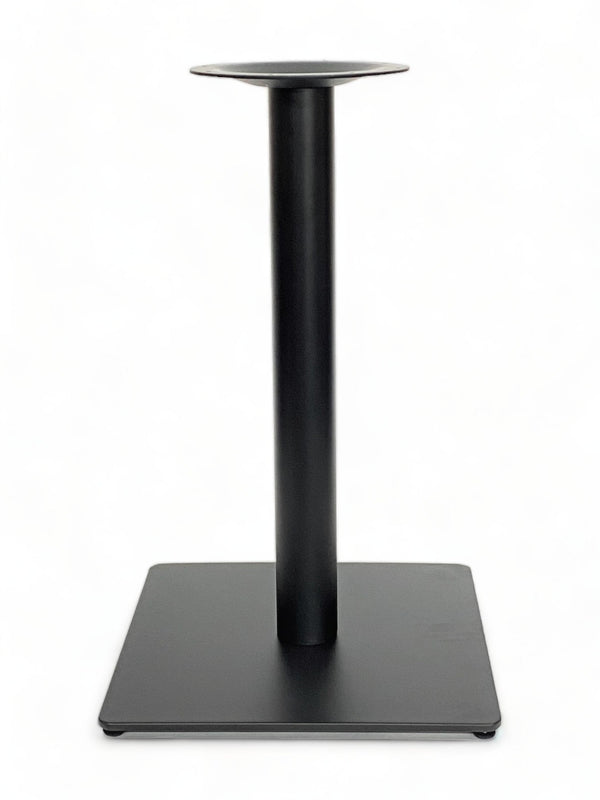

Pedestal, disc and cross bases

A single central pedestal often provides unobstructed perimeter seating on a compact square or round top. The lower support can be a round disc, square plate, cruciform or other shape. These arrangements differ in contact geometry, ballast, adjustability, foot interference and mounting. A disc is not automatically more stable than a cross base, nor does a heavier base necessarily solve an unsuitable load path.

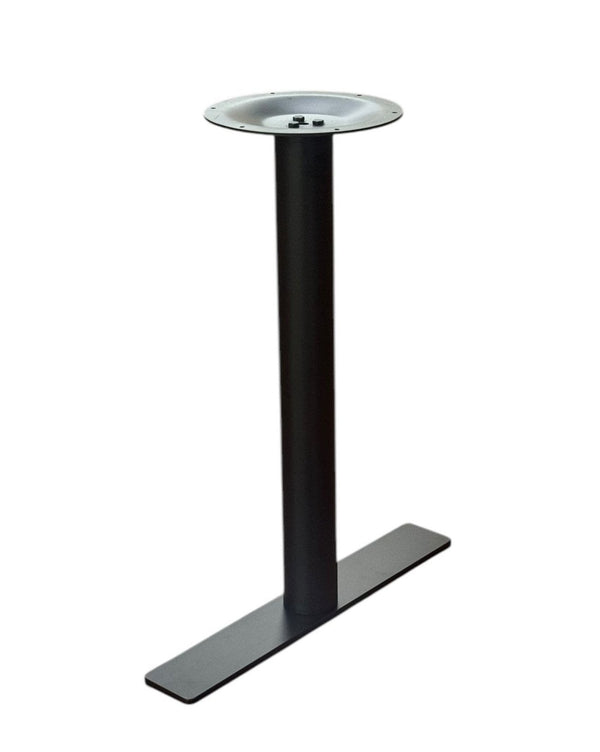

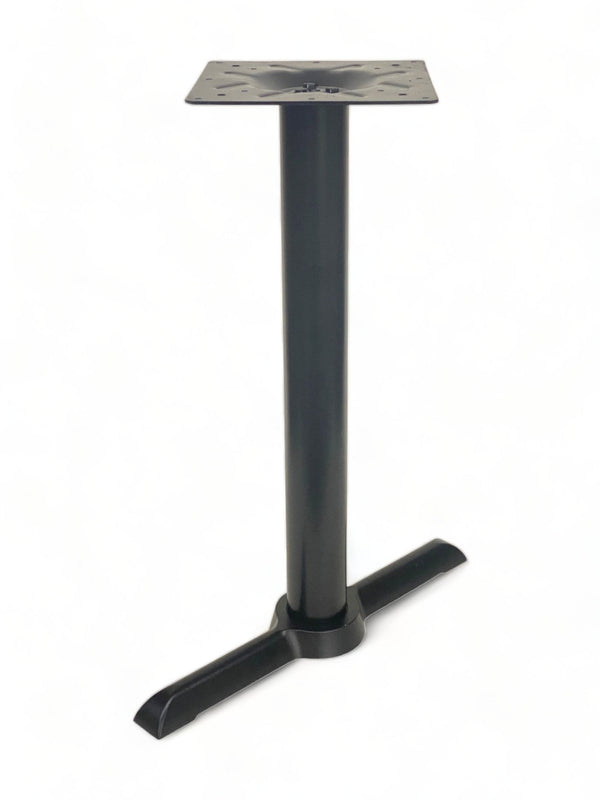

T-bases, paired pedestals and longer tops

Rectangular tops frequently use two supports, a T-arrangement, trestle construction, distributed legs or a manufacturer-designed frame. Support centers and overhang must be evaluated with the actual tabletop construction. A one-column solution sometimes exists for a rectangular top, but it must be supported by a relevant product rating. A paired-base solution is not inherently better unless its component geometry and attachment are also appropriate.

Four-leg, trestle, wall and anchored supports

Four-leg tables introduce corner leg positions and potentially different chair interference. Trestle designs can leave ends clear while occupying the center beneath a communal top. Cantilevered or wall-fixed furniture places part of the support obligation on attached construction. Floor-bolted tables require anchorage and site approval, especially where tables are moved for cleaning or egress arrangements change.

Height and adjustment variants

Published top-size and top-weight limits may change between dining-height, counter-height, bar-height and adjustable variants of the same base family. Extending a column or changing a post does not preserve the standard-height rating by default. Adjustable glides correct floor contact within the manufacturer's adjustment range; they do not transform the structural capacity of a base.

A 22-inch cross base from one manufacturer is not interchangeable with every 22-inch cross base on the market. Record the exact product model, supported top formats and attachment method.

07. Tabletop-to-Base Compatibility: How to Verify a Complete Assembly

A top and base are compatible only when the complete configuration is supported by appropriate specifications or a documented approval. The check goes well beyond comparing a top's width with a base's spread. Identify the exact top, exact base, actual attachment and height configuration, then establish what the relevant manufacturer has approved and what remains unresolved.

The essential compatibility record

The ratings are not interchangeable

A table base's maximum permissible top weight describes a limit on the tabletop itself under specified conditions. It is not a blanket statement about the maximum weight of diners leaning on it or equipment added after installation. A listed top dimension does not override the top-weight limit. A published maximum top size in a round form does not automatically apply to a square or rectangular top of similar area.

Actual technical listings demonstrate the problem: a standard-height version of a particular cross base is published for a 30-inch square or round top weighing no more than 35 pounds; a counter-height variant in that same family is published for 28 inches and 33 pounds. An adjustable version has different limits again. Never copy a standard-height rating into an elevated or adjustable configuration.

Attachment governs real compatibility

Some tops fasten directly to a mounting plate. Others use embedded threaded inserts, factory-bonded rails or a structural frame that distributes the connection across the panel. Support plates can have different patterns even if their exterior dimensions look similar. Fastener selection depends on the top's substrate, screw engagement, corrosion exposure and manufacturer's installation procedure.

For proprietary rail or bracket assemblies, substitution can invalidate the manufacturer's documented stability arrangement. A visible bolt pattern that happens to align is not proof of a supported mixed-component system.

Compatibility classifications

A combination absent from a manufacturer's chart is not automatically unsafe. It is simply not established by that chart. Where documentation excludes a mix of components, follow that restriction; where documentation is silent, obtain confirmation before treating the result as approved.

A documented assembly versus a generic sizing rule

One published manufacturer's table guide pairs a 24 × 32-inch outdoor top with a specified 18 × 18-inch support from its own range. A different support footprint in that same range appears against other top sizes. Neither a generic “bigger base is safer” assumption nor visual resemblance should override the documented matrix. The exact matching product family, mounting interface and issue date matter.

Before releasing a custom top or mixed-brand order, require the mounting drawing and the permitted support configuration. If the supplier can only provide an illustrative sizing chart, treat the result as a proposal pending technical approval—not a guaranteed configuration.

Final approval questions

1. Is this the exact top, material, size and finished weight being supplied?
2. Is this the exact base variant and height?
3. Do the published size, weight and support restrictions cover this assembly?
4. Are the attachment parts and fabrication instructions identified?
5. Is the finished height correct with the actual top and mounting?
6. Do guest seating, accessible positions, floor exposure and equipment add restrictions?
7. Who has accepted the remaining project-specific conditions?

A correct furniture specification is explicit about unknowns. It does not disguise them as reassuring product descriptions.

08. Table Stability, Loading, Wobble & Common Failure Modes

“Wobbly” is a symptom, not a diagnosis. Rocking at the floor, movement within the pedestal, tabletop deflection, mounting failure and tipping are different mechanical problems. Treating all five as a missing leveling glide is how a poor installation survives until it fails during service.

Level does not mean stable. A table may sit flat on a perfectly even floor and remain unsuitable for its top or use. Conversely, an appropriately designed base can rock on an irregular floor if its glides are unadjusted or damaged.

Edge loading and top weight

An offset load creates a different overturning effect from an equal load centered over the support. Tall tables, cantilever arrangements, heavy overhangs and mobile constructions deserve particular attention. A heavier top can lower or raise certain risks depending on its position and construction; mass alone is not a quality or stability rating. The approval must encompass the proposed assembly and its intended use.

The recognized ANSI/BIFMA X5.5 commercial desk/table standard includes restaurants and cafeterias in its scope and addresses performance subjects including stability, leg strength and retention of unattached tops. A product is not certified merely because the standard exists. Request relevant test documentation where structural performance is represented as a selling point.

Field inspection and replacement

On a recurring service issue, identify the exact failure location before purchasing replacements. Photograph the underside attachment, condition of the top, base foot contact and any visible loose or missing hardware. Compare with the original installation instructions. An inexpensive glide replacement may resolve floor rocking; a failed attachment or unsuitable base may require replacement of major components or the complete assembly. Never conceal structural movement by adding makeshift shims or unapproved fasteners.

09. Restaurant Tables, Seating Geometry & Accessibility

The finished dining surface must work with the actual chairs, stools, booths and accessible seating arrangements. A table that meets its dimensional description can still place a base column against a guest's legs, block armchairs from approaching or fail to provide the required clear space for wheelchair use.

Seating and clearance interfaces

The relevant heights are the finished top, actual seat surface under use, underside apron/rail and any seat arm. Confirm clear knee/leg space for the selected seating and actual support configuration. Dining-height, counter-height and bar-height products must be paired with appropriately dimensioned seating; a nominal category label is not a substitute for the completed dimensions.

Booth tables introduce fixed seat geometry and less tolerance for a misplaced base. Pedestal placement, top projection, seat-to-edge relationship and access all need to be reviewed as an assembly. A long table with unobstructed guest-edge length can still fail to work if its legs block seating positions.

Federal accessible dining requirements

Under the 2010 ADA Standards, where dining surfaces are provided for food or drink, at least 5% of the seating and standing spaces at those surfaces must comply with §902, subject to the applicable exceptions and dispersion requirements. This is a percentage of dining spaces, not a blanket instruction to designate 5% of table units.

For covered adult accessible dining surfaces, the top must be 28–34 inches above the finished floor or ground. Section 902 requires forward clear floor space meeting §305 and knee/toe clearance meeting §306.

The complete knee/toe profile includes permitted depth changes with elevation; the table is not evaluated by checking one rectangular open box under the top. A low apron, mounting plate, crossbar, pedestal or wall bracket can obstruct the approach even with a surface height inside the stated range. Children’s-use situations and particular building conditions have additional provisions. Local and state requirements may impose further obligations.

A design review should check the actual constructed table, the approach from the accessible route, the guest position and the full required clearances together. A merchant label reading “ADA height” proves none of the other conditions.

Continue with Commercial Restaurant Chairs, Stools & Seating · Restaurant Booths & Banquettes · Restaurant Furniture Dimensions, Layout & Accessibility.

10. Custom, Specialty & Equipment-Integrated Restaurant Tables

The conventional furniture specification changes substantially when a dining table carries a grill, hot-pot appliance, induction cooktop, active exhaust component, custom counter or fixed service fixture. The furniture becomes part of a constructed installation. Its top cannot be fabricated independently of the selected equipment, and its support cannot be chosen solely from a generic table-base chart.

A cutout is a model-specific dimension

Two commercially specified round Korean barbecue roasters in ERS's equipment range illustrate the difference. One calls for a 355 mm diameter tabletop opening; a different downdraft installation calls for 363 mm. The openings differ by 8 mm despite both being round dining-station grills. The complete assemblies also differ beneath the table, particularly in exhaust architecture and required access.

Do not cut a tabletop from an appliance's advertised outside dimensions. The fabricator needs the approved opening drawing, flange or trim arrangement, support condition, finished top thickness, edge treatment and any model-specific clearance requirements. Where the cutout is marked “confirm before fabrication,” fabrication must wait for the approved drawing.

What belongs above and below the dining surface

A built-in cooking component also changes the dining footprint. A grill may occupy the center permanently while raw food platters, sauces, banchan or hot-pot ingredients compete for the remainder. The surface needed for those items must be assessed alongside the equipment's safe installation envelope.

Induction and enclosed equipment

Drop-in induction appliances illustrate why a correct cutout is necessary but insufficient. One documented single-hob commercial installation family specifies a cutout of approximately 13.13 × 13.13 inches, fresh-air supply of 70 CFM for the covered single-hob configuration and an open space below the equipment of 6 inches, subject to the manufacturer's stated forced-ventilation conditions. These are specific appliance-installation figures, not minimums to apply to every induction table. The current approved instruction for the actual appliance takes precedence.

Air inlets and outlets, controls, wiring, equipment heat and maintenance removal all influence the cabinet or base construction. A table with a seemingly generous top can be unsuitable if the under-table appliance collides with guest knees or if a decorative enclosure prevents equipment service.

Grilling, hot pot, chef counters and communal service

Korean barbecue tables may include combustion equipment and dedicated capture arrangements. Hot-pot tables may integrate electrical or gas heating with large shared serving requirements. Sushi and omakase counters are highly dependent on chef/guest elevation, handoff, visibility and attached equipment. Long communal tables introduce repeated user positions and more distributed support arrangements.

Each format warrants application-specific dimensions and genuine project coordination. A countertop drawing alone does not establish compliance with applicable gas, electrical, fire, sanitation, ventilation or accessibility requirements. The operator, equipment supplier, fabricator and relevant project professionals must coordinate those disciplines before release.

Fabrication release schedule

Before any specialty table is cut, the project record must identify the final selected appliance; actual installation sheet and revision; opening geometry; surface construction and permitted thickness; structural support; ventilation/cooling/utility routes; cleaning and service access; seating and accessibility implications; and approvals. Do not treat a visually convincing shop rendering as confirmation of these requirements.

Korean BBQ equipment and dining-system integration · Chef-counter and workstation coordination

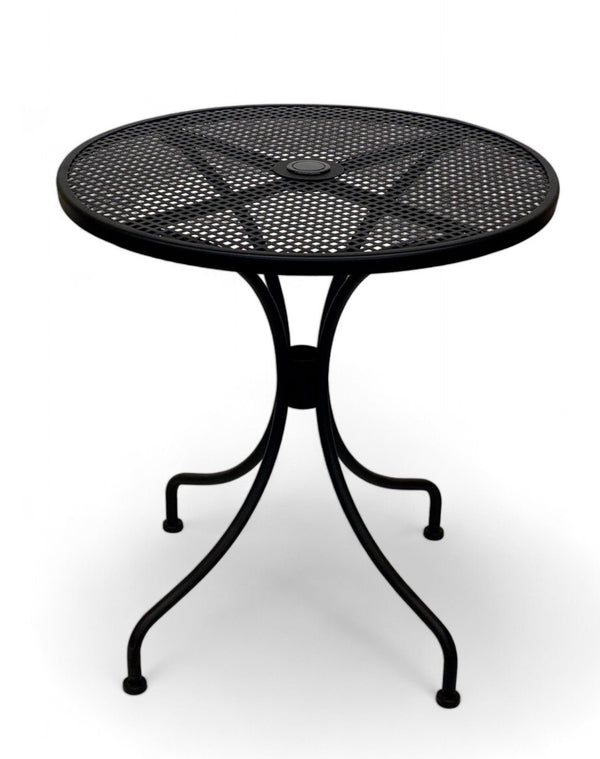

11. Commercial Outdoor, Patio & High-Exposure Table Systems

An outdoor tabletop must be specified together with an outdoor-appropriate support, mounting hardware and maintenance regime. A weather-resistant surface attached to a base designed only for dry interiors is not a complete outdoor furniture specification. Neither is a heavy freestanding base automatically suitable for an exposed roof deck or windy patio.

Exposure classes matter

A table beneath a roof may be protected from direct rain but remain exposed to humidity, washdown, sunlight, airborne salt or significant temperature movement. A fully exposed sidewalk or terrace has a different combination of conditions. Specify the real environment: direct sun, rain, salt air, freezing temperatures where relevant, continuous cleaning, high winds and whether tables are moved for storage.

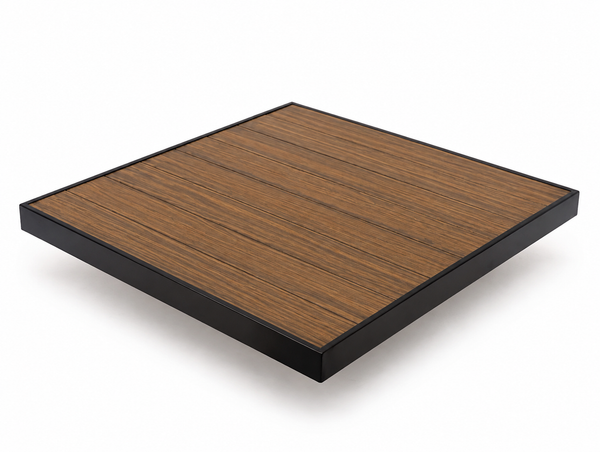

Slatted aluminum and synthetic outdoor surfaces can drain differently from solid compact panels, but joints, frame connections and support still require review. Coastal locations deserve particular attention to fasteners, aluminum/steel interfaces and actual corrosion performance. Do not assume that all stainless steels, coated steel or aluminum products have identical exposure resistance.

Permanent fixtures and umbrellas may impose requirements that the dining table was never intended to carry. Follow the support manufacturer's rules and the site's applicable conditions. Storage, routine inspections and replaceable glides should be planned before opening, not after the first season.

A complete patio table schedule should identify the approved top, base, fasteners, finished height, manufacturer exposure limits and care requirements. Our broader outdoor furniture reference addresses full patio layouts, environmental performance and furnishing programs.

Continue with Outdoor & Patio Restaurant Furniture.

12. Worked Restaurant Table Specifications: Complete Examples

A complete specification makes the purchasing decision reproducible. These examples show how the required information changes from ordinary modular dining tables to shared service, outdoor installations and equipment-integrated construction. Where exact model approval is not documented, the example records the open issue rather than inventing a compatible combination.

Example A — Compact indoor two-top, purchased as separate components

Dining brief: two guests, casual service, compact floor plan, routine daily cleaning, movable tables.

Surface starting point: 24 × 24-inch indoor laminate tabletop, square edge, published nominal thickness 1½ inches. Support starting point: dining-height iron cross pedestal with a published 22 × 22-inch base footprint and 28-inch nominal height. These component descriptions exist in ERS's current assortment and demonstrate a real modular buying situation. Both are sold as separate pieces.

What is established: nominal top size, nominal top thickness, base footprint/height class and material/finish descriptions. What must be confirmed: actual top construction and weight, mounting plate/hole pattern, support rating for the specified top, finished height, included fasteners and final finish designation. Ordering the two components on one invoice does not prove their combined compatibility.

A proper approval record identifies each exact product, confirms attachment, and establishes finished assembled dimensions before release. The product title and detailed specification must also agree on finish and material; any catalog discrepancy needs resolution at quote stage.

Example B — Manufacturer-matched outdoor dining table

Dining brief: small patio seating, a compact rectangular dining surface, movable furniture and periodic outdoor cleaning.

Documented geometry: a manufacturer-published 24 × 32-inch outdoor top and an 18 × 18-inch supporting base are listed as a compatible pairing within that maker's own range. The publication additionally describes an integrated attachment arrangement; substituting unrelated supports is not covered by that published pairing.

What is established: manufacturer's pairing by top size and support category. What the purchasing schedule still needs: exact finish codes and active SKUs, current revision of the installation documentation, hardware contents, assembled finished height, appropriate site exposure, freight/assembly arrangements and any required accessible seating conditions.

The conclusion is not that every 24 × 32-inch top should receive an 18 × 18-inch base. It is that the appropriate pairing comes from the actual top and approved support combination, not a general proportion rule.

Example C — Four-person shared-dining table

Dining brief: four guests, individual receiving dishes plus several shared plates, sauces and beverage service. Determine the peak simultaneous placement before choosing the shape.

Candidates: 30 × 48-inch rectangle (1,440 sq in.) and 42-inch round (about 1,385 sq in.). The modest difference in gross area does not decide the configuration. The kitchen's actual plates, serving trays and sauce dishes must be arranged at full scale, including edge positions and center access.

What is established: geometry and the required evaluation method. What requires actual evidence: measured arrangement results, adequate guest/service access and the final selected material and base. The example is a geometric and operational specification brief, not an invented ERS tabletop experiment.

Example D — Integrated cooking table

Dining brief: fixed Korean barbecue station with a round built-in cooking unit and concurrent shared servingware.

Documented fabrication contrast: two real equipment options in ERS's commercial supply range specify round table openings of 355 mm and 363 mm. Their under-table service/ventilation arrangements also differ. Select the exact appliance first; only then release the approved surface opening and support construction.

Minimum schedule: appliance and revision; approved opening; top material/thickness and heat-related requirements; structural support and enclosure; gas/electrical and exhaust/cooling coordination; service removal access; guest legroom; accessibility; required approvals. A roaster product listing does not constitute complete approval of the assembled table or building installation.

At-a-glance evidence status

A credible reference does not turn a partially specified idea into a fictitious success story. It shows exactly which documents complete the purchase.

13. Restaurant Table Maintenance, Repair & Component Replacement

Restaurant tables are handled far more often than their showroom condition suggests. They are wiped between turns, moved for parties and cleaning, loaded at their edges, struck by chairs and occasionally stored. The long-term value of a specification depends on how the assembly tolerates those conditions and whether the parts most likely to wear can be maintained or replaced.

Surface and edge care

Follow the actual top manufacturer's instructions for cleaners, contact time, moisture, pads and disinfectants. Laminated wood-core tops need particular attention at penetrations and unfinished seams; water entering the core can damage material the visible surface otherwise protects. Wood finishes, natural stone, metals, compact laminates and solid-surface constructions may require different care. Hot vessels and localized heat need material-specific protection.

Inspect edges and corners first. Chips, loosened edge banding, failed seals, swollen substrates and damaged corners deserve earlier attention than a uniformly worn but intact surface. Some finishes can be refinished or spot repaired; other constructions are better replaced when their structural core is damaged.

Inspect the mechanical assembly

Check glides and floor contact, fastener integrity, column connections and signs of corrosion or fatigue as applicable. For folding or adjustable tables, inspect locks and mechanisms according to their manuals. Moving tables by dragging rather than lifting can damage feet, adjustment components or joints even when the visible top survives.

Do not tighten unknown fasteners into fragile substrates blindly. Confirm the correct hardware and approved procedure. A wobble that continues after proper leveling deserves examination of the mounting and column, not more shims.

Replacing a base under an existing top

Record the top's length, width/diameter, thickness, construction and weight; photograph the underside; measure the plate/rail and hole pattern; identify inserts and visible reinforcement; confirm the old finished height; and document the new intended environment. If available, locate the original order or assembly instructions.

For a proprietary attachment system, the original maker's replacement components or an expressly approved alternative may be necessary. For a conventional top plate, a visually similar replacement still requires confirmation of fastening and support limits.

Repair versus replace

A restaurant that records exact model numbers, top finishes, mounting hardware and replacement parts at opening avoids unnecessary redesign when one component fails. For multi-unit operators, that documentation belongs in the master FF&E schedule.

14. How to Specify, Compare & Purchase Complete Restaurant Tables

A purchasing description such as “black base with walnut-look top” is not a complete restaurant furniture specification. It leaves the buyer, supplier and installer to resolve structural, dimensional and scope questions after pricing. A real schedule defines the top, support, mounting, finish, quantity, delivered condition and any approvals needed before release.

The table schedule

For a typical dining-room rollout, separate table types from table quantities. The schedule may contain compact square two-tops, four-seat rectangles, round family tables, an accessible dining configuration and a few specialty or patio tables. Do not replace the entire schedule with one average price per seat. Every distinct top and base combination must be costed and approved on its own terms.

Compare complete prices—not fragments

One quote may include a finished table, mounting hardware and delivery. Another may price a bare base and an unmounted top, excluding freight and installation. Additional line items can include packaging, receiving, assembly, floor anchorage, custom cutouts, finish samples, storage and damages. The comparison is valid only after quantities, specifications and scope are aligned.

The same applies to supply time. A stocked base does not establish that its desired custom top or finish is available. Record component lead times and substitution rules separately, especially for restaurant openings with fixed installation dates.

Substitution control

A proposed substitute should be checked against material and finish, dimensions, weight, attachment, base support, completed height, seating interference, accessibility and service equipment—not merely color or nominal top size. Any change that affects the approved assembly returns to technical review.

If a particular finish or model must remain available for future locations, identify replacement continuity in the purchasing requirements. Where long-term supply cannot be guaranteed, specify an orderly replacement or substitution policy rather than relying on identical stock indefinitely.

Before purchase release

• Confirm the exact top and base products, quantities, construction and finishes.
• Verify the manufacturer's supported assembly or receive appropriate approval for the planned combination.
• Confirm finished height, glides, mounting and included hardware.
• Resolve guest legroom, accessible positions, special equipment and exposed environments.
• Confirm freight, delivery site, receiving, assembly, installation and inspection responsibilities.
• Review the applicable care instructions, warranty and replacement-part route.
• Ensure fabrication approvals and utility interfaces have been signed off before irreversible work.

For a straightforward replacement, provide photographs and measurements of the existing furniture. For a new restaurant or multi-unit purchase, provide the plan, table schedule, seating types, desired finish program and any equipment drawings. ERS can then source around the actual project requirements, rather than around a disconnected list of tabletop sizes.

Eden Restaurant Supply supports restaurant furnishing as part of broader foodservice procurement, bringing furniture decisions together with serviceware, operating equipment and project supply requirements. The result should be specified furniture the restaurant can continue to operate and replenish—not only furniture ready for opening photographs.

15. Commercial Restaurant Table Questions: Quick Answers

What is the standard height of a restaurant dining table?

A common finished dining-table height is approximately 28–30 inches. Counter tables are commonly around 34–36 inches, and bar-height tables around 40–42 inches. Verify the finished top-to-floor height after the actual top, support and glides are assembled; accessible dining surfaces have additional requirements.

What size table should seat four guests?

A 36-inch square, 30 × 48-inch rectangle, or approximately 42-inch round is a useful starting comparison. Smaller nominal four-tops appear in the market, but real suitability depends on the serviceware, seating and shared dishes. The menu and simultaneous tabletop occupancy decide whether the compact option works.

What is the difference between a tabletop and a complete table?

The tabletop is the finished dining surface and its construction. A complete table includes the approved structural supports and the parts required to connect them. Tops and bases sold separately are not automatically a verified assembly.

Can any table base support any tabletop?

No. The permitted combination depends on exact top dimensions, construction and weight; support geometry; attachment; finished height; and the manufacturer's published conditions. A generic size chart is preliminary guidance, not approval of an arbitrary combination.

How do I choose a base for a heavy stone or solid-wood top?

Obtain the actual finished top weight, dimensions, thickness, mounting requirements and approved support arrangement. Match those against a base documented for that top and application. Do not treat maximum top size as a substitute for maximum permitted top weight.

Why is my restaurant table wobbling?

It may be rocking on an uneven floor, moving at a fastener or column connection, flexing under load, or using an unsuitable support. Identify which part actually moves before changing glides, hardware or the base.

What makes a restaurant dining table accessible?

For covered adult accessible dining spaces under the federal ADA rules, the surface height is 28–34 inches, with the required forward approach and knee/toe clearance. The standards generally require at least 5% of seating and standing spaces at dining surfaces to comply, subject to the applicable provisions. Height alone does not establish compliance.

Can a built-in grill or induction cooker be installed into any tabletop?

No. The selected appliance's installation drawing governs its cutout, material/support conditions, ventilation or cooling clearances and utilities. Confirm the exact equipment configuration and fabrication requirements before cutting the top.

Can an indoor table be used outside?

Only where the complete tabletop, support, attachment hardware and finished assembly are suited to the actual exposure. A weather-resistant surface on an indoor-only base is not a documented outdoor configuration.

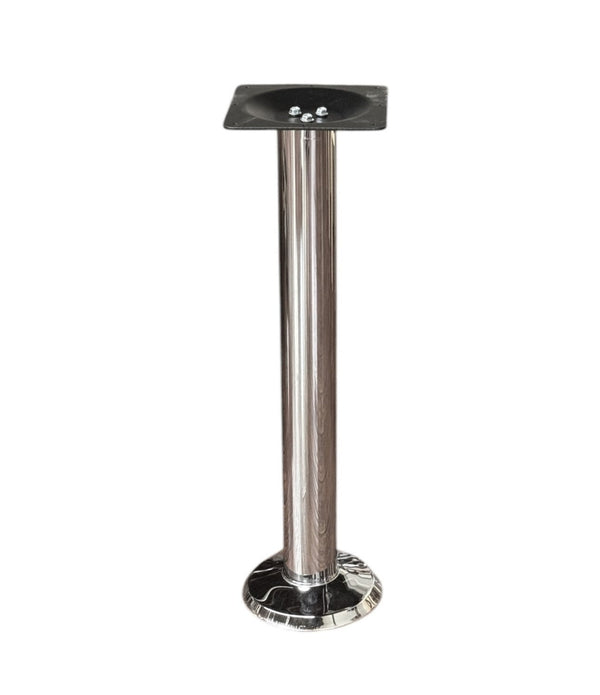

What is required to replace a restaurant table base?

Identify and measure the existing top, its weight/construction, mounting interface and finished height; photograph the underside; and find the documented compatible support. Matching the old base's appearance is not enough.

What should a complete restaurant table quotation include?

The exact tabletop and base configuration, hardware, finished dimensions, quantities, finishes, technical approvals, delivery, assembly/installation scope and replacement or substitution conditions. Compare the complete delivered scope, not a loose component price.

16. Research Basis, Technical Sources & Specification Limitations

Published by Eden Restaurant Supply · 2026 edition. ERS has supplied restaurant and hospitality operations since 2002 and draws on documented equipment, tableware and procurement experience across more than 24,000 restaurant and hospitality locations. The technical statements in this resource are distinguished by their source: applicable requirements, published manufacturer specifications, independent research, reproducible geometry and actual ERS observations where identified.

Dimensions labeled common or typical describe commercially encountered furniture sizes, not mandatory standards or guaranteed capacities. A tabletop/base recommendation labeled documented applies to its identified product configuration and relevant manufacturer conditions. Other proposed combinations remain conditional or subject to confirmation. Illustrative diagrams explain relationships; they do not replace exact fabrication drawings or product approvals.

Relevant technical requirements

The U.S. 2010 ADA Standards, particularly §§226, 305, 306 and 902, govern the federal accessible dining-surface provisions discussed here. Applicable state or local rules, adopted codes, the building's circumstances and the project scope must also be addressed. For structural performance, ANSI/BIFMA X5.5-2021 is a recognized commercial desk/table standard whose scope includes restaurant and cafeteria uses. Its existence does not certify every table sold for hospitality use. Food-equipment sanitation requirements apply according to equipment category and actual use; do not assume ordinary guest dining tables universally require food-preparation table certification.

Technical provenance

Exact-model figures, where shown, derive from documented product literature and are bounded by the stated configuration. Manufacturer instructions take precedence for mounting and installation. Any original ERS physical measurement must identify the tested objects, setup, date, method and limitations. Geometric illustrations are not represented as completed field tests.

Source records, diagram revisions and corrected product information should be updated together. A changed base rating, tabletop construction or appliance cutout must be corrected everywhere it appears, including any connected specification tool or product reference.

For technical sourcing, complete restaurant furniture packages, or questions about a particular table configuration, contact Eden Restaurant Supply.

Continue with Commercial Restaurant Furniture: The Complete Reference · Commercial Restaurant Chairs, Stools & Seating · Restaurant Booths & Banquettes · Outdoor & Patio Restaurant Furniture · Furniture Materials, Construction & Performance · Restaurant Furniture Dimensions, Layout & Accessibility · Restaurant Furniture Design, Styles & Applications · Restaurant Furniture Costs, Specification & Procurement.
