Seafood Refrigeration, Freezers & Cold-Chain Equipment

Storage, processing and access

A storage freezer maintains inventory. A blast chamber intentionally removes heat from a defined load. A thawer transfers heat into frozen food under controlled conditions. A transport carrier maintains food that should already be in its intended condition. These jobs cannot be specified from the lowest temperature printed on a brochure.

Access changes the purchase too. Large covered loins can favor a door cabinet with flexible shelves. Repeated retrieval of small ingredients can favor mapped drawers or a rail. Ice-supported fish holding introduces pans, grates and waste drainage. The right equipment combination follows the food and the work, rather than the restaurant's price tier.

Size the simultaneous occupied load

Storage capacity must cover what is present at the same time: a new delivery before the older lot is exhausted, food thawing on protected trays, service replenishment, completed packs awaiting dispatch and stock temporarily displaced for cleaning or defrost.

A tightly packed cabinet can contain the nominal quantity yet fail as working storage because a long tray cannot pass through the opening or older stock cannot be retrieved without dismantling the load. Conversely, a modest cabinet can be entirely adequate when the supplier, delivery cycle and container arrangement suit the operation.

Start with the peak occupied arrangement and its access routes. Whole-kitchen capacity planning then determines how that refrigeration interacts with preparation, cooking, assembly and dispatch.

Reach-ins and the usable seafood load

A commercial reach-in is a strong default for covered portions, loins and reserve ingredients. Adjustable shelves accept varied containers; tray slides can organize repeated pan formats. Half doors can restrict the opening used for a particular retrieval, while full doors provide a different loading aperture. Neither arrangement should be selected without the occupied container dimensions.

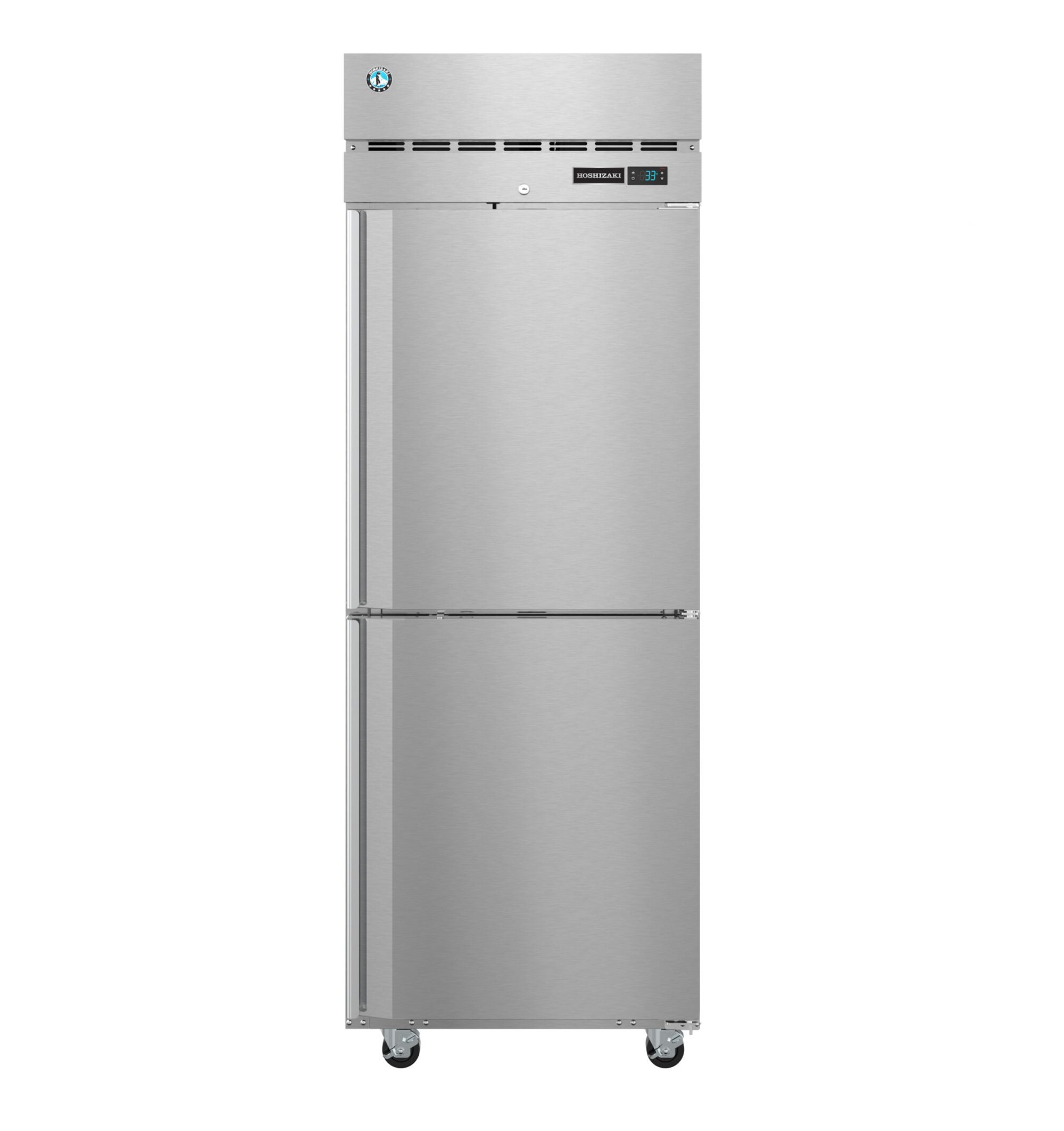

Hoshizaki's R1A-HS illustrates the distinction between cabinet volume, entry and support. Its specification lists 23.10 ft³ AHAM storage, a 21¾ × 27¼-inch half-door opening and three 21¼ × 26-inch shelves. The cabinet reaches 59¼ inches deep with its door open at 90°. Those figures answer different questions: what fits inside, what passes through the opening and what occupies the aisle during use. The published 31–52°F controller range is also separate from its 45–100°F ambient operating range and the food condition required by the establishment. Hoshizaki R1A-HS specifications, dimensional sheet.

Choose the shelves, slides and containers together. Preserve the intended supply and return air paths, including space around the stored items. A front-breathing condenser describes how the refrigeration machinery exchanges heat with the room; it does not make the cabinet interior immune to blocked airflow. Hoshizaki's upright instructions require protected food, cold loading and unobstructed air openings. Steelheart upright manual.

High-humidity cabinets for exposed seafood

High-humidity preservation takes another approach. Cooling through the cabinet walls limits direct forced air at exposed food and helps retain moisture. That can be valuable for an appropriate uncovered seafood program, where ordinary forced-air reserve storage with covered containers does a different job.

Hoshizaki Japan documents air-pass wall cooling and brine-circulation wall cooling. On its stated 30°C ambient basis, the air-pass family lists −6 to +12°C and at least 85% humidity; the BR family lists −2 to +5°C and at least 90%. Humidity is not independently adjustable and varies with the food and operation. The brine system also brings its own solution and manual-defrost requirements. Hoshizaki wall-cooling designs.

These distinctions matter more than the phrase “high humidity.” The cooling surface, air movement, temperature behavior and defrost arrangement must suit the intended load. The air-pass and brine arrangements also impose different defrost and service requirements, which belong alongside the product layout in the selection. The Japanese range is a useful technical reference; U.S. electrical configuration, certification and support require a suitable supplied model. Hoshizaki high-humidity equipment.

For covered reserve, buy a well-configured commercial refrigerator. For a defined ice program, buy the complete drained holding arrangement. For exposed-product moisture preservation, qualify the actual wall-cooling design. Intentional fish aging has a different objective and is discussed in Section 12.

Browse ERS commercial refrigerators and freezers.

Convertible means one chamber changing jobs

True's FLX switches between 33–38°F refrigeration and −10 to +6°F freezing. It does not provide those conditions simultaneously. The flexibility is useful when the operation's longer-term allocation of chilled and frozen reserve changes. Existing inventory needs an appropriate destination during conversion, and the new condition must be established before loading. True T-23F-FLX-HC.

Buy an upright where visibility and repeated retrieval are worth the shelf arrangement. Buy a chest where a deliberately organized packaged reserve benefits from horizontal space. Avoid a generic energy percentage favoring either shape: daily energy depends on the actual appliance, temperature, ambient and test basis. Neither ordinary storage format acquires a documented blast-freezing or fish-treatment process simply by reaching a low setpoint.

Packaged and remote refrigeration

A factory-packaged system reduces field refrigerant-circuit work. Norlake's Capsule Pak ECO places much of its evaporator assembly outside the storage volume, preserving interior space, while still requiring an 18-inch clear zone around its interior diffuser. Factory assembly does not supply the building's ventilation, electrical preparation, service access or every condensate solution. The condenser must reject heat where the unit is installed. Capsule Pak ECO manual.

Remote equipment moves the condensing unit to another location. That can relocate heat and some noise, but introduces a line route, equipment site, electrical/control work and service access. Norlake's current Split-Pak A2L range illustrates a contemporary matched arrangement with R454A/R454C configurations, specified line arrangements, preinstalled leak sensors and safety valves supplied for field installation. Precharged quick-connect options apply to the stated package and line lengths; they do not make every remote project plug-and-play. Norlake Split-Pak, A2L field arrangement.

Compare the complete scope and usable room. Obtain one approved model-specific ambient, clearance and utility submittal rather than combining the least demanding figures from different brochures or manual passages.

Holding duty and incoming product

Refrigeration load includes heat through the enclosure, entering air, incoming product and internal sources such as people, lights and fans. Already-cold cartons and an equal weight of warm food impose different duties. A bulk delivery changes both product load and door-open infiltration. Repeated dispatch can make a reserve room function as a continuously accessed staging area. Heatcraft refrigeration-load reference.

Give the designer actual entry condition, quantity, delivery pattern, containers, access and release requirements. Do not use horsepower per cubic foot as a substitute. The room must preserve its air paths with the intended shelving and occupied load, not only reach temperature while empty.

Contact and drained holding

Ice removes heat as it melts. Distributed contact and cold meltwater can transfer heat effectively around suitable fish; top-only icing can leave other parts of a load poorly served. A large fish cools differently from the same mass divided into smaller pieces. Initially cooling fish and offsetting heat gain around already-chilled stock therefore require different amounts of work. FAO fish-icing reference.

Flake ice distributes gently and uniformly around an appropriate load, but occupies substantial volume. Water already present in wet ice reduces its remaining cooling capacity per unit weight. Prolonged contact with water also has product-dependent quality consequences. Specify the fish, support and drainage arrangement rather than assume that all seafood should sit in loose ice or standing meltwater. FAO fresh-fish handling.

Covered portions and finished packs may require a dry container separated from the ice. Live shellstock has its own conditions. The ice machine's clean storage bin remains the source of clean ice, not a fish-holding vessel.

Buy the opening draw and the replenishment rate

A full bin supplies an immediate draw. Production refills it over time. A bin-full control stops additional production, so a machine that was idle overnight has not banked another day's rated output beyond its physical reserve.

Specify the opening fill, later draws, coincident use by other departments and expected air/water conditions. More bin volume solves a different constraint from more production. A matched modular head and bin may be appropriate when an integrated undercounter unit cannot provide the needed combination.

Keep the capacity labels intact. Two “pounds of ice” figures are not automatically standardized equivalent reserves when their fullness and density conventions differ. For a purchase controlled by one large draw, establish the usable quantity in the intended arrangement rather than rely on unlabeled bin-capacity bars.

Water, waste and service access

The installation must supply the specified potable water, reject condenser heat and drain correctly. Hoshizaki's F-330BAK documentation calls for sloped/vented drainage with an indirect air-gap termination, service withdrawal and access for auger removal. Front-in/front-out airflow helps placement; it does not remove the need to reach or extract components. Its hourly flush is one machine function, not the full cleaning and sanitizing program. F-330BAK installation and maintenance manual.

Include water treatment appropriate to the source, shutoff, drain route, filter access, clean-ice handling and the approved operating/service envelope in the quote. Seafood ice equipment must remain maintainable after it is installed beneath a counter.

Blast chilling cooked components

A blast chamber gives warm production its own heat-removal station. Compatible pans, controlled food depth, air circulation and product probes make the load measurable. Completed food can then move into reserve refrigeration, releasing the chamber for the next batch.

For California retail operations, the conventional cooked potentially hazardous food cooling requirement is 135°F to 70°F within two hours and 41°F or below within six hours total. Potentially hazardous food prepared from ambient-temperature ingredients must reach 41°F or below within four hours. A manufacturer's final endpoint and total cycle time do not alone document the intermediate checkpoint. Shallow pans, thinner portions and other permitted methods remain legitimate; the active appliance earns its place through the actual warm load and required release schedule. California Retail Food Code, §§114002–114002.1.

The FDA's 2026 national model also contains an approval-dependent option for specified cooked food no more than two inches deep, uncovered, in refrigeration maintaining ambient air at 41°F or below, with continuous electronic time/air monitoring. Its exclusions and approval requirement matter. It is not automatic California permission to cool any uncovered pan in any refrigerator. FDA Food Code 2026, §3-501.15(C).

Freezing rate and the thermal center

Cold moving air improves heat transfer at the surface. The center must still lose heat through the food. Thickness, shape, starting condition, wrapping, contact and spacing therefore affect freezing time alongside weight. A shallow portion load and a solid loin can weigh the same yet demand very different center-cooling times.

As water freezes, refrigeration must remove latent heat as well as lower temperature; chamber air and the food's thermal center therefore follow different histories. Faster freezing can change initial ice-crystal formation. Subsequent storage also matters: crystals can change, solutes concentrate in remaining unfrozen water, and protein changes, oxidation and dehydration affect quality. “Flash freezing locks in freshness” is an inadequate equipment specification. The useful question is what happens to this product, in this arrangement, through processing and storage. FAO freezing-time mechanics, temperature and frozen-fish quality.

The chamber remains occupied after the active cycle

Product-probe control follows the measured location. Timed control follows elapsed time. Soft-chill and staged programs also change the air applied during the cycle, including moderating surface freezing on sensitive food; choose the program behavior alongside the load rating. American Panel program descriptions. A probe should represent the food that matters to release, not a convenient thin portion that finishes before the rest. Mixed pans, different thicknesses and separate batches require an explicit sensing and loading plan.

Count loading, active processing, any treatment hold, subsequent holding, unloading, cleaning and defrost in the chamber schedule. Irinox's Pro configuration adds functions including thawing; that flexibility is valuable when the timing fits. Overnight thawing and a long freezing-treatment hold cannot also be counted as unused blast-chilling capacity.

For a repeatable cooked-component program, specify the entering food and mass, pan depth and spacing, representative probe placement, required food history and downstream refrigerator. Automatic holding provides a transition interval. Turning the process chamber into long-term inventory storage consumes the next batch's capacity.

Larger reach-in and roll-in equipment

A larger reach-in earns its space when pan traffic and staggered batches exceed the compact chamber's useful schedule. A roll-in changes the handling method as well as capacity.

Traulsen's June 2026 TBC1H accepts a rack up to 27 W × 29 D × 72 H inches with wheels inboard. The loaded frame, wheels, pans and kitchen route must all fit. Its self-contained R290 system is expressly the maintenance system; active blast chilling needs a remote condensing unit and weather housing supplied by others. The cabinet price is therefore not the price of a complete active refrigeration installation. Nor does the TBC13 freezing chart transfer automatically to this roll-in. Traulsen TBC1H June 2026 sheet.

For commissaries and multi-location production, evaluate loaded-rack movement, remote plant, batch sensing and downstream storage together. A larger headline load is useful only when the actual production can enter, finish and leave on schedule.

Liquid freezing for packaged portions

Liquid freezing improves contact heat transfer around suitably sealed food. The food's internal conduction still matters, but a bath can make repeated small packaged portions a compelling application. The package, basket, liquid inventory and draining step become part of the process.

Hoshizaki Japan's HLF-2A and HLF-3A use a −35°C ethanol bath and publish respective capacities of 2 and 3 kg per hour. The smaller basket has a 327 × 220 mm internal footprint. HLF-2A contains 28–32 L of ethanol and weighs approximately 95 kg with that charge. These are Japanese 100 V machines, not established U.S. configurations. Hoshizaki liquid-freezer lineup, HLF-2A specification.

Compare hourly recovery and successive loads, not just an isolated small-portion demonstration. Package dimensions, trapped air, portion thickness, sealing, lifting and post-bath draining affect the usable arrangement. An air chamber more naturally accepts uncovered pans and varied tray formats and may provide both chilling and freezing. Liquid freezing adds packaging and bath management before completed inventory moves to suitable storage. Hoshizaki application and handling details.

The package route must also suit the jurisdiction. California's ordinary fish reduced-oxygen-packaging provision requires frozen status before, during and after packaging; its separate short-duration exemption does not silently remove that fish-specific condition. A Japanese recommendation to vacuum-pack fresh fish before immersion is not a California retail procedure. Resolve the permitted package and process together. A bath temperature alone also does not establish an ambient-air-based parasite schedule. California §§114057–114057.1.

The complete approval and records program belongs with equipment specifications and food-safety controls. The equipment order should already identify the food, loading geometry, intended process, measurement and downstream destination.

Color and frozen history

Primary tuna research demonstrates why temperature history matters without producing one universal storage-life promise. Chow and colleagues studied bluefin, yellowfin and bigeye muscle. One bluefin experiment first stored the meat at −80°C for two months, then at −20, −30, −40 or −80°C for a month before thawed/iced assessment. Lower pre-storage temperatures slowed subsequent discoloration, and species differed. The initial −80°C history is part of that result; the experiment did not simply assign freshly delivered restaurant tuna to four freezers. Chow et al., 1988.

Tanaka and colleagues examined commercially onboard-frozen yellowfin, southern bluefin and bigeye in semi-dressed form at −40, −30 and −20°C. Their color-based assessment likewise depended on species and product form, and some reported limits were the duration reached rather than an observed failure point. Tanaka et al., 1984.

This supports deliberate low-temperature preservation. It does not make red color proof of safety, establish a universal −60°C requirement for all seafood or show that a freezer restores an earlier texture or pigment condition.

Storage purpose and physical access

Dairei explicitly identifies its low-temperature equipment as storage freezers rather than quick freezers. Keep that distinction in the purchase brief. Receiving already-frozen specialty tuna is a different duty from introducing a warm or thick load and demonstrating a freezing process. Dairei storage-purpose statement.

A chest can offer useful horizontal package space and a low profile. It also requires lid clearance, a practical retrieval depth and an organized lot arrangement. Baskets and separators should expose the portions required without repeatedly disturbing the entire inventory. An upright arrangement favors visible shelf retrieval, but its usable openings and low-temperature capability must be established for the selected model.

Regional models illustrate the installation difference. Hoshizaki's Japanese deep-freezer family publishes a −60 to −50°C adjustment range. The Singapore HDF-140A-SEA sheet specifies 220–240 V/50 Hz and clearances of 100 mm at each side, 150 mm behind and 1,000 mm above. A familiar brand and compact body do not turn those data into a U.S. electrical or support specification. Hoshizaki Japan deep freezers, Singapore HDF specification.

A compact U.S. offer still needs a suitable room

The current U.S.-listed US-SF150 offer lists 133 L/4.7 ft³, −30 to −60°C, 110 V/60 Hz, an external-probe port and a 77°F maximum ambient. That last figure can decide its suitability for a hot kitchen before capacity does. Require current manufacturer identification, certification, port details and service documentation for the supplied unit. Current SF150 offer.

The probe port is commercially important. Independent sensing can reach the cold compartment while keeping the electronics within their own operating limits. Section 13 details both a suitable local recorder/probe combination and a remote-monitoring example. A built-in buzzer does not establish off-site notification during a power or network failure.

The useful sequence is supplied frozen condition, prompt specialist storage, deliberate retrieval, suitable thawing space and working refrigeration. Buy the store only with a credible release and monitoring arrangement. Additional ultra-low capacity cannot compensate for a thawing bottleneck or an unsuitable installation environment.

What a dedicated thawer provides

Traulsen's Even-Thaw uses controlled heat input and rapid circulation of cold air, with refrigeration controlling the surrounding environment. Heat moves into frozen food while the cabinet manages that process. The current family statement is up to 300 lb per section of portion-sized product in approximately 22–24 hours. That is not a universal large-loin or block rating. Traulsen Even-Thaw.

The February 2026 RET132EUT sheet provides a concrete arrangement: 14 full-sheet 18 × 26-inch pans or 28 pans of 14 × 18 inches, with tray positions at four-inch centers. It specifies 115 V/60 Hz and NEMA 5-20P. The cabinet is intended for thawing and automatically returns to refrigeration when thawing finishes. That transition accommodates timing; it does not make the same space simultaneously available for the next thaw and unrestricted reserve storage. Current RET132EUT specification.

Qualify the actual portion/package arrangement and required release time. A dedicated machine earns its place by releasing primary-storage positions and delivering the recurring thawed load when production needs it.

Packaging and running-water thawing

Removing a reduced-oxygen barrier changes how the fish is protected and handled. Plan the tray, cover/protection, drainage and next refrigerator before opening the package.

Under FDA 2026 §3-501.13(E), fish in reduced-oxygen packaging labeled to remain frozen until use is removed from that environment before refrigerated thawing, or before/immediately upon completion of the specified running-water thaw. A bag used to prevent water contact and an oxygen-restricting original package serve different purposes. FDA thawing provisions.

California's refrigerated method maintains food at 41°F or below. Its running-water option requires complete submersion in potable running water at 70°F or below, sufficient velocity to agitate and flush loose particles, and no more than two hours. The FDA model's different four-hour accounting for certain raw food requiring cooking is not permission for four hours of water thawing of ready-to-eat sushi fish in Los Angeles. California §114020.

A water-thawing station therefore needs a workable submerged load, potable supply, overflow/drain path, contamination protection and a ready refrigerated destination. Water sprayed over partly exposed food is not the completely submerged arrangement. Los Angeles guidance recognizes specified cleaned/sanitized sink-use arrangements; it does not support a universal instruction that every operation buy a new dedicated thawing sink. Los Angeles retail inspection guidance.

Choose dedicated thawing when recurring volume and release timing justify it. Use ordinary refrigerated space when the actual process already fits. For the wider production schedule, connect these occupied stages to workflow and capacity sizing.

Refrigerated rails and protected replenishment

A rail serves repeated access to small ingredient quantities. Turbo Air's MST-48-18-N uses forced air around the pan area and separates that zone from the lower reach-in to intercept spills. The current sheet provides eighteen ⅙-size four-inch-deep pans and accommodates six-inch pans, with an insulated cover and lower storage for replenishment. Current MST-48-18-N, manufacturer pan/cooling sheet.

The pan arrangement is part of the cooling design. Wrong supports, blocked inlets or an improvised loading field change that arrangement. Follow the selected manufacturer's pan, preconditioning and cover instructions. A rail should receive food in its intended cold condition; a cabinet display does not prove every ingredient at the exposed surface has reached it.

The lower cabinet and active rail have different access and measurement needs. Keep larger reserve quantities protected and replenish deliberately. A rail gives simultaneous access; it does not eliminate the need for covered reserve or turn the station into an active pull-down chiller. Turbo Air's rear-airflow and maintenance instructions remain relevant even with its self-cleaning condenser brush, which may not remove grease. MST hydrocarbon manual.

For larger covered pieces, prioritize a suitable door opening and shelf field. For assigned small ingredients, use a resolved drawer map. For repeated assembly, use a properly loaded rail with nearby reserve. A fish file adds a separate ice/drain application. A refrigerated neta case adds showcase and chef-access requirements; it should be supported by this storage rather than counted as the whole seafood reserve.

Count occupied packages, not nominal shelf area

Use the loaded, closed outer package, including lid and label projections. Then allow the intended facings, retrieval clearance, shelf height and airflow boundaries. A mathematically dense arrangement may conceal labels, trap older stock or put packs beyond the allowed edge.

The TGM shelf is 21½ × 22½ inches. An axis-aligned 18 × 26-inch production sheet pan does not conventionally fit it. A kitchen assembling on full sheets needs a transfer into retail packs or another holding format. The TOM shelf is much longer but only 16 inches deep; width does not erase the package-depth question.

Confirm the exact model's sanitation certification and intended packaged-food application. The selected manufacturer pages identify ETL Sanitation; a generic logo or beverage count should not stand in for the scope of the supplied model's listing. Certification databases can include model-specific packaged-food restrictions. NSF commercial refrigeration listing directory.

Give finished stock a staging destination

Retail cabinets should receive food in their intended cold condition. A controller's rapid-cooling feature is not a documented cooling process for a newly produced sushi load. Cooked components belong in the appropriate cooling process before their subsequent use and holding.

Completed packs waiting for replenishment or dispatch need protected cold space of their own. Size that stage for the simultaneous finished batches awaiting movement, with suitable trays/racks, lot or order identity and separation from raw-product handling. A larger display cannot remedy a production queue that waits in the room because no staging location was provided.

This is especially important in grocery and grab-and-go sushi operations, where customer-facing stock and replenishment stock are different occupied stages, and in takeout production kitchens, where dispatch timing controls the finished-pack load.

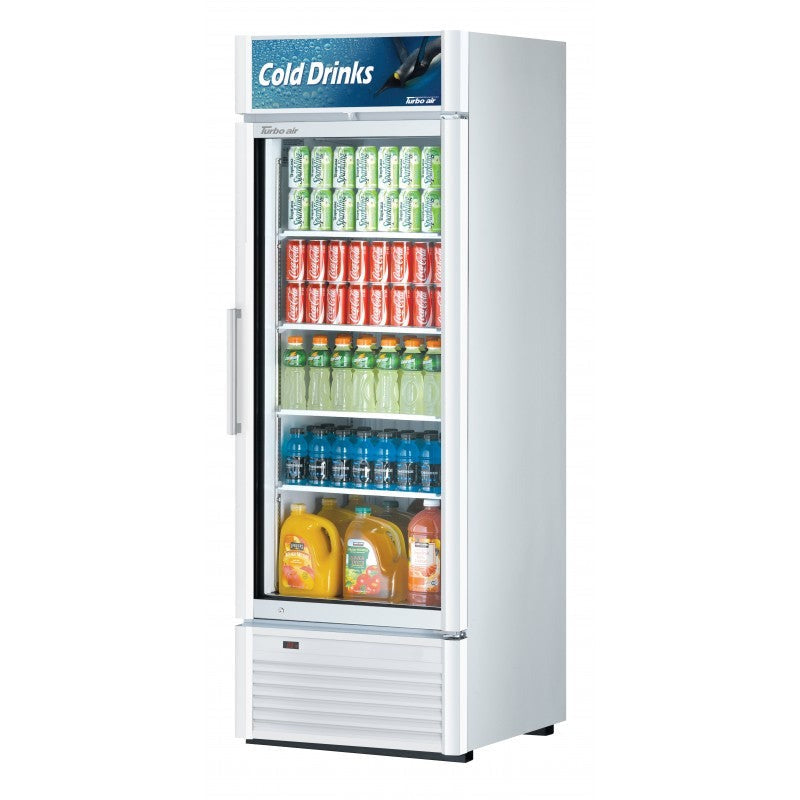

For an enclosed merchandising inquiry, ERS's TGM-23 listing identifies the TGM-23SDW-N6 platform and offers a quotation route. Match the ordered finish, configuration and current submittal to the intended installation.

Insulation and conditioned cold plates

An insulated carrier slows heat exchange. A conditioned cold plate provides additional thermal reserve. Match both to the actual pan or finished-pack arrangement, closure, fill, handling weight and opening pattern.

Cambro's CP3253 is a 53 × 32.5 × 3 cm GN 1/1-format plate listed for specified carriers including EPP300/EPP400. Its instructions require flat conditioning overnight or for at least eight hours at 0°F (about −18°C) or colder, and expressly prohibit using a blast chiller or blast freezer. The conditioned plate sits above prechilled food on the upper rails and can move downward as food is removed. CP2632 is a separate GN 1/2 accessory. Camchiller instructions.

That requirement creates a real back-of-house freezer load. The next route cannot depend on a just-returned warm plate that has not completed conditioning. Determine the needed rotation from dispatch times, returns, cleaning and flat freezer space. The CP3253 also adds 3.9 kg and occupies room otherwise available for food. Compatible divider accessories can reduce unused space within the carrier. Cambro temperature-maintenance accessories.

Starting food condition, density, fill, openings, ambient and preconditioning all affect performance. A general four-hour marketing statement is not a validated sushi route. A single closed transfer and a multi-stop route repeatedly exposing the same load deserve different assessments; separate closed carriers may protect stock for later stops. Cambro performance factors.

Powered carts have connected and disconnected periods

A powered cold cart is useful at a commissary dispatch station or indoor event where food remains accessible over time. Cambro's Pro Cart Ultra uses solid-state cold modules with independently selected compartment configurations. The PCU1600 table accommodates sixteen four-inch-deep GN 1/1 pans across the whole cart. Rail spacing and pan depth govern that arrangement; a rail's mechanical load rating is not a warm-food processing rating. Pro Cart Ultra Rev. C manual.

The cold module requires six inches of rear airspace, best-performance fresh air at 82°F or below and a maximum 90°F ambient. It is indoor, dry-use equipment for prechilled food. Establish the required cold condition before loading rather than rely on the shortest generic preconditioning suggestion.

Movement instructions require shutdown and unplugging. The cart therefore provides active cold holding while connected and passive protection during the move; no battery-refrigerated journey is established by the name “powered cart.” Receiving power determines whether active holding resumes at the destination. A lighter passive carrier may be a better choice where hand delivery, vehicle space or stairs dominate.

Refrigerated vehicles and the loading pattern

Thermo King's V-520 instructions call for precooled cargo, body preconditioning and the specified defrost sequence before loading. The unit maintains the intended incoming condition; it is not a substitute for missing production cooling. The procedure includes recording load temperature, minimizing open-door time and switching the unit off before opening doors to reduce frost and heat gain. Follow that selected system's procedure. V-520 operator manual, March 2026.

Cargo arrangement must preserve the evaporator inlet/outlet and circulation above, around and between the load. The manual's illustrated arrangement leaves at least four inches from the bulkhead and walls. A tightly filled vehicle can obstruct the air route even when a return-air display looks reassuring. Return air during the journey and actual cargo temperature at loading or receipt are different observations.

Electric standby is specifically documented for V-520 models 20 and 50. It allows operation with the engine off using the specified stationary electrical connection. Include it explicitly where the delivery operation needs it; do not assume every vehicle configuration has that capability.

Fish-aging cabinets and the occupied load

High-humidity primary storage aims to limit unwanted moisture loss. Intentional aging pursues selected changes in texture and flavor under a defined preparation and holding method. Temperature, humidity, air movement, contact and loading all matter.

A whole fish hanging from a rail consumes usable height and separation around the belly and sides. Fillets consume shelf area and require appropriate separation and drip management. A cabinet's maximum mass rating does not establish its usable fish capacity.

The current U.S. DRYAGER UX1500 PRO S provides a concrete commercial example: 15.3 ft³ net volume, 32–86°F adjustment, 40–90% RH control, 115 V/60 Hz with 5-15P, and no water or drain connection. The supplied arrangement includes full shelves, a double hanger and hooks. Its sheet requires two inches between food and the walls/door; the manual identifies P14 for whole fish and P15 for fillets. Those controls and fittings make a defined fish program possible, but the load arrangement still determines usable capacity. DRYAGER U.S. UX1500 PRO S, use-and-care manual.

The U.S. sheet gives a 50–86°F ambient installation range; confirm the approved range for the ordered configuration before placing it in a warmer room. Precondition the cabinet and assess humidity under the intended food load; empty-cabinet behavior does not describe an occupied aging program. Removable shelves, hanger and tray support cleaning. The documented UVC arrangement treats circulating air without directly exposing the food to UV. That feature is not validation of every product surface or aging recipe.

What fish-aging research actually adds

Minami and colleagues' restaurant-supplied samples included greater amberjack, oval squid, marlin and white trevally, prepared with species-specific wrapping, changes of paper/film and, in some cases, salting or trimming. Free amino acids increased while IMP, firmness, moisture and expressible drip generally decreased. Aging did not simply increase every compound associated with desirable taste. Nor was this a test of bare fish left in one humidity-controlled cabinet. Minami et al., 2020.

The useful purchasing conclusion is specificity. The species, source history, preparation and intended service endpoint should be stated before the cabinet program is chosen. Different culinary methods need different loading, protection, cleaning and monitoring arrangements.

A separate study of 1.5–2 kg gutted farmed rainbow trout used approximately 3°C and 78% RH, followed samples through 14 days and favored 10 days under its conditions. The served trout was cooked to 75–85°C core, and botulinum toxin was not quantified. It is evidence about that studied product and endpoint, not validation of the same duration for raw sushi trout. Panebianco et al., 2024, author record and study.

Buy the controlled environment and accessories for the actual program. Include batch identity, occupied hanging/shelf geometry, process measurement, cleaning access and somewhere suitable to relocate stock. A programmed cabinet supplies controllable machinery; the accepted product-specific procedure supplies its culinary and safety application.

Superchilling: create the state, then maintain it

Superchilling deliberately freezes part of the product's water while leaving much of the product unfrozen. It differs from supercooling, where liquid remains unfrozen below its equilibrium freezing point. Fish composition changes freezing onset and the relationship between temperature and ice fraction; remaining liquid becomes more concentrated as ice forms.

A detailed salmon experiment makes the machinery requirement clear. Kaale, Johansen and Rustad used 0.9–1 kg Atlantic salmon fillets, vacuum-packed and held at 4°C for 24 hours. An impingement freezer at −30°C and a reported surface heat-transfer coefficient of 227 W/m²·K processed them for 2.1 minutes to target 20% ice content. Subsequent storage used a controlled box at −1.7°C with separate air, fish-surface and fish-center Pt100 sensing. Full 2018 salmon study.

Those are experimental conditions, not a restaurant recipe. A refrigerator adjustable to −1.7°C has not reproduced the impingement stage, limited ice fraction or product history. Related salmon research found different initial crystal structures under faster and slower processing, followed by changes during storage. Initial crystal size alone does not describe every later quality outcome. Kaale et al., 2013.

A credible purchase therefore needs two demonstrated capabilities: creation of the intended partial-frozen state for the actual species, portion and package, and subsequent holding that maintains it through loading and use. Surface and center measurements answer different questions. A qualified supplier may provide that product state, leaving the restaurant responsible for its appropriate maintenance rather than its creation.

Refrigerated shellstock and wet holding

Unshucked live molluscan shellstock in refrigeration or an appropriate drained-ice arrangement is different from an edible wet-holding system. California provides a specified 45°F-or-below shellstock holding exception, with separate receipt, harvest-date and immediate-refrigeration provisions. Source identity and protection from contamination remain part of the arrangement. California §§113996, 114002, 114037 and 114039.3.

For molluscan shellfish offered for consumption from a life-support system, California §114039.5 establishes its HACCP and operating conditions, including preserving source identity and preventing water used with non-molluscan fish from flowing into the molluscan tank. The FDA model separately treats an edible molluscan life-support display as a variance activity. A system marketed for lobster is not automatically an appropriate oyster or clam installation. California edible-system provisions, FDA 2026 §3-502.11.

Keep the lot arrangement physically traceable. California's cited shellstock-record period is 90 calendar days from harvest under its specified recordkeeping conditions; substituting another jurisdiction's date basis changes the requirement.

Product, air and buffered measurements

A suitable contact probe measures the selected point in food at receiving, process completion or release. Cabinet air describes an environment through openings, recovery and defrost. A buffered sensor deliberately slows response through added thermal mass; it may serve a storage-monitoring objective, but it does not become the thermal center of a tuna loin or the required air history of a process.

This distinction runs through the equipment selection:

• Cooked-food cooling requires the applicable food-temperature history, including relevant intermediate checkpoints.
• The FDA model freezing alternatives use their ambient basis and specified solid-frozen conditions.
• Ultra-low storage needs sensing that works in that actual range.
• Superchilling requires sufficiently informative measurements of the intended product state.
• Retail and transport measurements must identify whether they describe air, a surrogate or the food.

An infrared surface survey or a controller display cannot establish every product's core condition. Equally, a brief air spike during a door opening does not describe the center temperature of every package. Preserve the measured quantity and location with the record.

A complete local recording arrangement for −60°C

Testo explicitly lists its 0572 7001 Pt100 probe with two-meter ribbon cable as compatible with 176 T2. The probe measures −85 to +150°C and has a 90 mm shaft and 3.6 mm tip. The manufacturer describes the flat cable for closed-door ultra-low freezer use. Put the logger outside the compartment and route the sensor through an approved port or accepted seal arrangement, preserving the freezer's seal and cable protection. Testo 0572 7001.

The compatible 0609 1773 air probe stops at −50°C, so it does not cover the same −60°C job. The recorder's broader input range cannot repair the probe mismatch. Testo 0609 1773.

The 176 T2 provides local USB/SD retrieval and retains data through battery replacement. Specify retrieval and archiving as part of the arrangement. Protect the components according to their own ratings: IP65 recorder and IP54 selected probe. The supplied logger certificate of conformity is not a completed calibration of every probe/logger pair. Request complete-channel calibration evidence at the actual working temperatures, including the −60°C region where relevant.

This buys a suitable local record. Unattended off-site notification is a separate capability.

Sampling, response and transmission

A fast logging interval does not make the sensor respond faster. MX1101 can save every second, but its specified temperature response is approximately 7½ minutes to 90% of a change in air moving at 1 m/s. The stored sequence can therefore contain many readings during the sensor's own response. HOBO response and interval specifications.

Do not rank that defined moving-air response directly against a handheld's differently stated “one-second” claim or a probe's reaction time without a common test medium and response fraction. Select response for the question: brief process transitions, routine storage trends and a deliberately buffered surrogate do different work.

Placement matters just as much. Compare relevant product and air positions under the intended loading and access pattern before fixing a permanent sensor. A convenient cold-outlet location may miss poorly served stock. A rail's top pans and enclosed reserve should not be represented by one unlabeled cabinet reading.

Records can survive while alerts fail

RFL100 stores one sample per channel per minute, transmits every four minutes and holds 30 days, or 43,200 samples per channel, in its local ring buffer. It can continue recording during a communications interruption and backfill later. The oldest readings are eventually overwritten. If the gateway, network or server is unavailable, preserved local history is not a live temperature alert reaching a person. RFL100 storage and backfill.

A lighter remote arrangement can suit ordinary-temperature monitoring: compatible HOBO logger, MXGTW1 gateway and the relevant per-logger LI-COR Cloud plan. Nearby Bluetooth download alone is not remote notification. Current gateway specifications distinguish one-minute transfer, a 10–20-minute dashboard refresh, a 15-minute missing-gateway alarm and a 30-minute missing-logger alarm. Those are separate functions and delays, not one “real-time” promise. MX Gateway, cloud plans.

Choose the alert path for the actual person who must respond. Cover gateway/network/server power where needed and test loss-of-communications behavior separately from a temperature excursion. A battery in the logger does not power the rest of the path.

Calibration and useful alarm response

Calibration traceability requires a documented chain with uncertainty; traceability alone does not establish fitness for the intended measurement. Select evidence identifying the channel, points, uncertainty and working range. An ice-point check is useful near chilled-food conditions but does not demonstrate −60°C performance. NIST traceability policy.

Built-in equipment alarms may be designed around machinery behavior rather than the restaurant's desired intervention. The cited Hoshizaki Steelheart refrigerator manual specifies a machinery alarm that waits for more than two hours above 57°F. That is a controller specification, not a seafood limit. Defrost behavior, threshold and delay must be understood before the stock is entrusted to that alarm alone. Steelheart upright manual.

Identify the recipient, escalation, missing-device response and suitable relocation destination. Acknowledging a message confirms receipt; investigation and a recorded response close the event. An alarm by itself neither clears nor condemns every item in the cabinet.

Closed, open, ventilated and serviceable

Complementary dimensions expose different constraints:

• Hoshizaki UR48B-D4 extends from 31 inches closed depth to 52 inches with drawers open.
• Turbo Air TGM-23's drawing shows 56⅛ inches with the door open.
• DRYAGER's U.S. integration drawing shows 55.12 inches overall open-door depth; its 29.53-inch open-door width is a different dimension.
• Hoshizaki's F-330BAK sheet identifies 24 inches above for auger removal in addition to its operating airflow arrangement.

Use the selected model's drawing to distinguish normal access, ventilation and component removal. Then check the delivery and replacement route: crate dimensions, turns, thresholds, stairs, ramps, floor loading and handling method. TOM's specification distinguishes 635 lb net from 822 lb crated weight. The load moving through the building is not necessarily the final installed weight. TGM drawing, TOM sheet, DRYAGER U.S. documents, F-330BAK sheet.

Heat, utilities and field scope

Self-contained equipment rejects condenser heat where it operates. Assess the air entering that condenser and the room's ability to handle the load, not only the building's nominal thermostat. Remote equipment changes the location of heat rejection while adding its own line, control, drainage and service requirements.

Exact electrical region and configuration matter. Voltage, frequency, phase, circuit and plug are separate entries. A Japanese 100 V example is not a U.S. 115 V submittal. A walk-in refrigeration connection does not necessarily supply its door-panel electrical functions. A roll-in process cabinet may include maintenance refrigeration but require an active remote plant by others.

Water and waste also follow the equipment's work. Fish-file meltwater contains food residue; refrigeration condensate is another stream; ice equipment needs its specified potable supply and drainage; live holding adds circulation, filtration and biological startup. Identify each responsibility on the quote rather than describe all of it as “plumbing included.”

Certification, energy and refrigerant generation

Confirm the exact model, application, region and certifier scope. A certification mark is evidence for its listed application, not a universal ranking of equipment quality.

ENERGY STAR's Version 5 eligibility excludes several relevant classes, including preparation tables, walk-ins, blast chillers/freezers, open displays and remote-condensing equipment. An open display should not be judged against an eligible closed-door merchandiser simply by the presence of a badge. Compare measured energy within the same task and test basis. Nameplate amperage serves electrical selection; it is not daily kWh. ENERGY STAR commercial refrigeration criteria.

The matched flaker figures in Section 5 illustrate a useful comparison: energy per 100 lb at the same air/water conditions. A blast-freezing cycle, ordinary frozen holding and −60°C tuna storage perform different work and need their own comparison basis.

Federal refrigerant transitions also differ by equipment sector and transaction. EPA's August 2026 table distinguishes product manufacture/import restrictions from new-system installation restrictions and later sale/distribution provisions. It identifies GWP 150 limits for stand-alone retail refrigeration manufacture/import from January 2025 and for the specified self-contained continuous ice category up to 1,200 lb/day from January 2026. Remote condensing systems have their own dates, charge conditions and limits. EPA sector table.

Identify the actual sector, refrigerant, charge, manufacture/import or installation timing and local requirements on a new order. Existing equipment can continue through its useful life under the federal framework, while states may impose additional restrictions. A refrigerant with a different flammability classification is not an interchangeable retrofit for equipment never designed for it. EPA HFC guidance.

Commission the application

Commissioning should establish the intended job with the actual arrangement:

1. Match delivered model, controls and accessories to the order. Check connections, leveling, seals, air paths, drainage and access.
2. Follow that model's stabilization and preconditioning procedure. A merchandiser startup, powered-cart pull-down and vehicle pre-trip are different operations.
3. Evaluate representative food and environmental positions with the intended pans, racks and access pattern. For process equipment, use the applicable product history; for a rail, distinguish top pans from lower reserve; for a fish file, include ice and drainage.
4. Observe the relevant replenishment, openings and defrost behavior with enough context to interpret changes.
5. Exercise records, alerts and failure response safely, without risking stored food. Verify that the intended recipient receives the message and has a workable response destination.

Acceptance criteria must match the product program and applicable requirements. Retain the delivered configuration and instrument/calibration identities with the acceptance record. An empty-box temperature reading cannot replace this application check.

Cleaning and service consume capacity

Removable pans and shelves, reachable drains, gasket access and a serviceable condenser make upkeep achievable. Match cleaning methods to stainless, coated metal, aluminum, seals and electrical assemblies. Stainless construction is not universal chemical resistance; an automatic condenser brush may remove dust while grease still requires attention. Turbo Air's manuals make that distinction explicit. TOM maintenance instructions.

Provide a suitable destination for stock displaced by cleaning, manual defrost or failure. That may be another cabinet or another credible available arrangement; the need follows the actual load and interruption. It is a capacity requirement, not a universal instruction to duplicate every machine.

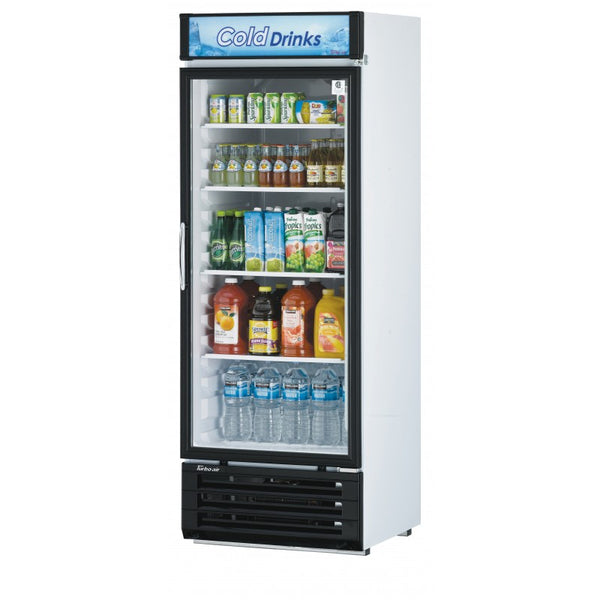

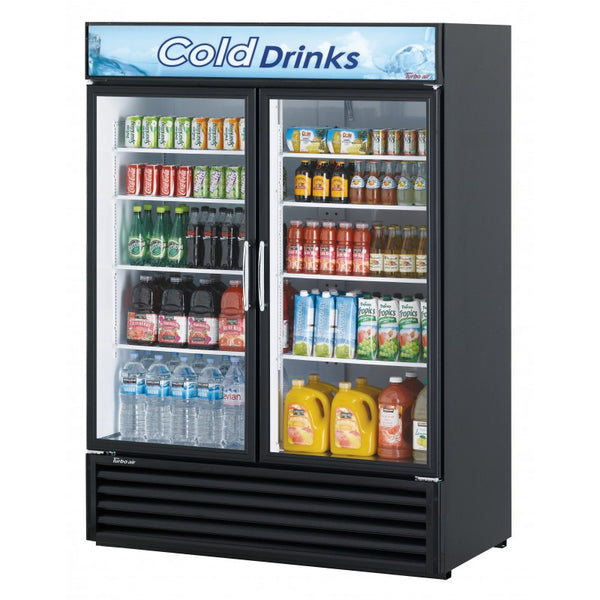

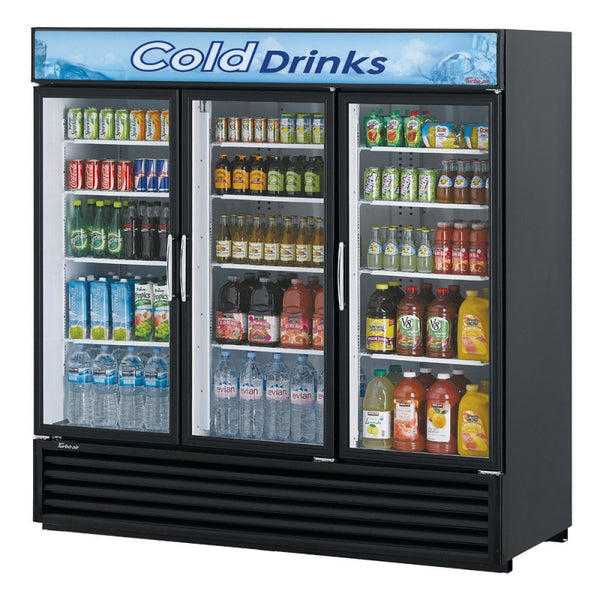

Compare warranty scope as carefully as duration. Current TGM-23 documents list five-year parts/labor and seven-year compressor coverage; TOM-60 lists two-year parts/labor and three additional compressor years. The TGM manual excludes product spoilage. Compressor-part coverage is not equivalent to labor, installed-system work or inventory protection. TGM terms, TOM terms.

The broader maintenance and replacement-parts resource develops ongoing ownership. The refrigeration order should already identify authorized support, parts access, service removal and the stock-relocation arrangement.
