Sushi Robots & Machines

Rice structure must survive both production and service

Portion weight does not describe the whole rice base. Neither does a neat outline. The product must release from the forming surface, survive its intended handling and retain the eating quality the chef wants.

A directly relevant Japanese study makes the limitation of simple appearance measures clear. Researchers compared rice bases from three purchased chef-made and three robot-made tuna-sushi types. Overall density and CT-derived void fraction did not differ significantly between the groups, but compression behavior did. The robot samples showed elastic, plastic and fracture regions; the chef samples separated progressively between grains while retaining their overall clump shape. This was a 2024 conference abstract examining purchased products, not a controlled ranking of current machines. Its useful finding is that similar bulk measures can conceal different mechanical behavior. Japan Society of Cookery Science study.

Rice adhesion introduces another variable. Primary research on cooked rice links stickiness to material leached at the grain surface, including the amount and structure of amylopectin. Separate work found that accounting for sample contact area and compression conditions improved agreement between instrumental and sensory stickiness. Neither paper supplies a commercial sushi-machine setting. Both support evaluating the actual rice under comparable conditions rather than treating a display number or raw force reading as a universal texture scale. Li and colleagues, 2017, Yang and colleagues, 2018.

In practice, inspect release, structural integrity and bite separately. A sheet that peels cleanly from the machine may still tear during transfer. A base that tolerates rough collection may be firmer than the chef intends. Increasing a forming setting to compensate for damage introduced later can preserve the production error and change the food.

Locate the damage before changing the machine. Compare the product immediately after forming, after its normal transfer, and after cutting or final placement. If the first sample is right and the next is wrong, investigate that handoff before tightening the former.

Specify the section, coverage and closure

For maki, the working specification should identify:

• Rice mass and sheet width, length and thickness.
• Nori orientation, coverage and the seam margin required by the construction.
• Filling amount, distribution and maximum filled section.
• Finished roll length and the required piece pattern.
• External toppings present before cutting and the final tray or plate.

A wider sheet, a thicker rice layer and a larger filling load are different changes. A machine may accommodate one through a setting, another through a component change and a third only within a different forming arrangement. The menu specification should reveal those distinctions before an order is placed.

For nigiri, record mass together with base length, width, height and the intended topping contact. For onigiri or musubi, include the filling recess or enclosed filling, topping footprint, nori and final package. For gunkan and inari, the strip or pouch physically participates in production; it belongs in the equipment specification.

A stored recipe is useful only when it remains associated with the correct input and installed parts. Record the prepared-rice condition, forming components and successful settings together. The rice entering the hopper must be consistent enough for that record to mean something; the detailed cooking, seasoning and batch-control work belongs upstream.

Accept the product after the next operation

A successful forming demonstration should continue through the cutter, transfer unit or package. The largest roll a former can make may exceed the next machine's range. A rice base may fit a tray cavity yet move when topped. A retail wrapper may accept the dimensions but fail to deliver the intended opening and eating experience with a different film.

Bring the difficult product: the bulky filling, the uneven inclusion, the soft center or the externally topped roll. Evaluate it at the operation it challenges. For retail and delivery, assess the intended service condition within the operation's established food controls. A machinery demonstration does not establish shelf life.

Powered sheeting with a manual belt wrapper

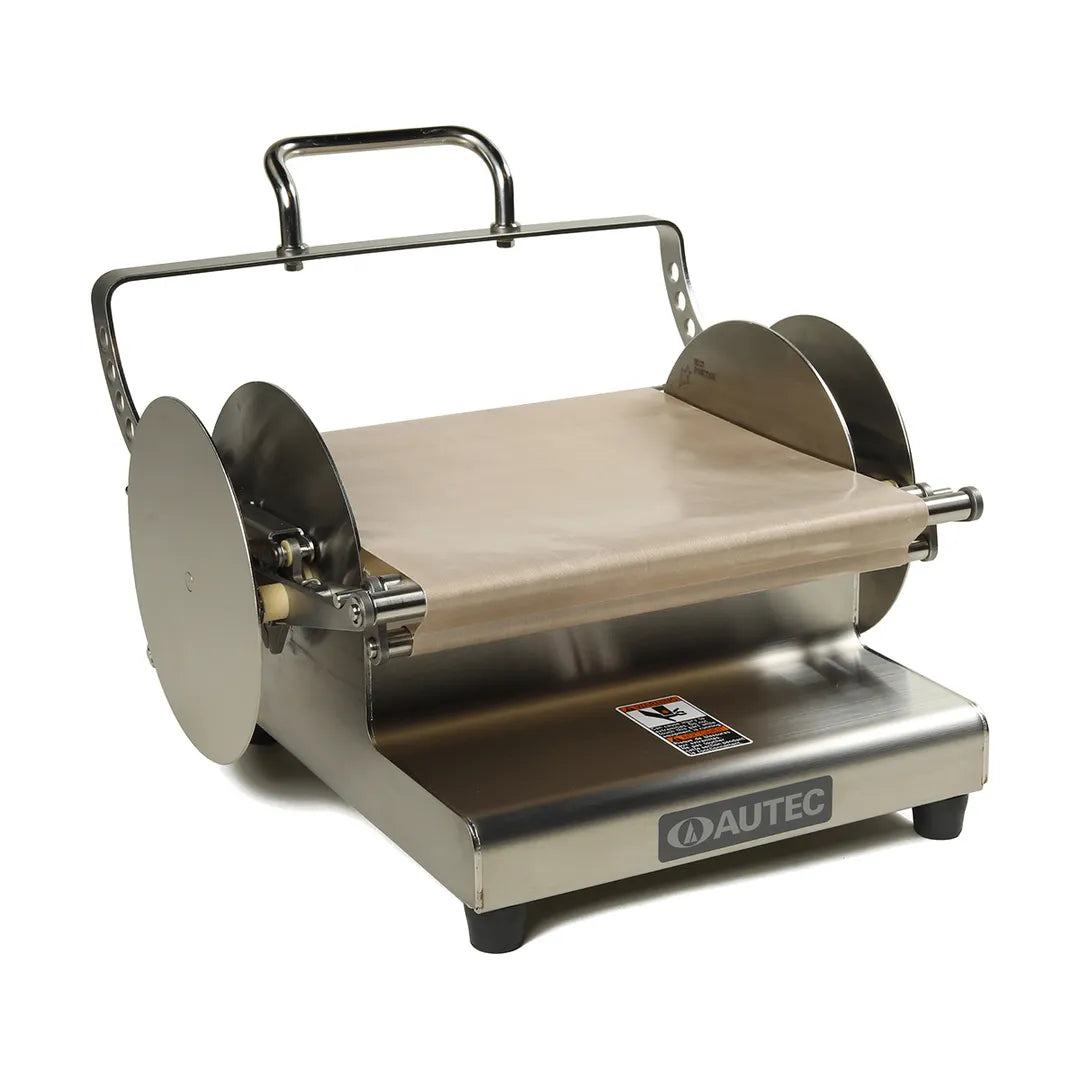

AUTEC's ASA190A is an unpowered wrapping aid. Its handle operates side arms and two push shafts associated with the wrapping belt. The operator positions the prepared rice, nori and fillings, then supplies the movement that brings the belt around the product. The documented sequence uses a full pull, a hold of about three seconds and a gradual return before removal. That hold is one part of closure, not a finished-roll production time. ASA190A operating manual.

The construction matters. The manual distinguishes regular and inside-out patterns rather than treating every assembly as the same load. In its regular pattern B, 3–10 mm of nori sits under the edge of a shorter rice sheet, and the remaining overlap is closed by hand after release. Inside-out pattern B starts with a hand pre-roll of the front rice/nori over the filling before the handle movement. The other documented patterns use the belt closure without that particular pre-roll or final-overlap sequence. Regular pattern B, inside-out pattern B.

This is the useful distinction between a controlled wrapping motion and an automated recipe. Filling distribution, initial alignment and seam inspection remain with the operator. A bulky inclusion that needs a hand start does not become easier merely because the rice sheet repeats accurately.

AUTEC's brochure gives an approximate 20–60 mm roll-diameter range and up to 205 mm roll length. Those limits still depend on a compatible rice/nori assembly. The belt's width is not permission to exceed the supported product. ASA190A manufacturer brochure.

The ASA190A manual wrapper therefore belongs in a legitimate mixed cell: powered sheeting, manually powered belt closure and, where useful, powered cutting. Its value is a repeatable aid that accommodates different constructions, with the remaining hand work visible. Operate it on stable support with the prescribed hand placement and controlled handle movement; extra downward force is not a remedy for an unsuitable load.

Combined sheeting and powered closure

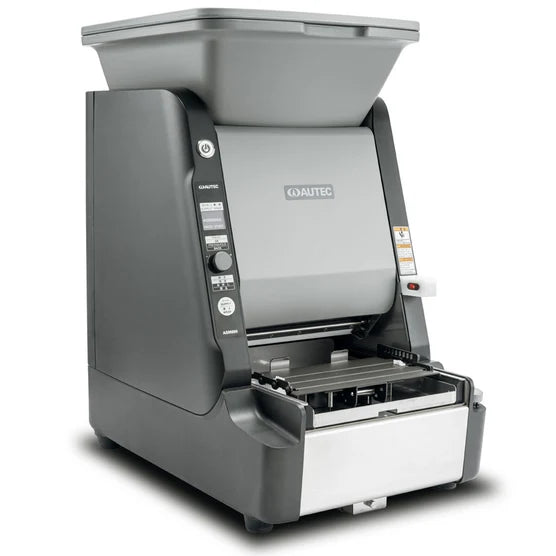

In the ASM890A's documented regular-roll sequence, staff position nori, request rice supply, add fillings, initiate wrapping and remove the roll. A powered lifter operates the selected wrapping unit. The machine identifies the fitted unit and can retain three programs for it; sheet-only operation is also available. The manual lists seven standard/wide unit arrangements. ASM890A U.S. operating manual.

Integration removes the separate sheet transfer and alignment at another wrapper. It also places the filling task between the machine's powered actions. The cook still determines whether the ingredients occupy the intended section and whether the finished seam is acceptable.

The ASM890A combined sheeter/wrapper should be quoted with the units the menu actually needs. A saved program restores settings; it cannot change the physical forming component. Group products by the hardware they share before judging the convenience of a recipe menu.

Forming geometry and collection

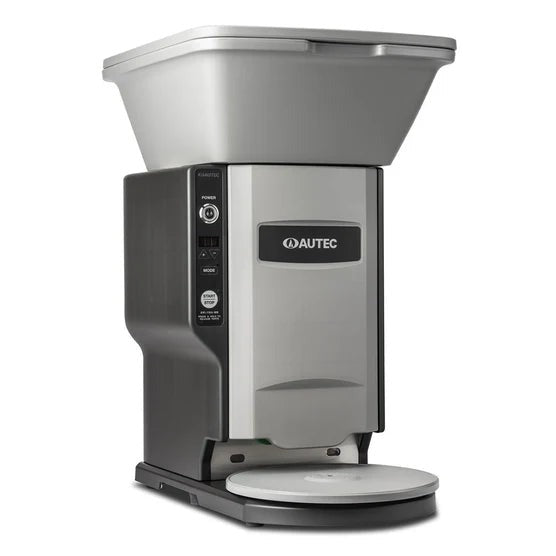

AUTEC's ASM440A uses configurable forming rollers and a collection turntable. Its U.S. description includes size/density/compression adjustment, single or multiple dispensing and clockwise or counterclockwise rotation. It also states compatibility with the preceding ASM410A's rollers. That compatibility is useful to an owner with existing components, but it does not make the two complete machines interchangeable. ASM440A manufacturer description.

Specify the actual roller pair and any required matching components with the intended rice base. Then examine collection. Rotation direction and the way portions are presented affect reach, topping work and the rhythm of clearing the table. These are productive controls, not cosmetic conveniences.

The ERS ASM440A produces the rice base. Whether that base goes directly into the cook's topping sequence, onto a plate or into a tray remains a separate operating decision.

Suzumo's comb-tooth method provides another forming approach. The manufacturer describes a comb-style shutter intended to separate portions without cutting through individual rice grains; its Japanese KTA brochure also describes shaping with a lower mold. Suzumo forming-method description, Japanese KTA mechanism brochure.

The North American SSN-KTA-AC configuration lists six shapes, 16/18/20/22 g portion settings and seven hardness levels. Its highest 4,800-base-per-hour setting applies at 18 g or less, with lower speed for heavier portions. North American SSN-KTA-AC.

The mechanism explains how rice is divided and shaped. It does not settle the chef's sensory judgment. Evaluate the base at the selected geometry and portion, through pickup and topping, rather than accepting “soft” as a measured cross-brand result.

A smaller architecture is represented by the SSG-SCS-U: auger-fed rice with vertical forming and a selected internal adjuster. The nigiri adjustment covers approximately 16–25 g; another adjuster supports larger 50–100 g rice portions. The base offer includes one chosen adjuster. Capability across two product families therefore does not mean both configurations arrive in the box. SSG-SCS-U.

Transfer changes the destination

Suzumo's SSN-KTA-AC-L with TRS-JLX-R-AC arranges rice bases in supported trays at a stated transfer speed of 3,800 portions/hour. A KHS adapter for one-way containers and half-tray use is optional. That rating concerns placement, not simply discharge from a bare former. Exact North American transfer combination.

A transfer module can remove repeated individual pickups and deliver an organized presentation for topping. It replaces that work with tray supply, tray removal and the need to use the supported pattern. For repeated retail layouts, that can be the more valuable intervention. For short mixed orders, hand collection may fit the finishing sequence better.

Evaluate the container that will actually be used. Outside dimensions alone do not establish feeding, registration or removal. Nor should a tray pattern be accepted simply because the bases fit: the topping hand needs access, and the completed product needs enough separation to retain its presentation.

Support, registration and the cutting set

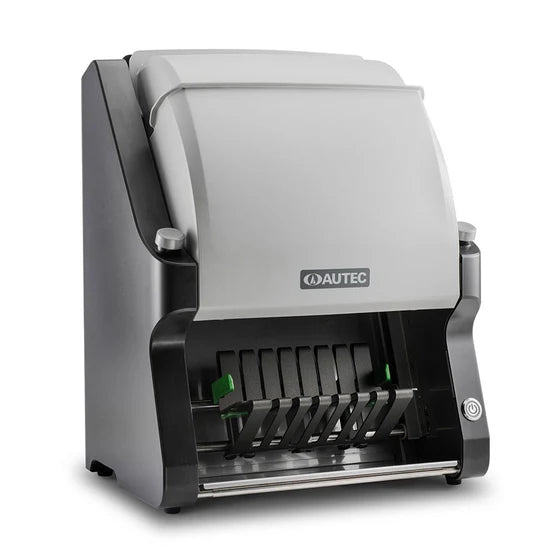

In the ASM260A, the loaded base rises through a fixed cutting unit. The base and frame must have matching cut counts. The manual requires a single operator and simultaneous two-hand start; unloading follows the prescribed stopped position. It excludes hard or frozen fillings. Its six/eight-cut arrangements accept 180–190 mm rolls, while the ten-cut configuration accepts 200–210 mm. ASM260A operating manual.

The current manufacturer offering also advertises twelve-cut capability. Order the complete matched base/frame arrangement and current instructions for the intended option. The existence of an advertised cut count does not identify what is included in the quoted package. Current ASM260A options.

End registration deserves attention. The documented eight-cut interior pitch is 22.5 mm. A 185 mm-class roll is not automatically divided into eight identical 185/8 mm segments; placement and the overall length determine the end pieces. Specify acceptable ends with the serving pattern, rather than discovering at production that the attractive middle pieces leave unusable outer portions. ASM260A cutting geometry.

The ERS ASM260A cutter should therefore be considered with the roll and cutting kit together. A second worker can perform separate upstream or finishing work, but should not load or collect from the cutter while another person triggers it.

Onigiri and musubi: buy the complete forming package

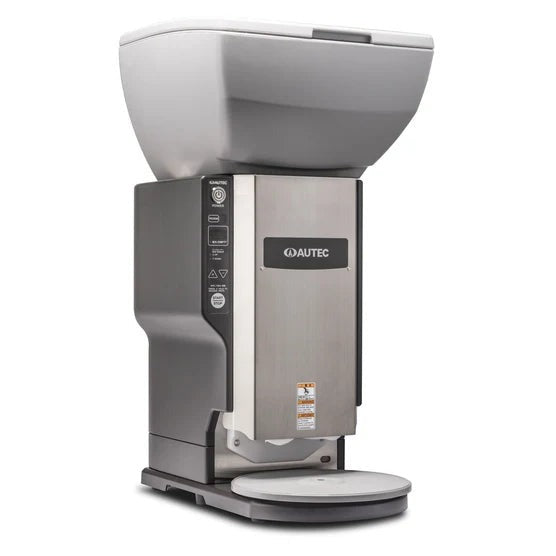

The ASM575A loosens and feeds rice through its feed arrangement, passes it to forming rollers and presents the resulting portions on a turntable. A shape change can require more than a roller pair: the documented configuration includes feed-shaft spacing, matching panels and spacers, correctly oriented forming rollers and the corresponding program. Its 01–50 amount control is a setting scale, not grams. ASM575A operating manual.

This matters commercially because the rice shape determines the work that follows. A filling recess has to suit the intended quantity and placement. A musubi base has to support the prepared topping and receive the nori band. A rice-sandwich form has to work with the finished filling and package. An attractive empty shape is an incomplete acceptance sample.

AUTEC's application sequence keeps the remaining work explicit: the machine forms rice, after which filling or seasoning and nori are added as appropriate; a musubi topping is placed on the rectangular base before banding. Manufacturer's onigiri and musubi applications.

For the ASM575A onigiri and musubi former, inventory the complete components for each menu family. Store matching pieces together with their setup identity. A machine described as having interchangeable molds is of little help if a later operator has to reconstruct which shaft arrangement, panel and spacer belong with the selected shape.

Filled enclosure and retail wrapping add further functions

Suzumo's Japanese ENF-MOA sequence shows rice placement and hole formation, ingredients added by hand, machine enclosure/forming, then discharge. Enclosed-filling production is specified for triangular forms. An optional ingredient-presence detector can check whether filling is present; it does not establish the correct filling weight or replace the person placing it. ENF-MOA process.

That is a different capability from dispensing a rice portion with an accessible recess. It also shows why enclosure should not be described casually as automatic ingredient filling.

Fujiseiki's GSE-1800 forming machine connected to the PS-1800 wrapper takes the production path into packaging. The Japanese manufacturer describes enclosed-filling onigiri production through the connected arrangement, which is also listed by Fujiseiki USA. The offered package still needs its filling method, product geometry, wrapping material and regional installation specified. Fujiseiki forming/wrapping combination, U.S. product page.

The useful purchase distinction is the delivered state of the food: formed rice, filled but open, enclosed, or wrapped for retail. Quote the state the operation needs.

Gunkan: base formation plus nori-band application

In the North American SSN-KTA-AC-L + SCG-JLX-AC arrangement, the formed rice moves to a unit that applies the nori band. The manufacturer lists a 300-piece nori hopper and selectable 16/18/20/22 g rice portions. The output is a banded base awaiting its topping, rather than a finished assortment of gunkan. Current North American combination.

Specify the whole combination, including the base-machine variant. Suzumo's family compatibility table identifies the gunkan option for SSN-KTA/-AC; a shared family name is not proof that every variant takes the attachment. Manufacturer compatibility table.

The nori strip has to feed, wrap and produce the required wall around the selected base. Changing its dimensions or material behavior can affect production even when the topping recipe is unchanged. Demonstrate the actual strip and topping portion together, including how staff receive and fill the banded bases.

Continuous maki: follow the supplied modules

Suzumo's SVR-SAE-S/W sequence includes rice supply, continuous or discrete sheet formation, a separate filling conveyor, progressive closure, forming to the selected section and rotary cutting to length. The filling conveyor is offered in several lengths, allowing the filling position to be configured rather than squeezed around a countertop appliance. The global July 2026 brochure distinguishes S at 2,000 and W at 4,000 roll lengths/hour, both at 180 mm. SVR-SAE-W/S brochure.

The North American W brochure identifies the rice lifter, nori/film supply, rice-supply unit, independent topping conveyor, rolling section, forming unit and cutter conveyor. This is the level at which the quotation should describe the line. North American SVR-SAE-W brochure.

A filling conveyor is working access for ingredients. Unless the quote includes and proves the relevant depositor, the filling task remains staffed. Its length affects reach, ingredient presentation and how several manual placements can be organized. The line must also give an occupied output somewhere to go.

Length cutting is another important boundary. A rotary cutter releasing a 180 mm roll has not necessarily produced six or eight serving pieces. The later portion cutter, collector and packaging stages must be included where the intended product requires them.

Fujiseiki's TRM/TRMS adds automatic rice weighing/correction and a format-dependent capacity distinction: its U.S. page lists 4,500 rolls/hour in continuous operation and 3,000/hour with cut-nori supply. Measurement and correction address a different task from recalling a fixed recipe setting, while the nori format changes the rate basis. Fujiseiki TRM/TRMS.

The implication is direct: specify the desired retail construction before choosing the line rating. The fastest configuration may not be the configuration that makes the product being sold.

Industrial rice-base forming and tray alignment

Suzumo's STF-MFA combines dosing, shaping and alignment into trays. Its published 50-tray magazine supports named tray families; specified solid GRT trays use an optional manual-feed arrangement. The machine's output is arranged rice bases, with topping and consumer packaging still to be supplied. STF-MFA.

The tray is an operating component. Its feeding, registration, pattern and removal must work as a set. A replacement with a similar footprint may alter that behavior, and a change to a manually supplied tray changes the staffing assumption. Packaging procurement and machinery procurement should therefore meet before either is finalized.

The same principle applies downstream. An efficient alignment stage is useful only if the topping and enclosing work can receive its pattern and cadence without excessive waiting product or rehandling.

Retail nori-film wrapping

The PNR-SVC wraps compatible prepared half medium/large rolls with a specified nori-film format. Its brochure identifies automatic film feeding and wrapping, a product-setting table, film supply and optional labeling connections. Product/film fit requires advance confirmation. PNR-SVC product record, July 2026 wrapping brochure.

This is a packaging operation on a prepared product. Its scope should state who supplies that product, whether transfer is included, how film is replenished and where wrapped items are collected. Labeling should be itemized rather than assumed from an illustration of an optional connection.

The product differs from fresh temaki served immediately across a counter. The wrapping format, opening sequence and intended service condition are part of its acceptance. A film wrapper neither establishes shelf life nor replaces the food-control and distribution work of a grocery or grab-and-go operation.

Compare complete arrangements

In a separate sheeter/manual-wrapper cell, staff collect and align the sheet, distribute fillings, perform the required closure, inspect the roll, transfer it for cutting and finish the pieces. Separating those positions can allow different people to work concurrently, but adds a handoff and another product-contact area.

In a combined-maker cell, the operator loads between powered sheet supply and wrapping, then removes the roll for cutting and finishing. The separate sheet handoff disappears; ingredient assembly and the roll-to-cutter handoff remain. If one person runs the whole cell, each task still competes for that person's attention. If positions are staffed separately, the receiving space and stop/start rhythm have to work without mutual reaching.

Nigiri transfer makes another exchange: fewer individual base placements in return for compatible tray supply, tray removal and a defined presentation pattern. Its value depends on how much placement work the final format requires. A lower stated transfer maximum can still accompany a better staffed arrangement than hand collection from a faster former.

Measure accepted output per elapsed production hour when testing required capacity. Measure staff time over the whole job when comparing labor. A second person working concurrently contributes staff time even when the elapsed clock does not move faster. Neither measure alone proves a reduction in payroll.

Rice supply can become the recurring task

The North American SSG-SCS-U specification pairs up to 1,800 nigiri bases/hour with 20 g portions and lists a 6.5 kg hopper. Calculated from those published inputs:

• 1,800 × 20 g requires 36 kg of rice per hour at uninterrupted rated output.
• 6,500 g represents 325 nominal portions.
• 325 ÷ 1,800 × 60 gives about 10.8 minutes of nominal hopper content at that rate. SSG-SCS-U specification.

This is supply arithmetic, not an observed refill interval or food-holding allowance. It excludes residual rice, practical working fill, portion variation, pauses and replenishment time. The point is the prepared-rice delivery task behind a compact former's rating. A slower real cell will draw rice differently; a larger hopper should not be used to conceal an unsuitable holding or replenishment process.

Time the change that actually matters

A recipe recall, a wrapping-unit exchange, a coordinated shape-kit change and a required cleaning event are different interruptions. Record the last accepted old product, the work performed and the point at which repeatable accepted new output returns. Include setup samples and correction.

Short runs can favor simpler arrangements when necessary changes consume much of the available period. They can also favor integration when repeated sheet alignment and hand closure are the larger burden. The answer is in the work, not a universal rolls-per-day threshold.

For broader demand and station sizing, continue to sushi production workflow and capacity. AYCE and high-volume service and express production can impose very different product-change patterns even when their peak order counts look similar.

Include support, access and opening movements

Equipment weight, rice and supported accessories all load the table or floor. The support provider needs the installed arrangement, not just an empty-machine weight. Delivery access and placement also need attention before a large unit reaches the kitchen.

Industrial machines make the difference between closed and open dimensions especially visible. Suzumo's global PNR-SVC record lists 2,795 × 1,175 × 1,510–1,550 mm in its standard state and 2,940 × 1,460 × 1,790 mm with the cover open. It also specifies compressed air at 0.6 MPa and 185 L/min. Those are physical and utility requirements of that published configuration, not a complete local installation approval. PNR-SVC installation specification.

A power connection alone therefore does not make a line ready. Obtain the offered unit's voltage, frequency, phase, connection requirements, electrical load, air requirements and installed options. Have the responsible qualified parties establish the site provision. Regional model suffixes and issued drawings matter more than a family-level web specification.

Obtain the exact certification evidence

Electrical/product-safety listing, sanitation certification and local acceptance address different questions. Intertek, for example, distinguishes its ETL Listed and ETL Sanitation programs; the latter includes evaluation to relevant NSF/ANSI standards. A reference to an NSF standard is not automatically a statement that NSF itself certified the particular machine. Intertek ETL Listed, ETL Sanitation.

Ask for the offered model's data and certification labels, applicable listing documents and confirmation of the installed options. A brand logo or overseas brochure does not substitute for that package. Resolve acceptability with the responsible local authority before committing to an imported or unusual configuration. See equipment specifications and commercial requirements for the wider approval work.

Count the whole return to readiness

Component removal is only part of closing. The job also includes the prescribed shutdown or removal preparation, isolation, safe movement of parts to the cleaning area, compatible washing and sanitizing, drying and protection, inspection, reassembly and the applicable readiness checks.

AUTEC advertises two-minute assembly and five-minute disassembly for its current maki makers. Those are component-handling claims, not a complete wash–sanitize–dry–inspect allowance. ASM895A manufacturer page, ASM890A manufacturer page.

Observe where the parts go, whether the largest assembly can be handled properly, how clean components are protected and whether the required pieces are easy to identify. Travel to the sink, retrieving a misplaced spacer and restoring a matching cutter set are real staff work even when they are absent from a disassembly video.

Keep active staff time separate from elapsed readiness. Air-drying can occupy time and space without occupying a person continuously. A spare manufacturer-approved food-path set may change when production can resume, but the used set still requires its proper cleaning. It does not authorize a later cleaning interval.

Release oil, wear and food controls

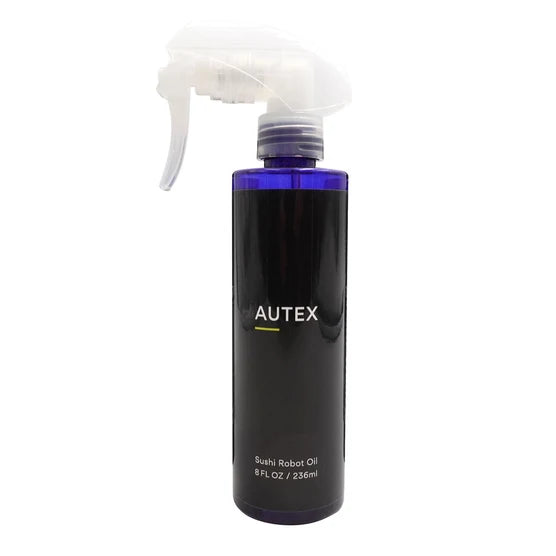

AUTEC identifies AUTEX as its designated sunflower-based anti-stick product for appropriate machine surfaces and accessories. It is a release product, not a cleaner or sanitizer, and it is not automatically interchangeable with the grease required at a mechanical joint. Apply the model's specified product only at its specified locations. AUTEC AUTEX description, ERS AUTEX with spray trigger.

Keep an inventory of the actual belts, forming components, guides, cutter assemblies and other prescribed replacement items. Identify compatible part numbers and inspect the relevant food-contact surfaces and coatings where present. A missing small component can stop a menu item as effectively as a failed motor. Budget from the operation's consumption and replacement history, rather than a universal bottle-life or wear allowance.

The rice in the hopper and the product waiting between stations remain within the operation's approved food controls. FDA's Food Code is a model for adoption, not automatically the law at every site. Los Angeles County's inspection guidance requires cleaning and sanitizing at applicable intervals and events; “we clean it at closing” is not a complete operating policy. FDA Food Code, LA County retail inspection guide.

Include the entire food path when planning changes. A rice-only feed path and a wrapper or cutter exposed to fish, sauces or sesame do not present identical cleaning tasks. A sanitizer wipe or automatic blade-alcohol feature does not establish an effective allergen changeover. FDA's surface research supports evaluating the full cleaning method and its conditions, not treating sanitizing alone as residue removal. FDA allergen-removal research.

Service must describe restoration, not just coverage

AUTEC and Suzumo North America publish one-year warranty terms with conditions. That term does not promise a local technician, a loaner or a particular return-to-production time. Establish who diagnoses the fault, who may work on the machine, where it goes if shipment is required, and who pays travel or freight. AUTEC FAQ, Suzumo North American FAQ.

Ask which complete compatible assemblies are available, how a replacement employee is trained and what the operation will produce during downtime. A manual fallback is useful only if the tools, menu and staffing can actually support it.

For older equipment, identify region, suffix and serial number. AUTEC's Japanese lifecycle notice treats ASM430 and ASM430-B differently and separately lists the domestic ASA190. That Japan-market schedule does not establish the status of the U.S. ASA190A merely because the root name resembles it. Obtain the support answer for the offered unit. AUTEC Japan lifecycle notice.

The continuing program belongs in sushi equipment maintenance, cleaning and replacement parts. The machinery purchase should arrive with enough documentation and training to make that program workable.

Separate the economic benefits

A machine may create value through three different results:

• Paid hours removed: an actual reduction in scheduled labor, overtime or another labor expense.
• Staff time released: time available for filling, finishing, customer service or other productive work without necessarily changing payroll.
• Additional accepted sales: real demand the operation can serve, valued after the associated food, packaging, labor and other variable costs.

Do not treat gross sales as contribution. Do not count the same released minutes once as eliminated payroll and again as the entire labor benefit behind extra sales. If the schedule is unchanged, faster production may still be valuable, but it is a capacity or work-allocation gain rather than an automatic wage saving.

A sensible purchase can automate one task and retain the rest. It can also be a different configuration or a decision to wait. The criterion is a demonstrated improvement the operation can use, with the required food intact. Whole-restaurant capital planning belongs with sushi equipment costs.

Used equipment must be complete enough to produce

Inspect the exact model, serial, region and labels; inventory the required food-path parts, guards, controls, forming components and cutting sets; and obtain the cost and availability of missing or worn items. Require a safe trial with the intended product and a successful return to readiness. AUTEC's own used-market warning identifies missing parts, cleaning history and machines built for other markets as consequential risks. Manufacturer used-purchase guidance.

Used does not automatically mean unwarranted. The ASM575A manual permits transfer of remaining original coverage under its conditions, while excluding specified wear and transit matters and addressing chargeable travel. Confirm the current terms for the offered machine rather than assuming either full new coverage or no coverage. ASM575A warranty terms.

A bargain that cannot make the required product is not the cheaper configuration. Compare the cost to make it complete, locally acceptable and supportable. Use supplier evaluation and quotation comparison to close that scope.

Run through the ordinary interruptions

Include replenishment, a normal pause and restart, a meaningful product change and a return to the first configuration. Observe enough repeated output to see whether the accepted result persists. A test intended to assess replenishment must not end just before the hopper or film supply needs attention.

Keep the machine-cycle observation separate from whole-cell elapsed time and job-level staff time. Include every person supplying and receiving the work. Record accepted items, reworked items and rejects distinctly: a corrected item may become saleable, but its correction still consumed labor and material.

Have the intended staff member perform the applicable setup, change and care sequence. A trainer's fluent demonstration is not the same as a successful handover to the operating team.

Make the quote match the demonstration

The final package should identify:

• Exact model, regional configuration, controller and supplied options.
• Every required forming, wrapping and matched cutting component.
• Approved product/container/film arrangements demonstrated for the menu.
• Operating and removal drawings, utility requirements and certification evidence.
• Manuals, training, service route, warranty conditions and wear-part availability.
• The accepted output and any additional hand work required to obtain it.

Each required menu family should leave with a clear answer: supported as demonstrated, supported with specified additional work or components, or not established. That is a stronger purchase basis than a general endorsement of a machine brand.
